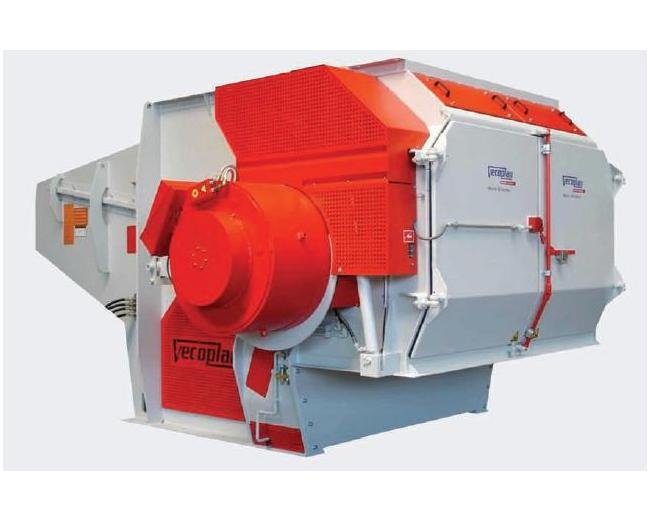

Vecoplan VAZ 2000 RS Single Shaft Shredder
Vecoplan VAZ 2000 RS Single Shaft Shredder
SKU:VAZ-99744b
Vecoplan VAZ 2000 RS Single Shaft Shredder - Efficient, durable, and ISO 9001 compliant for secure shredding in government and institutional settings.
Regular price
$56,999.00
Regular price
Sale price
$56,999.00
Unit price
per
Initiate Order
Vecoplan VAZ 2000 RS Single Shaft Shredder
$56,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 2000 RS Single Shaft Shredder
$56,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan VAZ 2000 RS Single Shaft Shredder is a powerhouse designed for processing a wide range of waste materials, including paper, plastic, wood scraps, and medical waste. With its patented rotor system, multiple tramp metal protections, and 4-way cutting inserts, this shredder offers high efficiency and durability. Equipped with a large infeed hopper, PLC control panel, and robust construction, it ensures reliable performance. Manufactured to ISO 9001 standards, this shredder provides secure and efficient shredding, making it ideal for government, institutional, and commercial applications.
Product Specifications
Hitorc Drive Version 0
Shredder for single-stage shredding with a variable rotor speed of approx. 0 to 360 (410) rpm with the energy saving HiTorc® drive. The automatic speed controller allows the rotor to turn quickly when the materials are easy to shred, and more slowly with more torque when processing tougher materials. Thus, HiTorc™ equipped single-stage shredders enable up to 70 % higher capacity in most applications with energy savings up to 60 %.
Specifications Application
Two re-shredders producing RDF (refuse derived fuel) from manufacturing and commercial waste.
Specifications Approximate Shredding To Particle Size
10 to 250 mm | 3/8 to 10 in
Specifications Capacity
0 to 25 ton
Specifications Cutter Size
140 mm | 40 mm | 60 mm | 80 mm
Specifications Direct Drive Version
Extremely powerful shredder for re-shredding with a constant rotor speed of approximately 410 rpm. Main drive via e-motor, hydraulic coupling and belt drive with electronically monitored sliding hub.
Specifications Energy Savings
0 to 60 %
Specifications Features
4-Way, Indexable Cutting Inserts | 640 mm (25 in) rotor diameter | Capacity up to 25 t | Easy Accessibility | Equity “Buyback” Guarantee | Heavy Spherical Roller Bearings | Heavy-Duty Construction | High Output “Torsion Point” Cutting Rotor | Hydraulic feeding ram | ISO 9001 Manufactured | Large Infeed Hopper | Multiple tramp metal protection | Oversized Drivetrain | PLC Control Panel | Shredding to particle size of approximately 10 to 250 mm (3/8 to 10 in), according to preference | Stress-Free Frame, Robotically Welded | Tramp Metal Protection

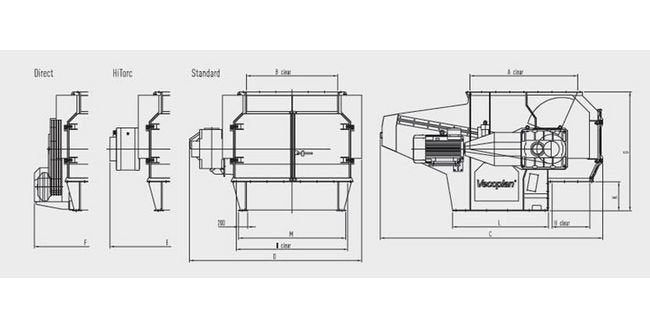

Specifications Infeed Opening Length A
78 in
Specifications Infeed Opening Width B
63 in
Specifications Machine Stand Length L
77 in
Specifications Machine Stand Width M
92 in
Specifications Manufacturing Notes
Detailed dimension drawings and load data available on request.
Specifications Material Outlet Height K
23 in
Specifications Material Outlet Length H
31 in
Specifications Material Outlet Width I
96 in
Specifications Maximum Weight
35,700 lb
Specifications Overall Height G
92 in
Specifications Overall Length C
150 in
Specifications Overall Width With Belt Drive F
135 in
Specifications Overall Width With Hitorc E
145 in
Specifications Patented Rotor System
Profiled rotor with toothed counter knives - a Vecoplan® patent. A choice of 40, 60, 80 or 140 mm cutting crowns or flat cutters. Depending on the size, available with variable number of cutters, from single-row up to four rows.
Specifications Rotor Diameter
25 in | 640 mm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Standard Drive Version
Tried and tested shredder for single-stage shredding with a constant rotor speed of 150 rpm. Main drive via e-motor, cardan shaft, hydraulic coupling and gears.
