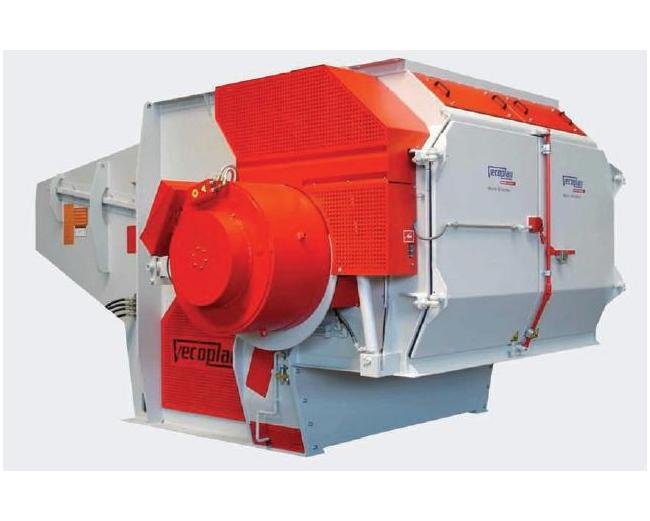

Vecoplan VAZ 2500 [R]M Single Shaft Shredder

Vecoplan VAZ 2500 [R]M Single Shaft Shredder

VAZ-9d986e

Vecoplan VAZ 2500 [R]M Shredder - Patented rotor system, ISO 9001 compliant, high capacity, energy-efficient.

$35,000.00
$35,000.00
Sale

Initiate Order

Vecoplan VAZ 2500 [R]M Single Shaft Shredder

Vecoplan VAZ 2500 [R]M Single Shaft Shredder

$35,000.00

Quantity: 1

Claim Your Seller Account

Vecoplan VAZ 2500 [R]M Single Shaft Shredder

Vecoplan VAZ 2500 [R]M Single Shaft Shredder

$35,000.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Vecoplan VAZ 2500 [R]M Single Shaft Shredder is expertly designed for processing various waste types including domestic waste, large extruder purgings, baled film, wood scrap, and more. Featuring a patented rotor system, large infeed hopper, and tramp metal protection, this shredder ensures efficient and safe operation. With compliance to ISO 9001 standards, this shredder offers a capacity of up to 25 tons and energy savings of up to 60%, making it an ideal solution for alternative fuel production, recycling, and RDF creation.

Product Specifications

Hitorc Drive Version 0
Shredder for single-stage shredding with a variable rotor speed of approx. 0 to 360 (410) rpm with the energy saving HiTorc® drive. The automatic speed controller allows the rotor to turn quickly when the materials are easy to shred, and more slowly with more torque when processing tougher materials. Thus, HiTorc™ equipped single-stage shredders enable up to 70 % higher capacity in most applications with energy savings up to 60 %.
Specifications Application
Two re-shredders producing RDF (refuse derived fuel) from manufacturing and commercial waste.
Specifications Approximate Shredding To Particle Size
10 to 250 mm | 3/8 to 10 in
Specifications Capacity
0 to 25 ton
Specifications Cutter Size
140 mm | 40 mm | 60 mm | 80 mm
Specifications Direct Drive Version
Extremely powerful shredder for re-shredding with a constant rotor speed of approximately 410 rpm. Main drive via e-motor, hydraulic coupling and belt drive with electronically monitored sliding hub.
Specifications Energy Savings
0 to 60 %
Specifications Features
Easy Accessibility Tramp Metal Protection Equity Buyback Guarantee Large Infeed Hopper 4-Way, Indexable Cutting Inserts High Output Torsion Point Cutting Rotor Heavy-Duty Construction Stress-Free Frame, Robotically Welded Oversized Drivetrain Heavy Spherical Roller Bearings PLC Control Panel ISO 9001 Manufactured640 mm (25 in) rotor diameter Shredding to particle size of approximately 10 to 250 mm (3/8 to 10 in), according to preference Capacity up to 25 t Hydraulic feeding ram Multiple tramp metal protection

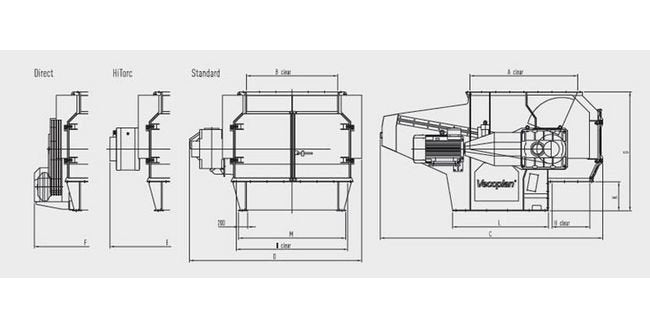

Specifications Infeed Opening Length A
98 in
Specifications Infeed Opening Width B
79 in
Specifications Machine Stand Length L
83 in
Specifications Machine Stand Width M
112 in
Specifications Manufacturing Notes
Detailed dimension drawings and load data available on request.
Specifications Material Outlet Height K
25 in
Specifications Material Outlet Length H
32 in
Specifications Material Outlet Width I
115 in
Specifications Maximum Weight
47,400 lb
Specifications Overall Height G
102 in
Specifications Overall Length C
192 in
Specifications Overall Width With Belt Drive F
158 in
Specifications Overall Width With Gears D
168 in
Specifications Overall Width With Hitorc E
164 in
Specifications Patented Rotor System
Profiled rotor with toothed counter knives - a Vecoplan® patent. A choice of 40, 60, 80 or 140 mm cutting crowns or flat cutters. Depending on the size, available with variable number of cutters, from single-row up to four rows.
Specifications Rotor Diameter
25 in | 640 mm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Standard Drive Version
Tried and tested shredder for single-stage shredding with a constant rotor speed of 150 rpm. Main drive via e-motor, cardan shaft, hydraulic coupling and gears.
