Vecoplan VAZ 800 Series Single Shaft Shredder
Vecoplan VAZ 800 Series Single Shaft Shredder
SKU:VAZ-8d726d
Industrial-grade Vecoplan VAZ 800 Single Shaft Shredder - High performance, low noise, ISO 9001 compliant, lifetime warranty.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
Vecoplan VAZ 800 Series Single Shaft Shredder
$16,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 800 Series Single Shaft Shredder
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

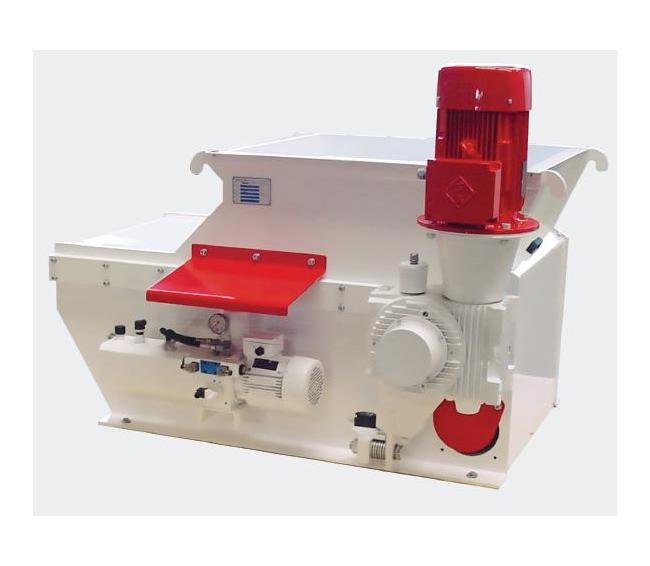

The Vecoplan VAZ 800 Series Single Shaft Shredder is a powerful solution designed for efficient size reduction of challenging industrial materials. With a robust 20 hp drive motor and 10-inch rotor diameter, this shredder delivers high performance while maintaining low noise levels. Equipped with features like 4-Way, Indexable Cutting Inserts, PLC Control Panel, and Precision Hydraulic Process Ram, it ensures precise operation and easy maintenance. Compliant with ISO 9001 standards, it offers durability, efficiency, and a lifetime limited warranty on the cutting rotor.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
20 hp
Specifications Features
4-Way, Indexable Cutting Inserts | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Outboard Spherical Roller Bearings | Heavy-Duty Construction | High Output “Torsion Point” Cutting Rotor | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Stress-Free Frame, Robotically Welded | Tramp Metal Protection
Specifications Feed System Hpspeed
1.5 to 2/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
42 in
Specifications Hopper Opening Width
32 in
Specifications Hopper Volume
1.3 yd³
Specifications Machine Weight
3,100 lb
Specifications Number Of Cutters
20
Specifications Number Of Phase
3
Specifications Options
Abrasion Resistant Screens | Control Integration | Custom Hoppers | Multiple Rotor Configurations | Pneumatic Pick-Up Hoods | Turn-Key Installation with Custom Conveyor Systems Engineering and Material Handling Equipment
Specifications Rotor Diameter
10 in
Specifications Rotor Speed
100 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
