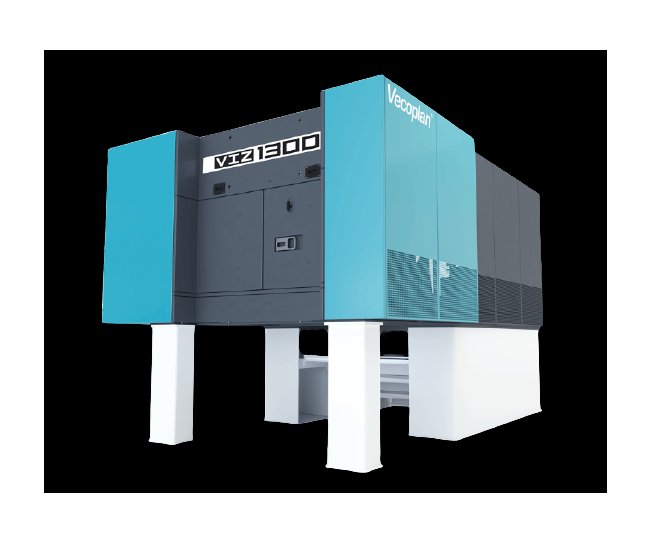

The Vecoplan VIZ Series 66x73 Plastics Shredder is an innovative solution for institutions dealing with diverse materials. Featuring a highly configurable design with a variety of cutter sizes and rotor options, it offers superior efficiency and adaptability. Choose between the patented ESC drive or the powerful HiTorc™ drive for cost-effective operation. With features like slippage detection, low maintenance, and optimized machine construction, this shredder ensures high performance and consistency in output quality.
Product Specifications
Additional Information

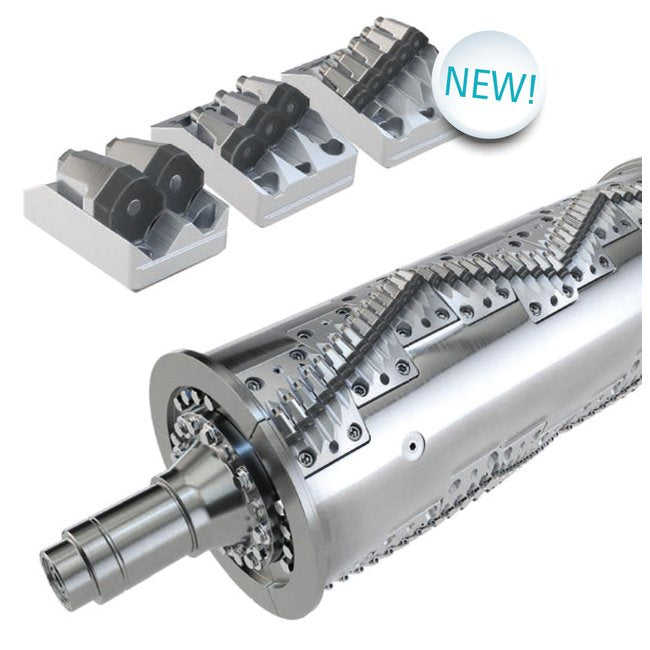

Customize your shredder from A to VIZConfigure the Vecoplan® Infinity shredder to match your requirements. Select between the HiTorc™ drive with its powerful start-up phase and high torque, or the frequency-controlled ESC belt-type direct drive.Transform your changeovers with the W rotorInfinitely adaptable and easier to maintain than ever beforeThe W rotor from Vecoplan® offers numerous advantages in terms of cutting geometry. Bolted tool holder plates with variable cutting tip sizes make rotor changes a thing of the past.Do your output particle requirements often change? With the W rotor, multiple cutters are attached to a removable cutter holder plate. The result is reduced time spent changing cutter size because the rotor remains in the machine. The ergonomic accessibility of the rotor further makes changeovers easier than the traditional method.In the event of a damaged cutter-holder segment, only the relevant segment is replaced instead of having to weld in individual holders or completely changing the rotor.
Infinite Fexibility For Changing Requirements Drive Selection
Either the patented ESC drive ...or the patented HiTorc™ driveCost-effective operationSlippage detection in real timeIntelligent, self-regulating driveLow maintenance and wearSynchronous motor as a direct drive without a mechanical drive trainHighest possible torque at low speedTrouble-free start-up phase, even with a full hopperMaintenance-free and wear-freeRemarkably quiet
Infinite Fexibility For Changing Requirements Optimized Machine
Large shredding chamber for shredding balesOptional subsequent integration of a second counter knifeContoured design for better cleaning and reduced susceptibility to dirt
Infinite Fexibility For Changing Requirements Ram
Improved ram height makes the VIZ suitable for shredding bales and bulky piecesDistance to rotor is minimized, reducing material residuesThe 'pulling' design of the ram hydraulic unit prevents dirt and contamination, saves space and improves accessibility
Infinite Fexibility For Changing Requirements Rotor Selection

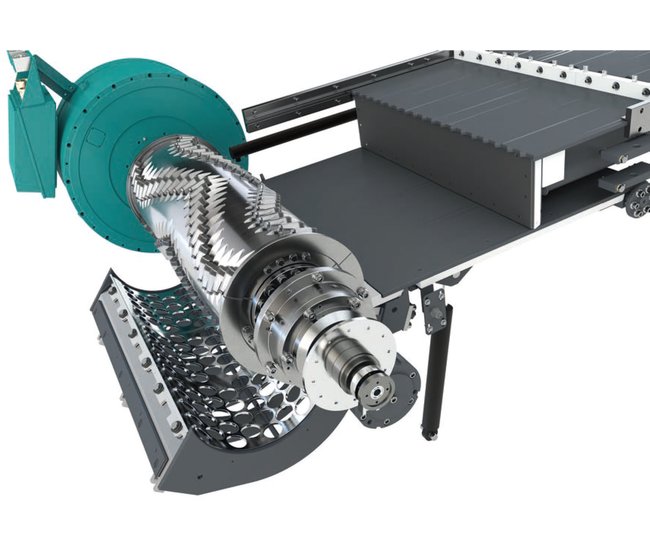

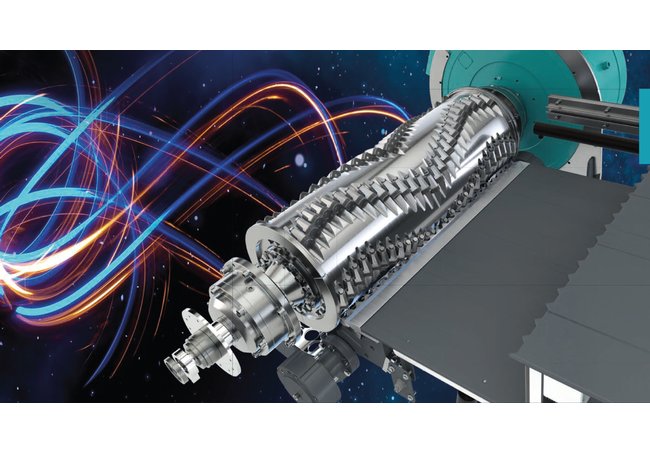

W/V rotorMaximum cutting performance and high throughputHomogeneous output quality with minimum fine dust and little particle varianceVariable number of cutters from single row, triple row up to fivefold (W rotor only) row of cutters depending on cutter sizeOptional bolted tool holders for more flexibility and ease of maintenanceU rotorProfiled with toothed counter knifeVariable number of cutters from single row up to triple row of cutters depending on cutter size
Infinite Fexibility For Changing Requirements Screen
Swing-out, robust screenSimple, quick and safe exchangeabilityAdditional screens available for varying output sizesVariable positioning of the screen segments gives wear parts maximum life
Note
Subject to technical changes. Detailed dimensional drawings and load data available on request. As at: 10/2019
Specifications Cutter Size U Rotor
40 x 40 mm | 60 x 60 mm | 80 x 80 mm
Specifications Cutter Size V Rotor
23 x 23 mm | 40 x 40 mm
Specifications Cutter Size W Rotor
23 x 23 mm | 40 x 40 mm | 60 x 60 mm
Specifications Infeed Opening Length
73 in
Specifications Infeed Opening Width
66 in
Specifications Motor Power Esc Drive
175 hp | 225 hp
Specifications Motor Power Hitorc Drive
200 hp | 225 hp
Specifications Overall Length Esc Drive
163 in
Specifications Overall Length Hitorc Drive
163 in
Specifications Overall Width Esc Drive
99 in
Specifications Overall Width Hitorc Drive
134 in
Specifications Rotor Diameter
20 in
Specifications Rotor Speed
50 to 250 rpm
