Vecoplan VIZ Series 50in x 73in Plastics Shredder
Vecoplan VIZ Series 50in x 73in Plastics Shredder
SKU:VIZ-7f3df6
Configurable Vecoplan VIZ 50x73 Plastics Shredder - HiTorc™ & ESC drives, W rotor for easy maintenance & variable cutter sizes.
Regular price
$75,000.00
Regular price
Sale price
$75,000.00
Unit price
per
Initiate Order
Vecoplan VIZ Series 50in x 73in Plastics Shredder
$75,000.00
Quantity: 1
Claim Your Seller Account
Vecoplan VIZ Series 50in x 73in Plastics Shredder
$75,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

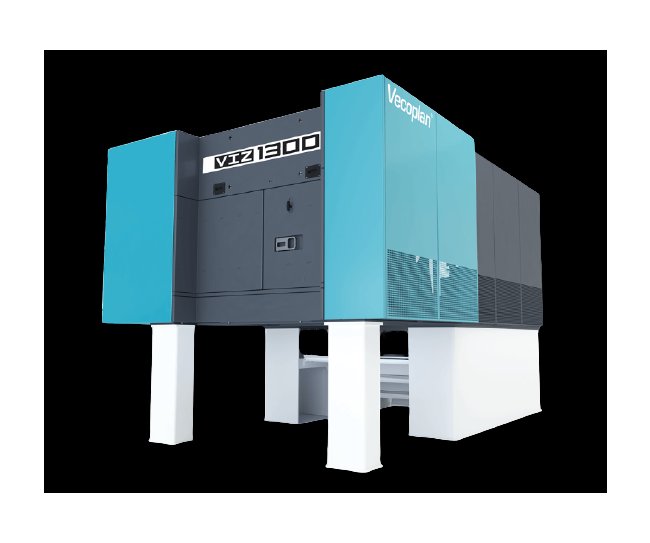

The Vecoplan VIZ Series 50in x 73in Plastics Shredder is a highly configurable machine built to meet the demands of changing materials in industrial settings. Equipped with a choice between the powerful HiTorc™ drive and the ESC drive, this shredder offers variable speed control, foreign object detection, and fast reversing capabilities. The W rotor design simplifies maintenance and cutter size changes, ensuring efficient operations and reduced downtime. With features like real-time slippage detection, low maintenance requirements, and optimized construction, the VIZ Series Shredder delivers outstanding performance and adaptability to diverse shredding needs.
Product Specifications
Additional Information

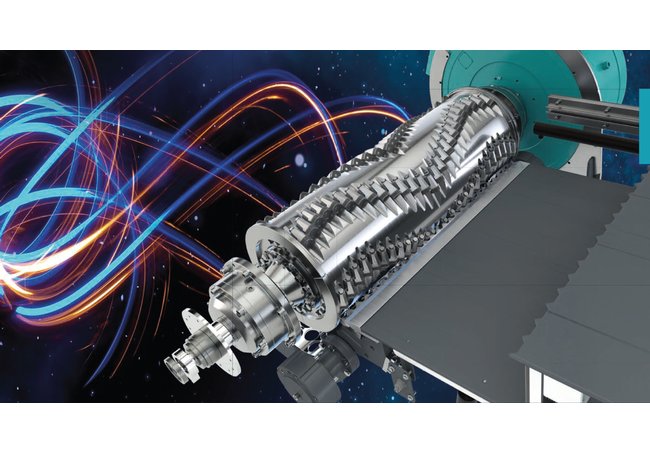

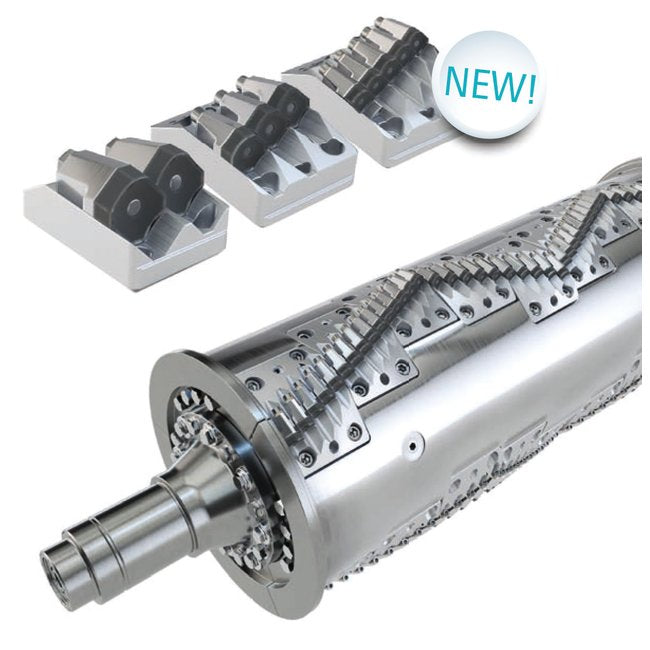

Customize your shredder from A to VIZConfigure the Vecoplan® Infinity shredder to match your requirements. Select between the HiTorc™ drive with its powerful start-up phase and high torque, or the frequency-controlled ESC belt-type direct drive.Transform your changeovers with the W rotorInfinitely adaptable and easier to maintain than ever beforeThe W rotor from Vecoplan® offers numerous advantages in terms of cutting geometry. Bolted tool holder plates with variable cutting tip sizes make rotor changes a thing of the past.Do your output particle requirements often change? With the W rotor, multiple cutters are attached to a removable cutter holder plate. The result is reduced time spent changing cutter size because the rotor remains in the machine. The ergonomic accessibility of the rotor further makes changeovers easier than the traditional method.In the event of a damaged cutter-holder segment, only the relevant segment is replaced instead of having to weld in individual holders or completely changing the rotor.
Infinite Fexibility For Changing Requirements Drive Selection
Either the patented ESC drive ...or the patented HiTorc™ driveCost-effective operationSlippage detection in real timeIntelligent, self-regulating driveLow maintenance and wearSynchronous motor as a direct drive without a mechanical drive trainHighest possible torque at low speedTrouble-free start-up phase, even with a full hopperMaintenance-free and wear-freeRemarkably quiet
Infinite Fexibility For Changing Requirements Optimized Machine
Large shredding chamber for shredding balesOptional subsequent integration of a second counter knifeContoured design for better cleaning and reduced susceptibility to dirt
Infinite Fexibility For Changing Requirements Ram
Improved ram height makes the VIZ suitable for shredding bales and bulky piecesDistance to rotor is minimized, reducing material residuesThe 'pulling' design of the ram hydraulic unit prevents dirt and contamination, saves space and improves accessibility
Infinite Fexibility For Changing Requirements Rotor Selection

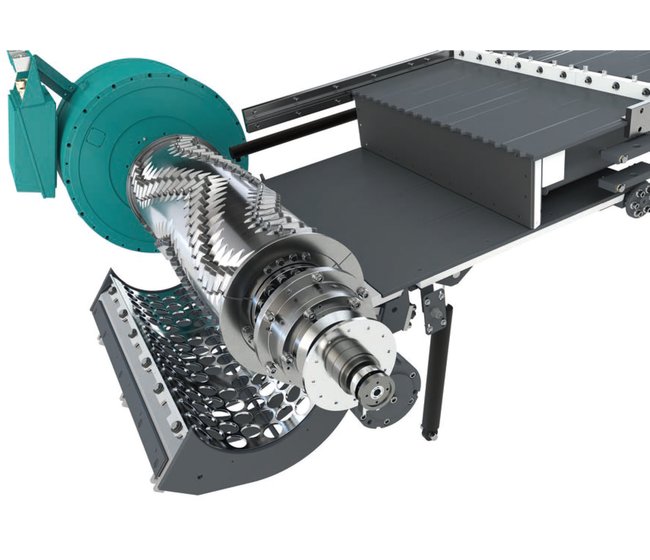

W/V rotorMaximum cutting performance and high throughputHomogeneous output quality with minimum fine dust and little particle varianceVariable number of cutters from single row, triple row up to fivefold (W rotor only) row of cutters depending on cutter sizeOptional bolted tool holders for more flexibility and ease of maintenanceU rotorProfiled with toothed counter knifeVariable number of cutters from single row up to triple row of cutters depending on cutter size
Infinite Fexibility For Changing Requirements Screen
Swing-out, robust screenSimple, quick and safe exchangeabilityAdditional screens available for varying output sizesVariable positioning of the screen segments gives wear parts maximum life
Note
Subject to technical changes. Detailed dimensional drawings and load data available on request. As at: 10/2019
Specifications Cutter Size U Rotor
40 x 40 mm | 60 x 60 mm | 80 x 80 mm
Specifications Cutter Size V Rotor
23 x 23 mm | 40 x 40 mm
Specifications Cutter Size W Rotor
23 x 23 mm | 40 x 40 mm | 60 x 60 mm
Specifications Infeed Opening Length
73 in
Specifications Infeed Opening Width
50 in
Specifications Motor Power Esc Drive
125 hp | 150 hp
Specifications Motor Power Hitorc Drive
200 hp
Specifications Overall Length Esc Drive
163 in
Specifications Overall Length Hitorc Drive
163 in
Specifications Overall Width Esc Drive
99 in
Specifications Overall Width Hitorc Drive
117 in
Specifications Rotor Diameter
20 in
Specifications Rotor Speed
50 to 250 rpm
