Vecoplan VST-32i High-Security Mobile Shredding System
Vecoplan VST-32i High-Security Mobile Shredding System
SKU:MOB-e3ccd2
Optimize document destruction with Vecoplan VST-32i Mobile Shredding System. High security, low noise, and versatile capabilities.
Regular price
$58,999.00
Regular price
Sale price
$58,999.00
Unit price
per
Initiate Order
Vecoplan VST-32i High-Security Mobile Shredding System
$58,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan VST-32i High-Security Mobile Shredding System
$58,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

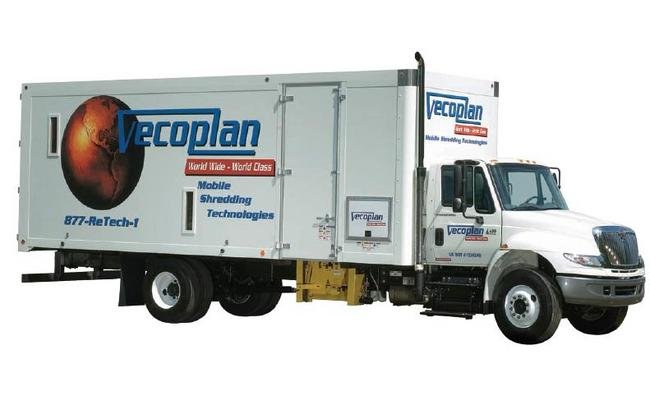

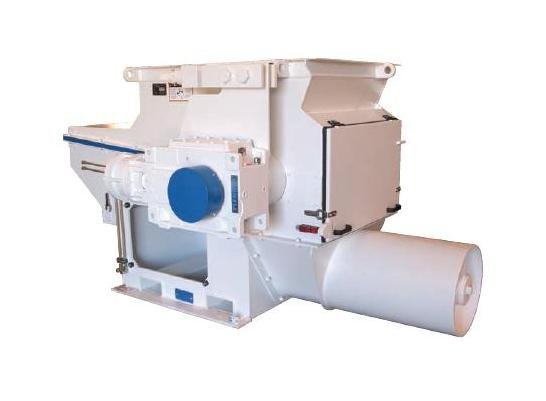

The Vecoplan VST-32i Mobile Shredding System offers unparalleled document and product destruction capabilities for both institutional and commercial applications. Equipped with a Vecoplan Single-Shaft Paper Shredder featuring a cutting-edge TorsionPoint rotor, this system ensures high shredding efficiency, low noise operation, and the ability to handle a wide range of materials, from confidential documents to resilient products like bowling balls. With advanced features such as a precision guidance feed ram, low-speed design, and robust construction, this shredding vehicle guarantees secure and efficient onsite destruction while maintaining compliance with strict industry standards.
Product Specifications
Additional Information 0
Body Constructed of space-age material that is both lightweight and stronger than steel. Securely designed and with room for extra bins.Highest Shredding Efficiency and payload capacity of any other 33000 GVWR shredding vehicle.Latest Design in bin loading. The Lock ‘n’ Load™ Bin Lifter System developed jointly by Vecoplan® and Toter®, Inc. and the EasyAccess™ Loading Enclosure lifts and dumps at curb level without dust or safety issues. The SureTrac™ Gliding Floor payload discharge system makes discharging quick and safe. These developments allow for automatic loading, shredding, compaction and discharge, effortlessly with no manual intervention.Power Generation, for the process equipment, is accomplished by using the latest in PTO-hydraulic components; a simple, powerful and seamless interface.Single-Station, graphic touch screen control console for operation and monitoring of process functions.Absolutely The Most comprehensive and longest warranties in the industry.New laws, confidentiality concerns, awareness of risk management and accountability, enforcement of information security/ID theft laws and corporate desires to prevent illicit sales of their products are ever-increasing. To help capitalize on this business opportunity, Vecoplan®, the innovative leader in advanced off-site shredding systems, now puts the same innovation to work in its Mobile Document and Product Destruction Systems. Learn how Vecoplan®’s On-Site Shredding Vehicle can benefit your operation.
Body 0
Vecoplan® utilizes the latest, most advanced lightweight materials in the fabrication of its custom, DOT-certified bodies which houses the loading, shredding, payload and discharge equipment. Superior strength, puncture resistance and minimal weight qualities of the space-age Transonite® body by Martin Marietta allow for increased payload capacity. Low-friction interior prevents payload discharge jams. Exclusive Lock ‘n Load™ integral “Lift and Dump” bin lifter designed by Toter®, and the EasyAccess™ hinged composite door allow for hassle-free, dust-free, curb-level bin loading. The seamless interface PTO / Hydraulic Power Generation System is sized and fine tuned for most efficient operation of the entire processing system. Shredderto- payload discharge and compaction occurs via rugged, oversized helical conveyor. Proprietary SureTrac™ Gliding Floor unloader discharges the payload quickly and effortlessly. A secure bulkhead separates the shredder compartment from the payload area. HMI master control panel comprised of a single station, graphic touch screen console for operation and monitoring of process functions. Body includes a double door into the shredding compartment opposite bin lifter and viewing windows into payload compartment.
Body Specifications Bin Lifting Device
Fully automatic “Lift and Dump” design compatible with American and European bin standards.
Body Specifications Body Design And Construction
Proprietary. Custom lightweight construction with high-strength qualities and low friction interior. DOT certified.
Body Specifications Controls
Single-station HMI graphic touch screen for monitoring 24 V DC supply. Curb level operation.

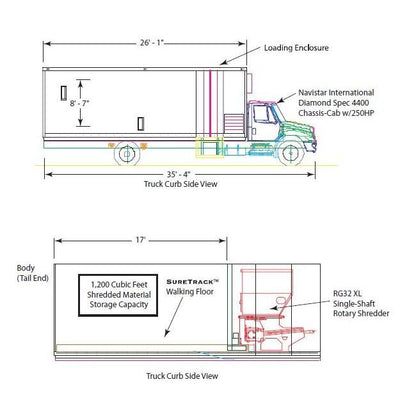

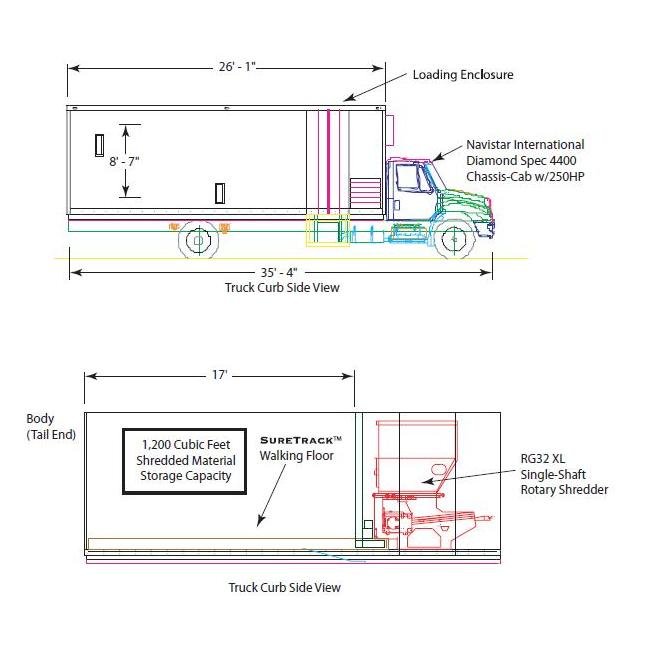

Body Specifications Payload Compartment Capacity
1,200 ft³
Body Specifications Payload Compartment Length
17 ft
Body Specifications Payload Compartment Weight
8,000 to 10,000 lb
Body Specifications Payload Discharge Device
Proprietary, “Live” Gliding Floor “Walks” Material from Payload Compartment.
Body Specifications Power Generationdrive
Continuous-Duty Muncie PTO with interface to Oil Gear Pump package for operation of entire process system.
Body Specifications Security Features
Lockable security compartments and entry into body and cab. Shredding compartment camera, Optional payload compartment camera, optional destruction certificate printout (via Palm).
Body Specifications Shredder Dischargepayload Compaction
14 in Diameter | Custom | High-Torque Helical Conveyor | Rugged
Chassis 0
The International® 4400 delivers leaner service schedules and a stronger, lighter frame rail system that can carry heavier loads. Greater durability and maximum uptime is all about helping drivers and work crews be more efficient. It’s all part of the greater durability and maximum uptime that makes the International brand one of your smartest allies on the road to profit.Designed and built to serve the needs of the owner, driver and maintainer, and at the same time maximize the bottom line of your business. The DuraStar delivers unsurpassed uptime, unmatched reliability, low operating costs and high resale value.The swept-back angle and curved design of the windshield and the sloped hood offer a commanding view of the road with outstanding peripheral vision.World-class fit and finish and improved insulation ensure an exceptionally quiet driver environment.The industry’s most spacious cab measures 72.5 in (184 cm) wide and 56.8 in (144 cm) floor to ceiling with more shoulder room, headroom and torso room to keep drivers of all sizes comfortable.The ergonomically designed interior offers high-back seats with integrated headrests, easy-to-read gauges and easy-to-use controls.Standard top-quality seats with dual armrests. Choose cloth or vinyl seat facings. All deluxe interiors feature a grey base color.The standard overhead console provides ample storage and convenience.Wide door openings and easy-to-grasp interior door handles make entry and egress smooth and easy for greater driver satisfaction and productivity.With International®intuitive Shift™, automatic transmission shift points are matched with engine power curves to deliver smoother shifts and increased responsiveness, reliability and fuel economy.The best-in-class HVAC system provides ample air-conditioning, heating and defrosting flow. Electronic controls make operation easier and provide precise comfort control.
Chassis Specifications Axle To Frame
96 in
Chassis Specifications Brake System
Air Brake ABS (Bendix AntiLock Brake System)
Chassis Specifications Cab
Conventional Steel with Premium Appointments
Chassis Specifications Cab To Axle
186.9 in
Chassis Specifications Calculated Gvwr
33,000
Chassis Specifications Chassis Width
72.5 in | 184 cm
Chassis Specifications Diesel Engine
(International DT466 High Torque) Electro-Hydraulic Fuel System | 300 hp at 2300/2400 rpm | 50 state | 800 lb/ft torque at 1400 rpm
Chassis Specifications Diesel Engine Torque At 1400 Revolutions
800 lb/ft
Chassis Specifications Exhaust System
Frame Mounted | Muffler Guard | Right Side | Single | Vertical 10 in Diameter Muffler
Chassis Specifications Fuel Tank Capacity
70 gal | 265 L
Chassis Specifications Fuel Tank Depth
19 in
Chassis Specifications Fuel Tank Material
Steel
Chassis Specifications Fuel Tank Style
D-Style
Chassis Specifications Fuel Tank Type
Top Drawer
Chassis Specifications International Truck
Diamond SPEC 4400 SBA 4 x 2 (MA035)
Chassis Specifications Number Of Cutting Inserts
40
Chassis Specifications Rear Axle Capacity
21,000 lb
Chassis Specifications Single Rear Axle
(Dana Spicer 21060S) Single Reduction
Chassis Specifications Suspension Vari Rate Capacity
23500 lb

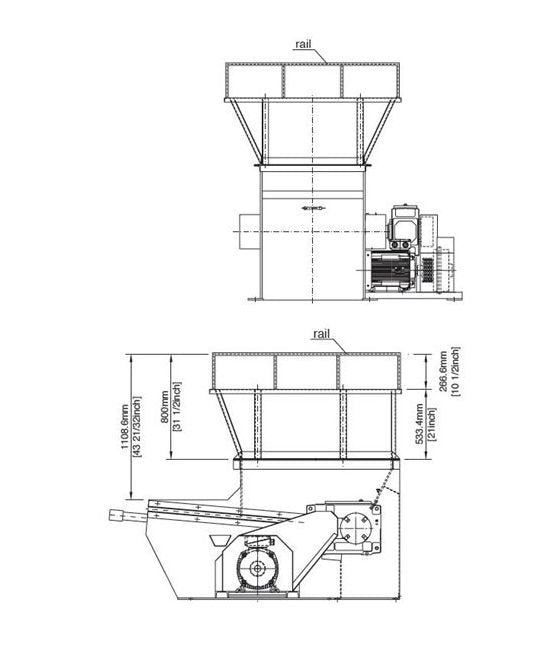

Shredder Specifications Cutting Inserts Size
40 x 40 mm
Shredder Specifications Feed Ram Size
9 x 32 in
Shredder Specifications Infeed Hopper Capacity
Customized to Receive Up to 2 Bins from Bin Lifter | Dependent on Bin Size
Shredder Specifications Rotor Diameter
15 in
Shredder Specifications Shredder Discharge Diameter
14 in
Shredder Specifications Shredder Infeed Opening Width
40 in
Specifications Muffler Diameter
10 in
