Vecoplan VST-42e Mobile Shredding System
Vecoplan VST-42e Mobile Shredding System
SKU:MOB-50bc2f
Achieve secure, quiet, and versatile mobile shredding with the Vecoplan VST-42e system. Official Ford Motors collaboration.
Regular price
$34,999.00
Regular price
Sale price
$34,999.00
Unit price
per
Initiate Order
Vecoplan VST-42e Mobile Shredding System
$34,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan VST-42e Mobile Shredding System
$34,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

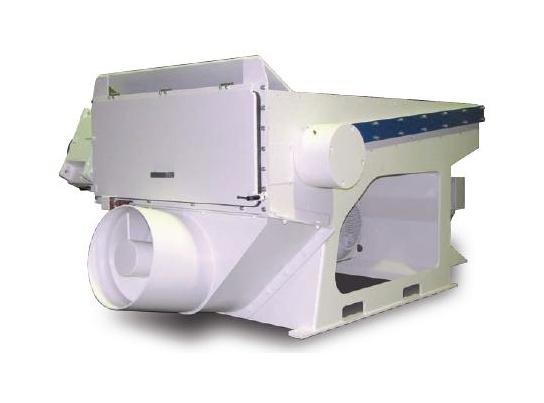

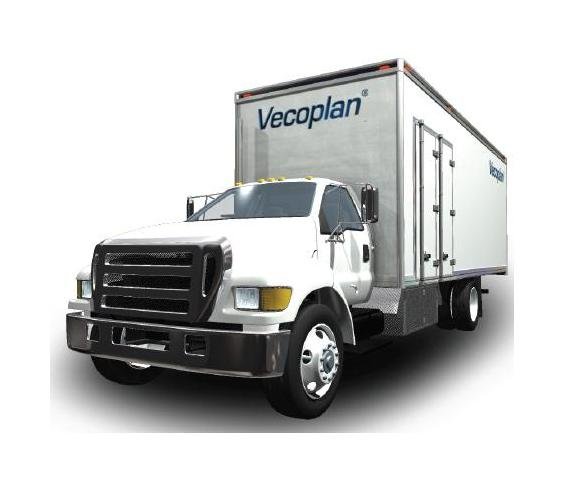

The Vecoplan VST-42e Mobile Shredding System sets the standard for on-the-go data destruction. Featuring a Vecoplan Single-Shaft Paper Shredder with cutting-edge technology for versatile and secure cross-shredding, this system offers low-speed, low-noise operation ensuring compliance with noise and dust pollution regulations. Designed in partnership with Ford Motors, the shred truck chassis is optimized for efficiency and low maintenance, meeting the needs of even the most discerning accounts. With advanced features like the Vecoplan TaskMaster™ Application Management System and secure batch feeding, this mobile shredding system guarantees high-performance shredding of various materials from documents to hard drives.
Product Specifications
Additional Information 0
Cab Ergonomics and engine power are specifically suited for mobile document and product shredding. Many standard features with available options; back-up camera, payload camera, video recording, etcBody Constructed of space-age material that is both lightweight and stronger than steel. Securely designed and with room for extra bins.Highest Shredding Efficiency and payload capacity of any other 33000 GVWR shredding vehicle.Latest Design in bin loading. The Lock ‘n’ Load™ Bin Lifter System developed jointly by Vecoplan® and BPI® and the EasyAccess™ Loading Enclosure lifts and dumps at curb level without dust or safety issues. The SureTrac™ Gliding Floor payload discharge system makes discharging quick and safe. These developments allow for automatic loading, shredding, compaction and discharge, effortlessly with no manual intervention.Single - Station, graphic touch screen control console for operation and monitoring of process functions.Absplutely The Most comprehensive and longest warranties in the industry.
A True Dual Duty Shredding System 0
This advanced electric shredding system is designed for high throughput and dual-use service - on-site mobile and plant based stationary. While deployed in the mobile mode, equipment power is generated through a proprietary, compact PTO-driven generator component, thus eliminating the need for a central hydraulic power system. Vecoplan’s unique, patented QuickLink™ “Plug and Play” Docking Technology option also allows use as a stationary system when docked at, or in, your plant or purge site by shutting off the truck engine and plugging into 3-phase industrial plant power. At current energy and fuel prices, use in the stationary mode costs about 1/2 to 1/4 as much as operating with diesel. This environmentally-friendly electric system operates efficiently and quietly without fear of hydraulic spills and conserves fuel and energy in the process.
Body 0

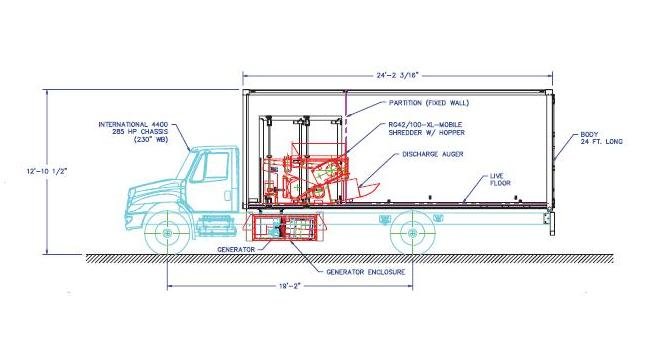

Vecoplan® utilizes the latest, most advanced lightweight materials in the fabrication of its custom, DOT-certified bodies which houses the loading, shredding, payload and discharge equipment. Superior strength, puncture resistance and minimal weight qualities of the space-age composite panel body allows for increased payload capacity. Low-friction interior prevents payload discharge jams. Exclusive Lock ‘n Load™ integral “Lift and Dump” bin lifter designed by BPI® and the Easy Access® hinged composite door allow for hassle-free, dust-free, curb-level bin loading. The seamless interface PTO / Electric Power Generation System is sized and fine tuned for most efficient operation of the entire processing system. Shredder-to-payload discharge and compaction occurs via a rugged, oversized helical conveyor. Proprietary SureTrac™ “live” gliding floor unloader discharges the payload quickly and effortlessly. A secure bulkhead separates the shredder compartment from the payload area, complete with exhaust fan. HMI master control panel comprised of a single station, graphic touch screen console for operation and monitoring of all process functions. Control panel includes event log. Body includes a double door into the shredding compartment opposite bin lifter and a viewing window into payload compartment.
Body Specifications Body Design And Construction
Proprietary. Custom lightweight construction with high-strength qualities superior to steel and low friction interior. DOT certified. High security enclosures, view port, man-door and additional storage included. Gelcoat finish.
Body Specifications Controls
Lockable Single-station HMI graphic touch screen with peripheral electronic, 24 V DC supply, integrated electrical wiring package, Allen-Bradley PLC, secure enclosure with sun shade. Curb level operation.
Body Specifications Feed Enclosure
Hinged composite door with lock covering an inset loading chamber
Body Specifications Payload Compartment Capacity
1,200 ft³
Body Specifications Payload Compartment Length
16 ft
Body Specifications Payload Compartment Weight
8,000 to 10,000 lb
Body Specifications Payload Discharge Device
Proprietary, “Live” Gliding Floor “Walks” Material from Payload Compartment. Composite “slats”. Remote Payload Discharge switch.
Body Specifications Power Generationdrive
Continuous-Duty PTO with interface to a compact 180 kV·A generator package
Body Specifications Security Features
Lockable security enclosures and entry into body and cab, shredding compartment camera system, smoke detector.
Body Specifications Shredder Dischargepayload Compaction
16 in Diameter | Custom | High-Torque Helical Conveyor | Rugged
Body Specifications Universal Cart Lifting Device
Fully automatic enclosed “Lift and Dump” design compatible with American (ANSI) and European (DIN/ISO) bin standards
Chassis 0
The Ford F-750 Super Duty Chassis delivers leaner service schedules and a stronger, lighter frame rail system that can carry heavier loads. Greater durability and maximum uptime is all about helping drivers and work crews be more efficient. It’s all part of the greater durability and maximum uptime that makes the Ford brand one of your smartest allies on the road to profit.Designed and built to serve the needs of the owner, driver and maintainer, and at the same time maximize the bottom line of your business. The F-750 Super Duty Series delivers unsurpassed uptime, unmatched reliability, low operating costs and high resale value.The swept-back angle and curved design of the windshield and the sloped hood offer a commanding view of the road with outstanding peripheral vision. World-class fit and finish and improved insulation ensure an exceptionally quiet driver environment.The spacious cab offers more shoulder room, headroom and torso room to keep drivers of all sizes comfortable.The ergonomically designed interior offers high-back seats with integrated headrests, easy-to-read gauges and easy-to-use controls.Standard top-quality seats with dual armrests. Choose cloth or vinyl seat facings. All deluxe interiors feature a grey base color.The standard overhead console provides ample storage and convenience.Wide door openings and easy-to-grasp interior door handles make entry and egress smooth and easy for greater driver satisfaction and productivity.Allison Transmission™ delivers smoother shifts and increased responsiveness, reliability and fuel economy.The best-in-class HVAC system provides ample air-conditioning, heating and defrosting flow. Electronic controls make operation easier and provide precise comfort control.
Chassis Specifications Axle To Frame
128 in
Chassis Specifications Brake System
Air Brake ABS (Bendix AntiLock Brake System) with Air Dryer
Chassis Specifications Cab
12 VDC Power Outlets | Ashtray | Cloth Headliner | Coat Hooks Located on Right and Left Side | Cruise Control with Steering Wheel Controls | Front Lighter Element(s) Location | Heat Treated Alloy Steel | Interior Lights Include Dome Light with Delay | Manual front windows with light tint | Sun Visors | Vinyl/Rubber Floor Covering
Chassis Specifications Cab To Axle
162.9 in
Chassis Specifications Calculated Gvwr
33,000
Chassis Specifications Diesel Engine
(Cummins 6.7L) ISB 325 hp at 2300 RPM | 120 Volt/750 Watt | 2600 rpm Governed Speed | 325 Peak hp (Maximum) | 750 lb./ft. Torque at 1800 rpm | Engine block heater | Phillips
Chassis Specifications Exhaust System
Diesel Particulate Filter Assembly | Frame Mounted Right Side Under Cab | Horizontal | Includes Vertical Tail Pipe and Guard | SCR Assembly | Single | Single Horizontal
Chassis Specifications Ford
F-750 Regular Cab XL (F7F)
Chassis Specifications Front Axle
(Meritor MFS-13-122A) 13200-lb Capacity Non-Driving
Chassis Specifications Front Axle Capacity
13,200 lb
Chassis Specifications Fuel Tank
Mounted Left Side, Under Cab.
Chassis Specifications Fuel Tank Capacity
50 gal | 189 L
Chassis Specifications Fuel Tank Depth
16 in
Chassis Specifications Fuel Tank Material
Steel
Chassis Specifications Fuel Tank Style
D-Style
Chassis Specifications Rear Axle Capacity
21,000 lb
Chassis Specifications Rear Suspension Ride Height
9.25 in

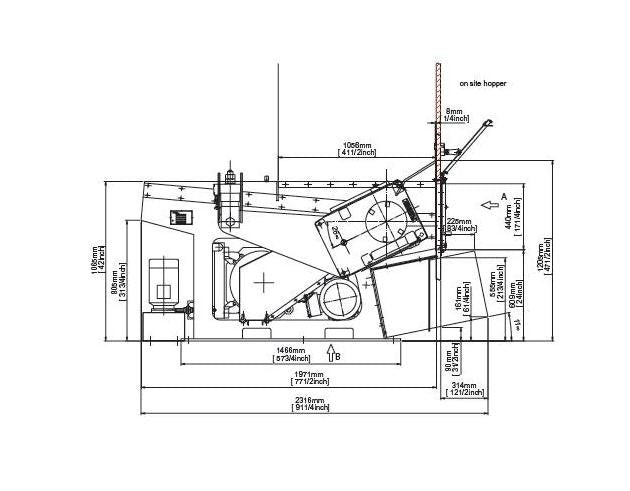

Shredder Specifications Cutting Inserts Size
40 x 40 mm
Shredder Specifications Feed Ram Size
5 x 42 in
Shredder Specifications Infeed Hopper Capacity
Customized to receive up to 2 bins from bin lifter, dependent on bin size and fill level
Shredder Specifications Rotor Diameter
15 in
Shredder Specifications Shredder Discharge Diameter
16 in
Shredder Specifications Shredder Infeed Opening Width
41 in
Specifications Generator Voltage
180 kV·A
