Vecoplan VTH 35/8/2 VU Horizontal Waste Shredder
Vecoplan VTH 35/8/2 VU Horizontal Waste Shredder
SKU:HOR-1566f2
Vecoplan VTH 35/8/2 VU Horizontal Shredder: High-performance wood and plastic waste shredder with 12-inch rotor, ISO 9001 manufacturing, and 2 st/hr capacity.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
Vecoplan VTH 35/8/2 VU Horizontal Waste Shredder
$18,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan VTH 35/8/2 VU Horizontal Waste Shredder
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

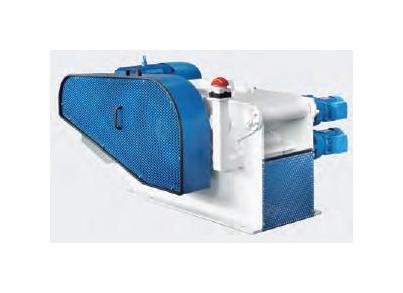

The Vecoplan® VTH 35/8/2 VU Horizontal Waste Shredder is a robust solution engineered to handle a wide range of lineal wood and plastic scraps efficiently. With a 14-inch by 3.5-inch infeed opening and a 16-ft vibratory conveyor, this shredder processes wood strips, PVC siding, plastic lumber, and more. Equipped with a 12-inch rotor, 30-40 hp motor power, and 2 st/hr maximum capacity, it ensures high performance and reliability. Featuring ISO 9001 manufacturing standards, 4-Way cutting inserts, and a Lifetime Limited Warranty on the cutting rotor, this shredder offers durability, accessibility, and cutting-edge technology for industrial applications.
Product Specifications
Additional Information 0
The VTH-VU Series™ Horizontal Shredders are available with optional cutting rotor designs. These shredder models are also available with a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. If a larger and rougher particle size is acceptable, the VTH-VU Series™ models are supplied with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-VU Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.The feed rate is determined by the amperage load that processing places on the cutting rotor, which in turn sends a signal to both the conveyor and the feed rollers for adjustment of the feed rate. Particle size, or chip size, is determined by changeable sizing screens similar to Vecoplan’s vertical shredders.
Specifications Approximate Rotor Speed
390 rpm
Specifications Approximate Weight
1,962 lb
Specifications Features
4-Way, Indexable Cutting Inserts | Easy Accessibility | Equity “Buyback” Guarantee | Heavy Spherical Roller Bearings | High Output “Torsion Point” Cutting Rotor | ISO 9001 Manufactured | Lifetime Limited Warranty on Cutting Rotor | Low to Medium Speed / High Torque Design | Oversized Drivetrain | Powerbelt Rotor Drive | Severe Duty Construction
Specifications Infeed Opening Length
14 in
Specifications Infeed Opening Width
3.5 in
Specifications Maximum Capacity
2 st/h
Specifications Number Of Infeed Rollers
2
Specifications Number Of Tools
12
Specifications Required Motor Power
30 to 40 hp
Specifications Rotor Diameter
12 in
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Vibratory Conveyor Length
16 ft
