Vecoplan VTH Series 2 Horizontal Drum Chipper
Vecoplan VTH Series 2 Horizontal Drum Chipper
SKU:HOR-7f7c97
Produce high-quality wood chips efficiently with the Vecoplan VTH Series 2 Horizontal Drum Chipper, ideal for timber and wood processing.
Regular price
$16,599.99
Regular price
Sale price
$16,599.99
Unit price
per
Initiate Order
Vecoplan VTH Series 2 Horizontal Drum Chipper
$16,599.99
Quantity: 1
Claim Your Seller Account
Vecoplan VTH Series 2 Horizontal Drum Chipper
$16,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

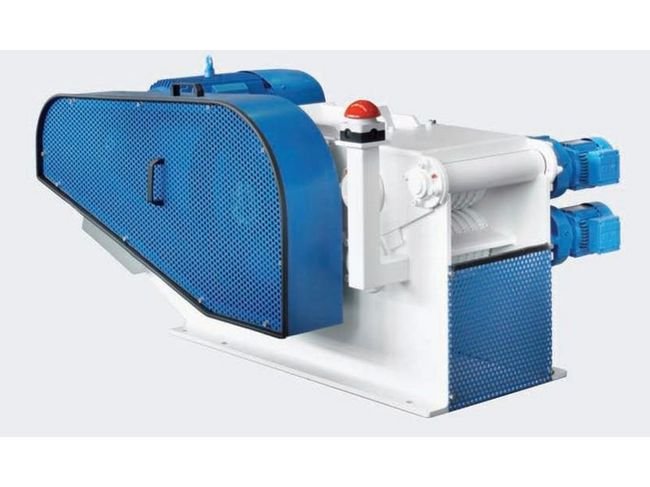

The Vecoplan VTH Series 2 Horizontal Drum Chipper is a robust industrial solution for producing high-quality wood chips from waste wood in the timber and wood processing industry. With a maximum capacity of 2 st/hr and a range of cutting options, including the patented TorsionPoint™ “U”-Rotor™, this chipper offers precise chipping lengths from 0.125 to 1.25 inches. Its durable design ensures low maintenance and high performance, making it a cost-effective addition to sawmills and wood recycling facilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Many of the VTH-Series™ Drum Chippers are available with optional cutting rotor designs. If a larger and rougher particle size is acceptable, many of the VTH-Series™ models are available with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. The standard cutting rotor design is a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.While often used in wood recycling, referring to the Vecoplan® VTH Series Drum Chipper as just a “wood recycle machine” is a misnomer, in that a powerful drum chipper is equal to other machines in a plant’s production system. Used directly in the production line in sawmills for evacuation and wood waste recycling, the Vecoplan® VTH Series Drum Chippers produce high quality chips for the production of chipboard, paper, wood pulp, and fuel. In short - a large capacity wood chipper produces revenue.
Manufacturing Notes 0
Chipping Length, Maximum Capacity: Depending on input material and chipping lengthAlso available with cutting crown rotor
Specifications Chipping Length
0.125 to 1.25 in
Specifications Infeed Opening Length
12 in
Specifications Infeed Opening Width
3 in
Specifications Maximum Capacity
2 st/h
Specifications Number Of Infeed Rollers
2
Specifications Number Of Tools
2
Specifications Required Motor Power
30 to 40 hp
Specifications Rotor Diameter
12 mm
Specifications Rotor Speed
670 to 2100 rpm
Specifications Weight
1,962 lb
