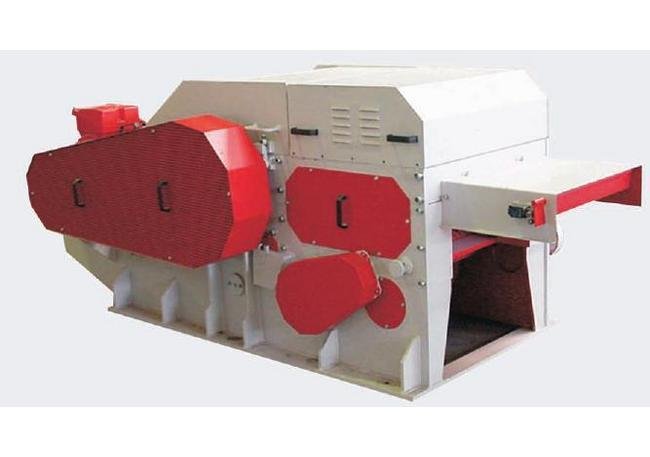

Vecoplan VTH Series 23 st/hr Horizontal Drum Chipper
Vecoplan VTH Series 23 st/hr Horizontal Drum Chipper
SKU:HOR-e2730b
Efficient Vecoplan VTH Series 23 st/hr Chipper for high-quality wood chip production in sawmills, furniture factories, and planing mills.
Regular price
$7,899.00
Regular price
Sale price
$7,899.00
Unit price
per
Initiate Order
Vecoplan VTH Series 23 st/hr Horizontal Drum Chipper
$7,899.00
Quantity: 1
Claim Your Seller Account
Vecoplan VTH Series 23 st/hr Horizontal Drum Chipper
$7,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan VTH Series 23 st/hr Horizontal Drum Chipper is a robust wood chipping solution designed for sawmills, furniture factories, and planing mills. With an infeed opening of 22 inches by 8 inches, this chipper offers a maximum capacity of 23 st/hr, driven by a 60 to 100 hp motor. The rotor speed ranges from 730 to 930 rpm, ensuring efficient chipping performance. Optional cutting rotor designs cater to varying chip sizes, providing flexibility for different production needs. Vecoplan's decades of expertise in wood processing guarantee high-quality chips for chipboard, paper, wood pulp, and fuel production.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Many of the VTH-Series™ Drum Chippers are available with optional cutting rotor designs. If a larger and rougher particle size is acceptable, many of the VTH-Series™ models are available with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. The standard cutting rotor design is a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.While often used in wood recycling, referring to the Vecoplan® VTH Series Drum Chipper as just a “wood recycle machine” is a misnomer, in that a powerful drum chipper is equal to other machines in a plant’s production system. Used directly in the production line in sawmills for evacuation and wood waste recycling, the Vecoplan® VTH Series Drum Chippers produce high quality chips for the production of chipboard, paper, wood pulp, and fuel. In short - a large capacity wood chipper produces revenue.
Manufacturing Notes 0
Chipping Length, Maximum Capacity: Depending on input material and chipping length.
Specifications Chipping Length
0.125 to 1.25 in
Specifications Infeed Opening Length
22 in
Specifications Infeed Opening Width
8 in
Specifications Maximum Capacity
23 st/h
Specifications Number Of Infeed Rollers
3
Specifications Number Of Tools
2 to 4
Specifications Required Motor Power
60 to 100 hp
Specifications Rotor Diameter
25 in
Specifications Rotor Speed
730 to 930 rpm
Specifications Weight
7,700 lb
