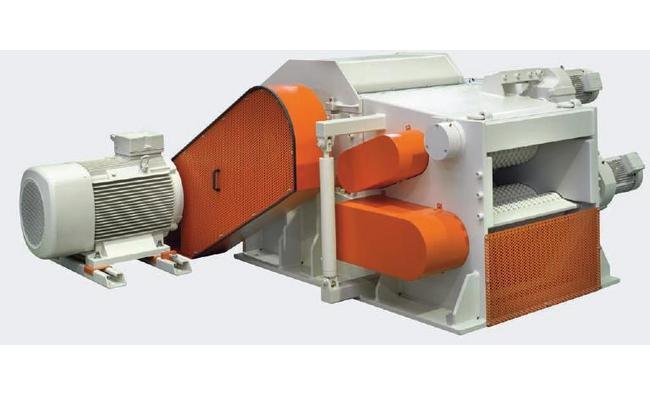

Vecoplan VTH Series 28 st/hr Horizontal Drum Chipper
Vecoplan VTH Series 28 st/hr Horizontal Drum Chipper
SKU:HOR-3906ea
Vecoplan VTH Series 28 st/hr Horizontal Drum Chipper - High-performance machine for premium wood chip production.
Regular price
$78,999.00
Regular price
Sale price
$78,999.00
Unit price
per
Initiate Order
Vecoplan VTH Series 28 st/hr Horizontal Drum Chipper
$78,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan VTH Series 28 st/hr Horizontal Drum Chipper
$78,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan VTH Series 28 st/hr Horizontal Drum Chipper is a high-performance machine designed for the efficient production of premium wood chips from waste wood in timber sizing and processing industries. Featuring a robust construction, this chipper boasts an infeed opening of 25" x 10", 5 infeed rollers, and a durable rotor with a diameter of 25". With a chipping length range of 0.25 to 1.125 inches and a maximum capacity of 28 st/hr, this chipper is powered by a 100 to 150 hp motor. Its innovative design ensures low maintenance, durability, and exceptional performance, making it a cost-effective solution for wood recycling, sawmill operations, and other wood processing applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Many of the VTH-Series™ Drum Chippers are available with optional cutting rotor designs. If a larger and rougher particle size is acceptable, many of the VTH-Series™ models are available with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. The standard cutting rotor design is a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.While often used in wood recycling, referring to the Vecoplan® VTH Series Drum Chipper as just a “wood recycle machine” is a misnomer, in that a powerful drum chipper is equal to other machines in a plant’s production system. Used directly in the production line in sawmills for evacuation and wood waste recycling, the Vecoplan® VTH Series Drum Chippers produce high quality chips for the production of chipboard, paper, wood pulp, and fuel. In short - a large capacity wood chipper produces revenue.
Manufacturing Notes 0
Chipping Length, Maximum Capacity: Depending on input material and chipping length.
Specifications Chipping Length
0.25 to 1.125 in
Specifications Infeed Opening Length
25 in
Specifications Infeed Opening Width
10 in
Specifications Maximum Capacity
28 st/h
Specifications Number Of Infeed Rollers
5
Specifications Number Of Tools
2 to 4
Specifications Required Motor Power
100 to 150 hp
Specifications Rotor Diameter
25 in
Specifications Rotor Speed
650 to 820 rpm
Specifications Weight
12,550 lb
