Vecoplan VTH Series 30 st/hr Horizontal Drum Chipper
Vecoplan VTH Series 30 st/hr Horizontal Drum Chipper
SKU:HOR-ddbced
Vecoplan VTH Series 30 st/hr Horizontal Drum Chipper - High-performance wood chip production - 30 stere/hour capacity - Vecoplan® precision granulator rotor
Regular price
$38,000.00
Regular price
Sale price
$38,000.00
Unit price
per
Initiate Order
Vecoplan VTH Series 30 st/hr Horizontal Drum Chipper
$38,000.00
Quantity: 1
Claim Your Seller Account
Vecoplan VTH Series 30 st/hr Horizontal Drum Chipper
$38,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

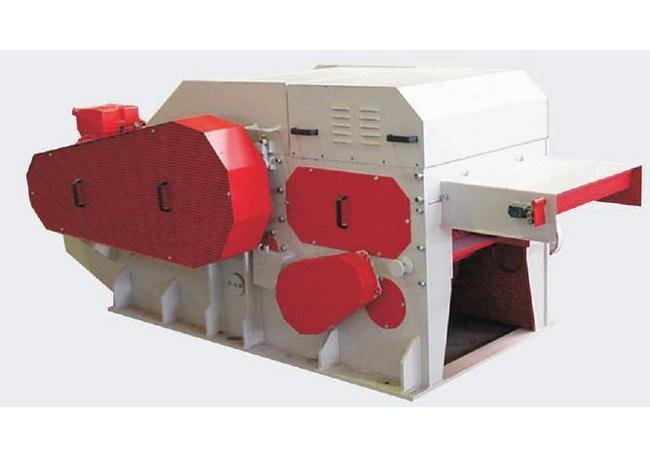

The Vecoplan VTH Series 30 st/hr Horizontal Drum Chipper is a high-performance wood chip production machine designed for sawmills, furniture factories, and planing mills. With a maximum capacity of 30 stere/hour, this chipper features Vecoplan® precision granulator rotor technology with 2 to 4 knives, offering chipping lengths from 0.125 to 1.25 inches. The rugged design ensures durability, low maintenance, and exceptional performance, making it a vital asset in wood recycling and production industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Many of the VTH-Series™ Drum Chippers are available with optional cutting rotor designs. If a larger and rougher particle size is acceptable, many of the VTH-Series™ models are available with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. The standard cutting rotor design is a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.While often used in wood recycling, referring to the Vecoplan® VTH Series Drum Chipper as just a “wood recycle machine” is a misnomer, in that a powerful drum chipper is equal to other machines in a plant’s production system. Used directly in the production line in sawmills for evacuation and wood waste recycling, the Vecoplan® VTH Series Drum Chippers produce high quality chips for the production of chipboard, paper, wood pulp, and fuel. In short - a large capacity wood chipper produces revenue.
Manufacturing Notes 0
Chipping Length, Maximum Capacity: Depending on input material and chipping length.
Specifications Chipping Length
0.125 to 1.25 in
Specifications Infeed Opening Length
33 in
Specifications Infeed Opening Width
8 in
Specifications Maximum Capacity
30 st/h
Specifications Number Of Infeed Rollers
3
Specifications Number Of Tools
2 to 4
Specifications Required Motor Power
75 to 120 hp
Specifications Rotor Diameter
25 in
Specifications Rotor Speed
730 to 930 rpm
Specifications Weight
12,550 lb
