Vecoplan VTH Series Horizontal Drum Chipper
Vecoplan VTH Series Horizontal Drum Chipper
SKU:HOR-298e66
Vecoplan VTH Series Horizontal Drum Chipper - High-capacity chipper for wood industry & biomass power plants.
Regular price
$89,999.00
Regular price
Sale price
$89,999.00
Unit price
per
Initiate Order
Vecoplan VTH Series Horizontal Drum Chipper
$89,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan VTH Series Horizontal Drum Chipper
$89,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

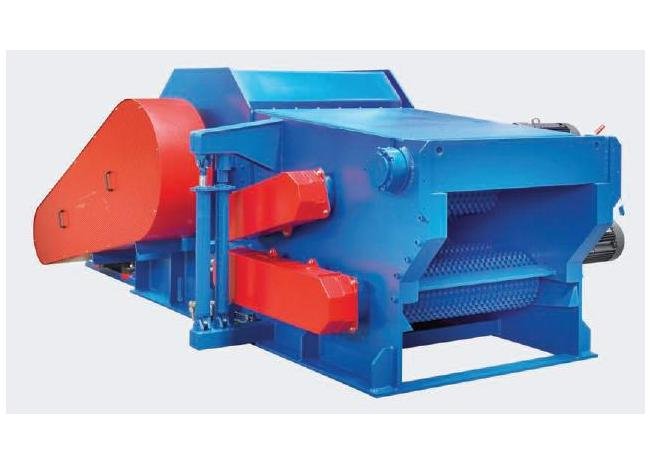

The Vecoplan VTH Series Horizontal Drum Chipper is an industry-leading solution for sawmills, chipboard, paper, and biomass power plants. Featuring a solid construction with Vecoplan® precision granulator or drum chipper rotor designs, this chipper offers a chipping length of 0.25 to 1.125 inches and a maximum capacity of 16 to 45 st/hr. With a rotor diameter of 40 inches and a weight of 22,000 lb, it requires a motor power of 150 to 275 hp, operating at 600 rpm. Vecoplan®'s innovative technology ensures high-quality wood chip production, low maintenance, and exceptional performance, making it a valuable asset for wood recycling and energy wood chip production.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Many of the VTH-Series™ Drum Chippers are available with optional cutting rotor designs. If a larger and rougher particle size is acceptable, many of the VTH-Series™ models are available with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. The standard cutting rotor design is a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.While often used in wood recycling, referring to the Vecoplan® VTH Series Drum Chipper as just a “wood recycle machine” is a misnomer, in that a powerful drum chipper is equal to other machines in a plant’s production system. Used directly in the production line in sawmills for evacuation and wood waste recycling, the Vecoplan® VTH Series Drum Chippers produce high quality chips for the production of chipboard, paper, wood pulp, and fuel. In short - a large capacity wood chipper produces revenue.
Manufacturing Notes 0
Chipping Length, Maximum Capacity: Depending on input material and chipping length.
Specifications Chipping Length
0.25 to 1.125 in
Specifications Infeed Opening Length
30 in
Specifications Infeed Opening Width
12 in
Specifications Maximum Capacity
16 to 45 st/h
Specifications Number Of Infeed Rollers
7
Specifications Number Of Tools
2 to 4
Specifications Required Motor Power
150 to 275 hp
Specifications Rotor Diameter
40 in
Specifications Rotor Speed
600 rpm
Specifications Weight
22,000 lb
