Vecoplan VTH Series Horizontal Drum Chipper - 120 st/hr Capacity
Vecoplan VTH Series Horizontal Drum Chipper - 120 st/hr Capacity
SKU:HOR-887797
Vecoplan VTH Series Horizontal Drum Chipper - High-capacity industrial solution for premium wood chip production.
Regular price
$25,000.00
Regular price
Sale price
$25,000.00
Unit price
per
Initiate Order
Vecoplan VTH Series Horizontal Drum Chipper - 120 st/hr Capacity
$25,000.00
Quantity: 1
Claim Your Seller Account
Vecoplan VTH Series Horizontal Drum Chipper - 120 st/hr Capacity
$25,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

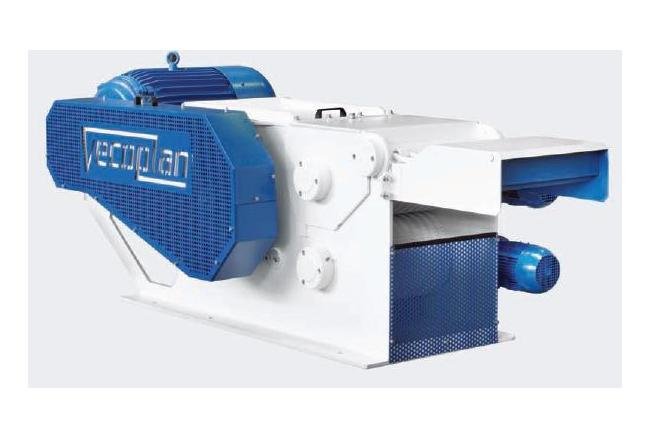

The Vecoplan VTH Series 120 st/hr Horizontal Drum Chipper is an industry-leading solution for the chipboard, paper, and biomass sectors. With a robust design, precision granulator rotor, and variable knife configurations, it offers exceptional chipping efficiency. Vecoplan's TorsionPoint™ “U”-Rotor™ provides versatility in particle sizes. This chipper delivers high-quality wood chips for various applications, ensuring revenue generation and operational excellence.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Many of the VTH-Series™ Drum Chippers are available with optional cutting rotor designs. If a larger and rougher particle size is acceptable, many of the VTH-Series™ models are available with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. The standard cutting rotor design is a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.While often used in wood recycling, referring to the Vecoplan® VTH Series Drum Chipper as just a “wood recycle machine” is a misnomer, in that a powerful drum chipper is equal to other machines in a plant’s production system. Used directly in the production line in sawmills for evacuation and wood waste recycling, the Vecoplan® VTH Series Drum Chippers produce high quality chips for the production of chipboard, paper, wood pulp, and fuel. In short - a large capacity wood chipper produces revenue.
Specifications Approximate Rotor Speed
350 rpm
Specifications Chipping Length
1 in
Specifications Infeed Opening Length
33 in
Specifications Infeed Opening Width
18 in
Specifications Maximum Capacity
120 st/h
Specifications Number Of Infeed Rollers
11
Specifications Number Of Tools
2 to 4
Specifications Required Motor Power
675 to 1000 hp
Specifications Rotor Diameter
63 in
Specifications Weight
55,100 lb
