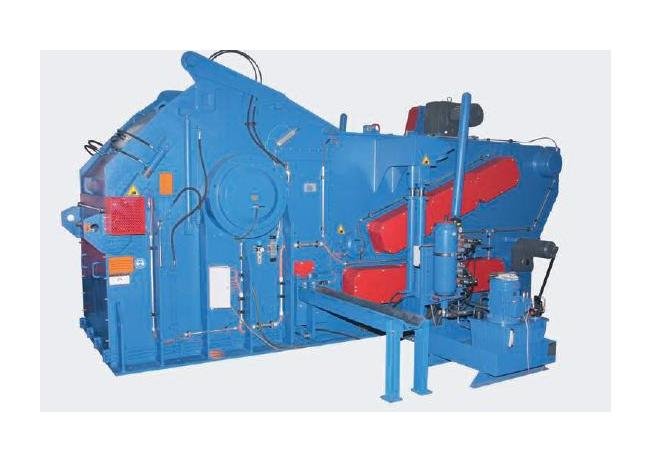

Vecoplan VTH Series Horizontal Drum Chipper, 200-400 st/hr
Vecoplan VTH Series Horizontal Drum Chipper, 200-400 st/hr
SKU:HOR-53c707
Vecoplan VTH Series Horizontal Drum Chipper - Powerful, Efficient, High-Quality Chips
Regular price
$185,000.00
Regular price
Sale price
$185,000.00
Unit price
per
Initiate Order
Vecoplan VTH Series Horizontal Drum Chipper, 200-400 st/hr
$185,000.00
Quantity: 1
Claim Your Seller Account
Vecoplan VTH Series Horizontal Drum Chipper, 200-400 st/hr
$185,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan VTH Series Horizontal Drum Chipper is a powerhouse designed for the chipboard, paper, and biomass industries. With a capacity of 200 to 400 st/hr, this chipper boasts a robust construction featuring a 57-inch infeed opening, 80 infeed rollers, and a precision granulator rotor with 3 to 4 knives. It offers reliable performance, low maintenance, and the flexibility of optional cutting rotor designs. Ideal for producing high-quality wood chips for energy recovery, paper production, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Many of the VTH-Series™ Drum Chippers are available with optional cutting rotor designs. If a larger and rougher particle size is acceptable, many of the VTH-Series™ models are available with the patented TorsionPoint™ “U”-Rotor™. Vecoplan® has used this rotor in its vertical shredders since 1983 and is the preferred shredding method used in industry today. The standard cutting rotor design is a precision granulator or drum chipper rotor in 2 to 4-knife configurations in a moderately open design. The knife rotor turns at moderate RPM and utilizes sharp knives similar to conventional granulator or chipper blades. A unique clamping system secures the knives in place and affords many sharpening intervals. When a small and uniform granulate or chip is needed, the knife rotor is suggested. In the wood industry, Vecoplan® has been producing high quality drum chippers since 1969.While durability and extremely low maintenance are highly valuable benefits of the VTH-Series™, they pale in comparison to the performance it delivers. The unique design and resulting efficiencies contribute to both a lower purchase price and lower subsequent operating costs.While often used in wood recycling, referring to the Vecoplan® VTH Series Drum Chipper as just a “wood recycle machine” is a misnomer, in that a powerful drum chipper is equal to other machines in a plant’s production system. Used directly in the production line in sawmills for evacuation and wood waste recycling, the Vecoplan® VTH Series Drum Chippers produce high quality chips for the production of chipboard, paper, wood pulp, and fuel. In short - a large capacity wood chipper produces revenue.
Manufacturing Notes 0
Capacity: Depending on input material and chipping length
Specifications Approximate Rotor Speed
300 rpm
Specifications Capacity
200 to 400 st/h
Specifications Chipping Length
0.75 to 1.5 in
Specifications Infeed Opening Length
57 in
Specifications Infeed Opening Width
34 in
Specifications Number Of Infeed Rollers
80
Specifications Number Of Tools
3 to 4
Specifications Required Motor Power
1350 to 2000 hp
Specifications Rotor Diameter
2000 in
Specifications Weight
121,250 lb
