Vecoplan VVZ Series Hurricane™ Large Waste Shredder
Vecoplan VVZ Series Hurricane™ Large Waste Shredder
SKU:HUR-ccaede
Vecoplan VVZ Series Hurricane™ Large Waste Shredder: High-performance dual-shaft shredder for heavy industrial recycling needs.
Regular price
$75,000.00
Regular price
Sale price
$75,000.00
Unit price
per
Initiate Order
Vecoplan VVZ Series Hurricane™ Large Waste Shredder
$75,000.00
Quantity: 1
Claim Your Seller Account
Vecoplan VVZ Series Hurricane™ Large Waste Shredder
$75,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

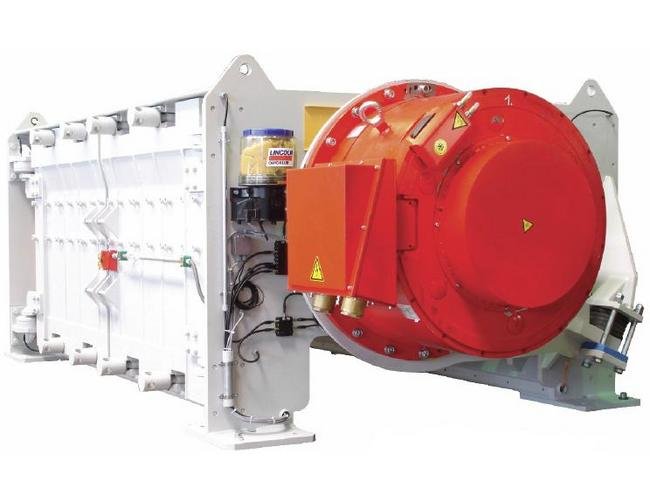

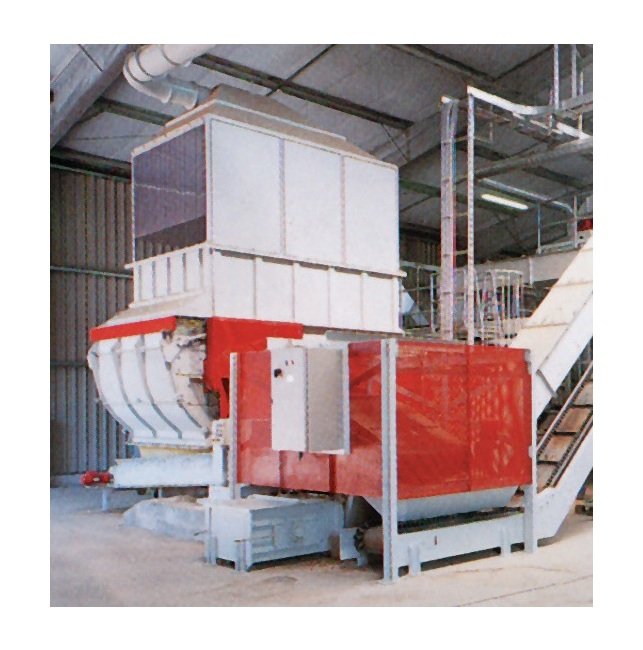

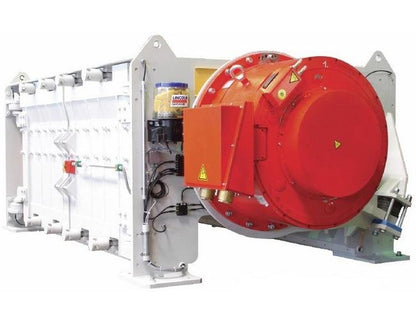

The Vecoplan VVZ Series Hurricane™ Large Waste Shredder is a robust solution for heavy industrial material processing and recycling. With a 67 x 98 inch infeed opening and dual shafts, this shredder offers exceptional efficiency and performance. Featuring a 300 hp drive power, 2 rotors, and unique replaceable cutter design, it ensures high throughput and easy maintenance. Vecoplan's ISO 9001 quality assurance and integrated sizing grates for shred size control make it a reliable choice for waste industry applications.
Product Specifications

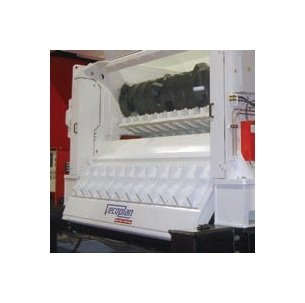

Access Doors
Vecoplan®'s unique design allows for easy access to the cutting chamber for removal of foreign material via dual access doors, or shutters, which are hydraulically operated. Electrical and mechanical interlocks insure maximum safety. Foreign material can be removed with a full hopper, eliminating the need to empty the hopper to clear the foreign material. The doors also allow direct access to wear items, reducing downtime and maintenance costs.
Additional Information
In addition to its RDF prep systems, Vecoplan® has the unique advantage of extensive shredding experience in most recycling, alternative energy and destruction applications found within our collected waste streams. Some of these applications include unsorted MSW processing, transfer stations, MRFs, multi-material and Single Stream Recycling, biomass, compost, wood waste from industry, C&D, plastics, paper, electronics and many specialized waste streams. From municipalities and cruise ships to Fortune 500 companies and entire industries - shredding is Vecoplan®'s specialty! From unique and proven shredding designs to award-winning developments in ferrous, non-ferrous, density and size separation and classification technologies, Vecoplan® offers the most suitable systems available.

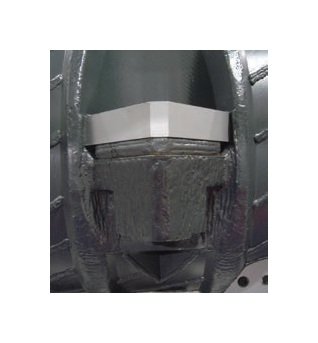

Counter Knife
Hurricane™ Shredders feature a counter knife positioned in-between the dual cutting rotors and bolted to the bed of the cutting chamber. The cutters on both rotors mesh precisely with the sharp serrated edges of the counter knife. This provides a smaller, much more consistent shredded particle size than traditional shredding. It also provides quick and easy replacement when they wear out, unlike shredding tables that require time consuming and costly resurfacing.

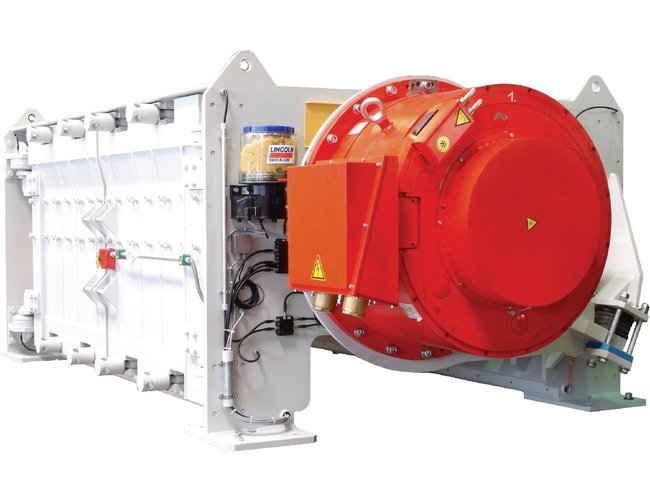

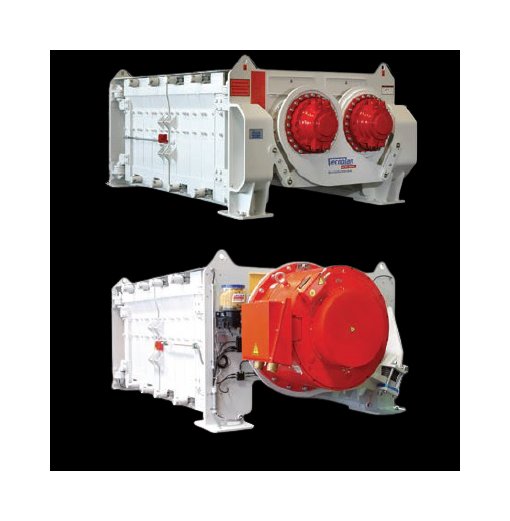

Drive Options
The Hurricane™ Waste Shredder is available with either a standard hydraulic drive system or the revolutionary electric HiTorc™ Drive developed by Vecoplan®.HiTorc™ Drives Offer:Up to 100% Increase in Throughput vs. Conventional DrivesUp to 85% Reduction in Power Consumption / Energy UsageMaximum Torque Across a Wide Speed RangeFull Speed Control with Wide Speed RangeQuickest Possible Reversing ActionControlled Stop FunctionNo Gearbox, Fluid Coupling or Belts to Adjust or Replace

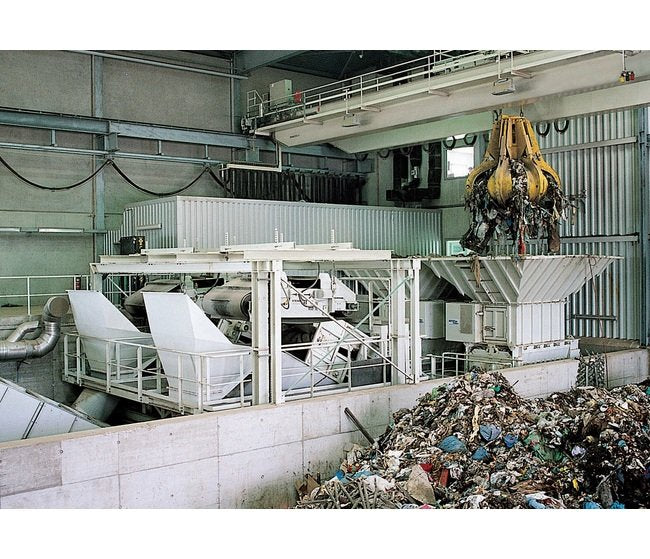

Pre Shredders
When it comes to large recycling, alternative fuel prep and destruction applications, it's all about throughput and reliability, and our pre-shredders are built for both. We pre-shred and separate almost anything and have the least downtime and operating costs in the industry.Treated and untreated C and D debris such as wood, gypsum, paper, wiring, asphalt, ceramics, masonry, concrete, glass, and metal can all be sorted at the source or centrally at the MRF. Wood can be shredded for a wide array of uses; landfill cover, fuel, compost, etc. All components of MSW collected can be pre-shredded with the Hurricane™ for various alternative energy applications.

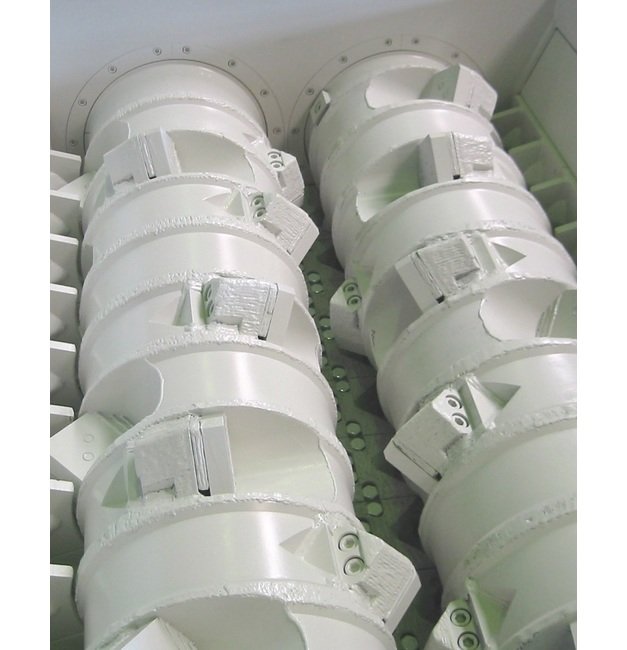

Replaceable Cutters
Unique in the industry, Vecoplan®'s replaceable cutter design minimizes downtime and maintenance costs. Cutters can be replaced or rotated by loosening two bolts. A complete cutting tool exchange can be performed in about two hours. Conventional shredders require extensive downtime, welding and maintenance expense just to maintain cutters.
Specifications Drive Power
300 hp
Specifications Height
150 in
Specifications Infeed Opening Length
98 in
Specifications Infeed Opening Width
67 in
Specifications Length
496 in
Specifications Number Of Cutters
2 x 12 / 18 / 24
Specifications Number Of Drives
2
Specifications Number Of Rotors
2
Specifications Rotor Diameter
28 in
Specifications Rotor Speed
0 to 90 rpm

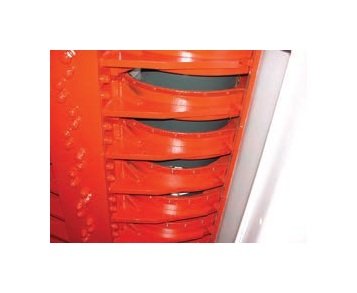

Specifications Sizing Grates
Integrated sizing grates insure flexibility and control of shred size.
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Weight
28.5 ton
Specifications Width
218 in
