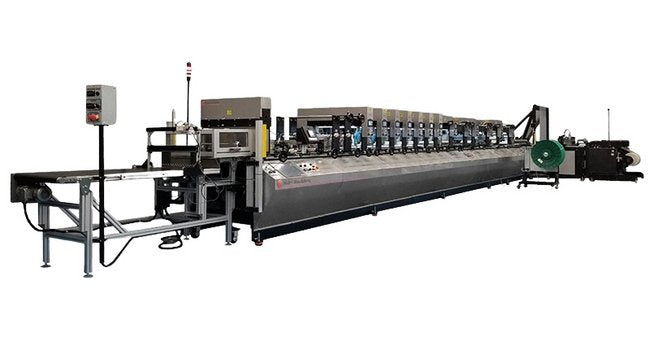

Velocity-610SUP Series Stand-Up Pouch Makers
Velocity-610SUP Series Stand-Up Pouch Makers
SKU:VEL-8b5700
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Velocity-610SUP Series Stand-Up Pouch Makers
$49.99
Quantity: 1
Claim Your Seller Account
Velocity-610SUP Series Stand-Up Pouch Makers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The world’s most advanced pouch making system
Product Specifications
Additional Information
Modern Manufacturing Services has taken the next steps in the evolution of the pouch making process the Velocity Series Stand-Up Pouch System. Incorporated features in this new design include advancements that enable: improved productivity, reduced downtime (tool-less changeovers) and extremely high pouch quality, all while reducing operational costs. The standard features on the Velocity series, include:Independent servo draw systemsServo knife with independent servo sealers/coolersBuilt-in flange zipper systemFive-zone web-tension controlNip-driven unwind systemBuilt-in indexing conveyorTwo independent punch carriages (one with tear notch and one with hanger hole)Digital temperature controlsHeater and thermocouple break alarmsEye averaging function (smoothing function)Built-in 2nd cut featureAdditional inline seals and cross seals added allowing for higher speeds and additional pouch configurationsWhile there are certainly significant hardware enhancements in the Velocity series, the most dramatic enhancements are with the Inteliseal sealing system. Inteliseal is a servo actuated system with built -in functional settings, which allows the operator to easily dial in the appropriate sealing settings for a particular film.All seal heads are independently controlled from the control panel on each head or at the HMI (Human Machine Interface). This unique capability allows an operator to set each seal head so that cycle distance, seal compression distance and seal force vary based on the demands of the film being converted.The Inteliseal system enables the Velocity series run films that most pouch making systems have great difficulty with or require the system be dramatically slowed down to produce acceptable pouch quality. Given all this, what does it mean to your converting business:Industry best pouch qualityAbility to run difficult films, including COEX and recyclable.World class application flexibilityEasy repeatability with all settings easily stored for repeat usage.In summary, the Inteliseal system enables the Velocity to provide more flexibility and higher seal quality than any other system on the market today.
Equipment Options
Optional Punch Shapes and SizesTear notch, hanger hole, sombrero, corner round, handle hole.Digital Readouts for Carriage PositioningProvides a more precise location positioning with absolute or incremental settings. Inch and metric conversion provided.Closed Loop Chiller SystemFor maintained chilled water supply.Coreless Trim RewinderEasy change spools, traverse wound trim with small foot print.Two Tier Conveyor with Stacking GateAllowing for cleaner stacking and product handling.Vacuum Punch Slug RemovalThis option provides a clean vacuum removal system for punch slugs.Web Tracking GuideGuides film at the front of the machine, allowing better accuracy for punches, web slitting and other pouch features. EliminatesAuto Stacking and BundlingThis system offers auto stacking and bundling of pouch stacks for high speed operation. Bundled stacks can be set in 20-100 piece counts.
Features
Low scrap ratesPrecision, accuracy & repeatability never seen before in pouch makingExceptional pouch qualityAble to run the toughest films, including recyclableExtremely high productivity and uptime ratesHigh speed with added versatility for stand-up pouches up to 250 CPM
Note
Pouch CPM is film related - not all pouches run at stated speedsMade in The USA
Technical Specs Alternative Current Ac Voltage
208 V | 220 V
Technical Specs Brands
Intelliseal
Technical Specs Current
150 A
Technical Specs Maximum Gusset Size
4 in | 102 mm
Technical Specs Maximum Lay Flat Web Width
52 in | 1321 mm
Technical Specs Maximum Open Gusset Size
8 in
Technical Specs Maximum Pouch Height
24 in | 610 mm
Technical Specs Maximum Pouch Width Without Skip Feed
12 in | 305 mm
Technical Specs Maximum Roll Diameter
24 in | 610 mm
Technical Specs Mechanical Speed
250 cycles/min
Technical Specs Minimummaximum Pouch Width With Skip Feed
300 in
Technical Specs Minimum Gusset Size
0.5 in | 13 mm
Technical Specs Minimum Open Gusset Size
1.0 in
Technical Specs Minimum Pouch Width Without Skip Feed
3 in | 76 mm
Technical Specs Servo Actuated Machine Air Pressure At 90 Pounds
18 ft³/min
Technical Specs Standard Core Size
3 in | 76 mm
Technical Specs Stand Up Pouch Making Machine
24 in | 610 mm
Technical Specs Warranty
1 year
Technical Specs Water Flow Rate At 50 To 55 Degree Fahrenheit F
12 gpm
