Vert-X 31E Series Touchless Magnetic Rotary Position Sensor
Vert-X 31E Series Touchless Magnetic Rotary Position Sensor
SKU:VER-a553be
Precision touchless magnetic rotary position sensor for adverse conditions with high IP68 protection.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Vert-X 31E Series Touchless Magnetic Rotary Position Sensor
$129.99
Quantity: 1
Claim Your Seller Account
Vert-X 31E Series Touchless Magnetic Rotary Position Sensor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vert-X 31E Series Touchless Magnetic Rotary Position Sensor offers superior precision and reliability in measuring angles from 0 to 360 degrees. Designed for applications under adverse conditions, it features a durable construction with a high protection class of IP68. With a fast and non-contact measuring method, this sensor ensures accurate results with minimal hysteresis. Its compact design, multiple resolutions, and long lifespan make it ideal for concrete pumps, E-Motor feedback systems, and fork lifts. Easily customizable and sealed to IP69, this sensor guarantees exceptional performance even in the harshest environments.
Product Specifications
Specifications Applications
Concrete pump | E-Motor feedback system | Fork lift
Specifications Cross Section Of Single Wires Abz Awg24 For Outpu
0.25 mm²
Specifications Cross Section Of Single Wires Ab Awg22 For Output
0.35 mm²
Specifications Electrical Connection
Cable 6pole
Specifications Electrical Connection Abz For Output Driver Diffe
Cable 10pole
Specifications Electrical Connection Abz For Output Driver Open
Cable 6pole
Specifications Electrical Connection Abz For Output Driver Ttl
Cable 6pole
Specifications Electrical Connection Ab For Output Driver Differ
Cable 6pole
Specifications Electrical Connection Ab For Output Driver Open C
Cable 4pole
Specifications Electrical Connection Ab For Output Driver Ttl
Cable 4pole
Specifications En 61000 4 2 Esd Contact Discharge Air Discharge
4/8 kV
Specifications En 61000 4 3 Immission Hf Radiated 80 To 1000 Mhz
30 V/m
Specifications En 61000 4 4 Burst On All Lines
1 kV
Specifications En 61000 4 5 Surge Lines To Ground
1 kV
Specifications En 61000 4 6 Immission Hf Conducted 015 To 80 Mhz
10 Vemk
Specifications En 61000 4 8 Immission Magnetic Field 50hz
300 A/m
Specifications Features
Applications under adverse ambient conditions possible (humidity, dampness, dust, vibrations etc.) | Compact dimensions | High protection class IP68 | Low temperature coefficient of the output signal | Several possible resolutions | Very fast, non-contacting measuring method | Very long life
Specifications Iec 60393 1 Dielectric Strength Vac 50hz 1min 1ba
1 kV
Specifications Iec 60393 1 Insulation Resistance 500vdc 1bar 2s
20 GO
Specifications Iec 68 2 27 Shock
200 g
Specifications Iec 68 2 6 Vibration Amax 075mm F 5 To 2000 Hz
50 g
Specifications Independent Linearity Without Misalignment
0.5 %

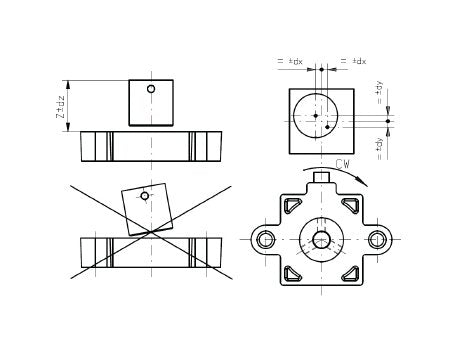

Specifications Independent Linearity With Allowed Misalignment A
1 %
Specifications Length Of Cable
1.0 m
Specifications Magnetic Actuator Type
Type 5
Specifications Maximum Capacitive Load At Output For Output Driv
1 nF
Specifications Maximum En 55022 Class B Emission Radiated 230 To
37 dB(µV/m)
Specifications Maximum En 55022 Class B Emission Radiated 30 To
30 dB(µV/m)
Specifications Maximum Hysteresis
0.5 º
Specifications Maximum Output Current For Output Driver Open Col
30 mA
Specifications Maximum Output Voltage Dc For Output Driver Open
35 V
Specifications Maximum Repeatability
0.35 º

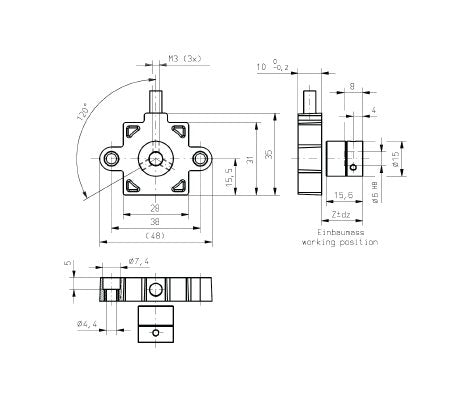

Specifications Mounting Hole Diameter
4.4 mm
Specifications Power Supply Voltage Dc
5 V
Specifications Power Supply Voltage Dc Tolerance
10 %
Specifications Reverse Polarity Protection Of Power Supply
No
