The Vert-X 31E Series Touchless Magnetic Rotary Position Sensor is designed to provide precise angle measurements in challenging environments. With a compact design and high IP68 protection class, this sensor is suitable for applications exposed to adverse conditions like humidity, dust, and vibrations. Offering resolutions and fast, non-contact measurement, this sensor ensures accuracy and durability for a wide range of applications such as concrete pumps, e-motor feedback systems, and fork lifts. The sensor's robust construction and long life make it a reliable choice for industrial and institutional requirements.
Product Specifications
Specifications Applications
Concrete pump | E-Motor feedback system | Fork lift
Specifications Cross Section Of Single Wires Aabbzz Awg28 For Ou
0.09 mm²
Specifications Cross Section Of Single Wires Aabb Awg24 For Outp
0.25 mm²
Specifications Cross Section Of Single Wires Abz Awg24 For Outpu
0.25 mm²
Specifications Cross Section Of Single Wires Ab Awg22 For Output
0.35 mm²
Specifications Electrical Connection
Cable 6pole
Specifications Electrical Connection Aabbzz For Output Driver Di
Cable 10pole
Specifications Electrical Connection Aabb For Output Driver Diff
Cable 6pole
Specifications Electrical Connection Abz For Output Driver Open
Cable 6pole
Specifications Electrical Connection Abz For Output Driver Push
Cable 6pole
Specifications Electrical Connection Abz For Output Driver Ttl
Cable 6pole
Specifications Electrical Connection Ab For Output Driver Open C
Cable 4pole
Specifications Electrical Connection Ab For Output Driver Push P
Cable 4pole
Specifications Electrical Connection Ab For Output Driver Ttl
Cable 4pole
Specifications En 61000 4 2 Esd Contact Discharge Air Discharge
4/8 kV
Specifications En 61000 4 3 Immission Hf Radiated 80 To 1000 Mhz
30 V/m
Specifications En 61000 4 4 Burst On All Lines
1 kV
Specifications En 61000 4 5 Surge Lines To Ground
1 kV
Specifications En 61000 4 6 Immission Hf Conducted 015 To 80 Mhz
10 Vemk
Specifications En 61000 4 8 Immission Magnetic Field 50hz
300 A/m
Specifications Features
Applications under adverse ambient conditions possible (humidity, dampness, dust, vibrations etc.) | Compact dimensions | High protection class IP68 | Low temperature coefficient of the output signal | Several possible resolutions | Very fast, non-contacting measuring method | Very long life
Specifications Iec 60393 1 Dielectric Strength Vac 50hz 1min 1ba
1 kV
Specifications Iec 60393 1 Insulation Resistance 500vdc 1bar 2s
20 GO
Specifications Iec 68 2 27 Shock
200 g
Specifications Iec 68 2 6 Vibration Amax 075mm F 5 To 2000 Hz
50 g
Specifications Independent Linearity Without Misalignment
0.5 %

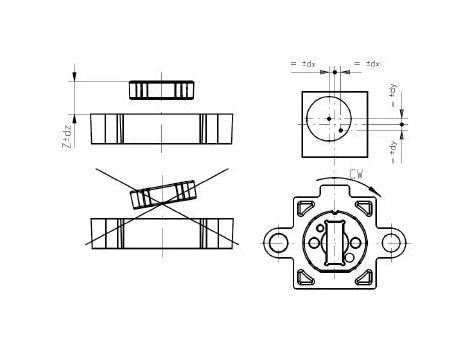

Specifications Independent Linearity With Allowed Misalignment A
1 %
Specifications Length Of Cable
1.0 m
Specifications Magnetic Actuator Type
Type 6
Specifications Maximum Capacitive Load At Output For Output Driv
1 nF
Specifications Maximum En 55022 Class B Emission Radiated 230 To
37 dB(µV/m)
Specifications Maximum Output Voltage Dc For Output Driver Open
35 V

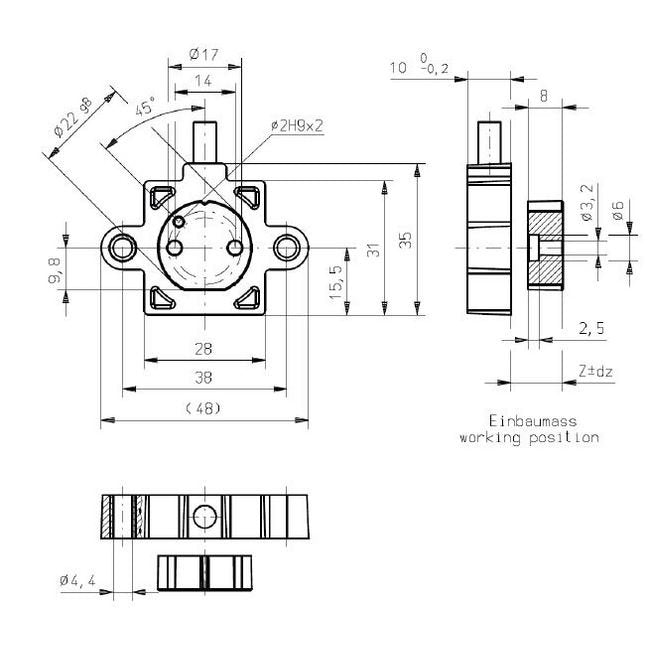

Specifications Mounting Hole Diameter
4.4 mm
Specifications Power Supply Voltage Dc
8 to 35 V
Specifications Reverse Polarity Protection Of Power Supply
Yes
