Vert-X 31E Series Touchless Magnetic Rotary Position Sensor - Type 5, IP68, 360º Measurement
Vert-X 31E Series Touchless Magnetic Rotary Position Sensor - Type 5, IP68, 360º Measurement
SKU:VER-e2bf55
Revolutionary touchless magnetic rotary sensor for precise 360º angle measurement in adverse conditions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Vert-X 31E Series Touchless Magnetic Rotary Position Sensor - Type 5, IP68, 360º Measurement
$129.99
Quantity: 1
Claim Your Seller Account
Vert-X 31E Series Touchless Magnetic Rotary Position Sensor - Type 5, IP68, 360º Measurement
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vert-X 31E Series Touchless Magnetic Rotary Position Sensor revolutionizes angle sensing with its innovative touchless technology. Designed for applications under adverse conditions, it offers exceptional durability and reliability with its non-contact magnetic measuring method. With a measuring range of 0 to 360 degrees and a compact design, this sensor ensures precise and fast measurements. Sealed to IP68 and featuring a low temperature coefficient, it guarantees high performance even in challenging environments. Ideal for concrete pumps, e-motor feedback systems, and forklifts, this sensor ensures accurate position detection with minimal downtime.
Product Specifications
Specifications Applications
Concrete pump | E-Motor feedback system | Fork lift
Specifications Cross Section Of Single Wires Awg22 For Output Dr
0.35 mm²
Specifications Cross Section Of Single Wires Awg24 For Output Dr
0.25 mm²
Specifications Electrical Connection
Cable 4pole
Specifications Electrical Connection For Output Driver Different
Cable 6pole
Specifications Electrical Connection For Output Driver Ttl
Cable 4pole
Specifications En 61000 4 2 Esd Contact Discharge Air Discharge
4/8 kV
Specifications En 61000 4 3 Immission Hf Radiated 80 To 1000 Mhz
30 V/m
Specifications En 61000 4 4 Burst On All Lines
1 kV
Specifications En 61000 4 5 Surge Lines To Ground
1 kV
Specifications En 61000 4 6 Immission Hf Conducted 015 To 80 Mhz
10 Vemk
Specifications En 61000 4 8 Immission Magnetic Field 50hz
300 A/m
Specifications Features
Applications under adverse ambient conditions possible (humidity, dampness, dust, vibrations etc.) | Compact dimensions | High protection class IP68 | Low temperature coefficient of the output signal | Several possible resolutions | Very fast, non-contacting measuring method | Very long life
Specifications Iec 60393 1 Dielectric Strength Vac 50hz 1min 1ba
1 kV
Specifications Iec 60393 1 Insulation Resistance 500vdc 1bar 2s
20 GO
Specifications Iec 68 2 27 Shock
200 g
Specifications Iec 68 2 6 Vibration Amax 075mm F 5 To 2000 Hz
50 g
Specifications Independent Linearity Without Misalignment
0.5 %

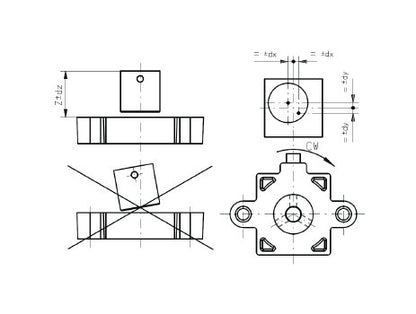

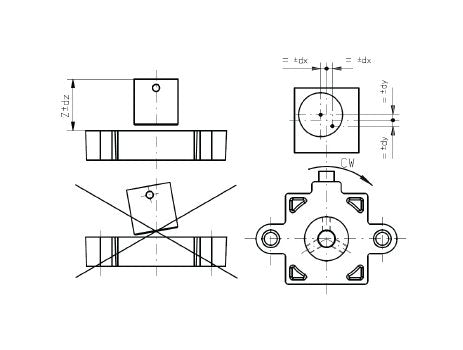

Specifications Independent Linearity With Allowed Misalignment A
1 %
Specifications Length Of Cable
1.0 m
Specifications Magnetic Actuator Type
Type 5
Specifications Maximum En 55022 Class B Emission Radiated 230 To
37 dB(µV/m)
Specifications Maximum En 55022 Class B Emission Radiated 30 To
30 dB(µV/m)
Specifications Maximum Hysteresis
0.5 º
Specifications Maximum Repeatability
0.35 º
Specifications Maximum Temperature Coefficient Of The Output Sig
5 ppm/ºk
Specifications Measuring Range
0 to 360 º
Specifications Mechanical Angle Continuous
360 º
Specifications Minimum Life Movements
No Limitation

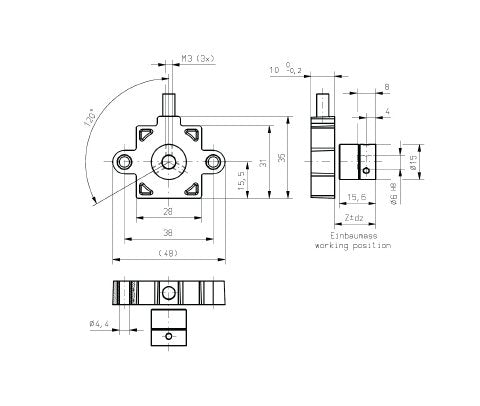

Specifications Mounting Hole Diameter
4.4 mm
Specifications Operating And Storage Temperature
-40 to 85 ºC
Specifications Output Driver Differential Rs 485 Mttfdmtbf
654/654 y
Specifications Output Driver Ttl Mttfdmtbf
533/533 y
Specifications Power Supply Voltage Dc
5 V
Specifications Power Supply Voltage Dc Tolerance
10 %
Specifications Protection Class
IP68
Specifications Recommended Ohmic Load At Output For Output Drive
1 kO
Specifications Redundancy Feasible
No
Specifications Reverse Polarity Protection Of Power Supply
No
