Vert-X 31E Touchless Rotary Position Sensor
Vert-X 31E Touchless Rotary Position Sensor
SKU:VER-db3271
Reliable touchless rotary position sensor for precise angle measurements in diverse applications. IP68 rated and durable for long-lasting performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Vert-X 31E Touchless Rotary Position Sensor
$299.99
Quantity: 1
Claim Your Seller Account
Vert-X 31E Touchless Rotary Position Sensor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vert-X 31E Touchless Rotary Position Sensor is a top-of-the-line solution for precise angle measurements in various applications. Featuring a non-contacting measuring method and high protection class IP68, this sensor ensures accurate and reliable performance even under adverse ambient conditions. With a compact design, high resolution, and long lifespan, the sensor offers unmatched quality. Ideal for access control systems, concrete pumps, and forklifts, the Vert-X 31E is a versatile and durable choice for your rotational sensing needs.
Product Specifications
Specifications Applications
Access control system | Concrete pump | Fork lift
Specifications Cross Section Of Single Wires Awg20
0.56 mm²
Specifications Cross Section Of Single Wires Redundant Awg24
0.25 mm²
Specifications Electrical Connection
Cable 3pole
Specifications Electrical Connection Redundant
Cable 6pole
Specifications En 61000 4 2 Esd Contact Discharge Air Discharge
4/8 kV
Specifications En 61000 4 3 Immission Hf Radiated 80 To 1000 Mhz
30 V/m
Specifications En 61000 4 4 Burst On All Lines
1 kV
Specifications En 61000 4 5 Surge Lines To Ground
1 kV
Specifications En 61000 4 6 Immission Hf Conducted 015 To 80 Mhz
10 Vemk
Specifications En 61000 4 8 Immission Magnetic Field 50hz
300 A/m
Specifications Fast Mode Sample Rate
5 kHz
Specifications Fast Mode System Propagation Delay
800 µs
Specifications Features
Applications under adverse ambient conditions possible (humidity, dampness, dust, vibrations etc.) | Compact dimensions | Full resolution and accuracy at programmed electrical angle | High accuracy of measurement | High protection class IP68 | Non-contacting measuring method | Very long life
Specifications Iec 60393 1 Dielectric Strength Vac 50hz 1min 1ba
1 kV
Specifications Iec 60393 1 Insulation Resistance 500vdc 1bar 2s
20 GO
Specifications Iec 68 2 27 Shock
200 g
Specifications Iec 68 2 6 Vibration Amax 075mm F 5 To 2000 Hz
50 g
Specifications Independent Linearity Without Misalignment
0.3 %

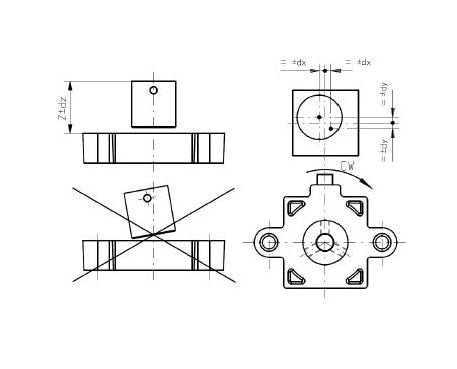

Specifications Independent Linearity With Allowed Misalignment A
0.5 %
Specifications Length Of Cable
1.0 m
Specifications Magnetic Actuator Type
Type 5
Specifications Maximum Capacitive Load At Output
1 nF
Specifications Maximum En 55022 Class B Emission Radiated 230 To
37 dB(µV/m)
Specifications Maximum En 55022 Class B Emission Radiated 30 To
30 dB(µV/m)
Specifications Maximum Hysteresis
0.1 º
Specifications Maximum Repeatability
0.1 º
Specifications Maximum Temperature Coefficient Of The Output Sig
25 ppm/ºk
Specifications Measuring Range
0 to 360 º
Specifications Mechanical Range Continuous
360 º
Specifications Minimum Life Movements
No Limitation
Specifications Minimum Ohmic Load At Output
10 kO

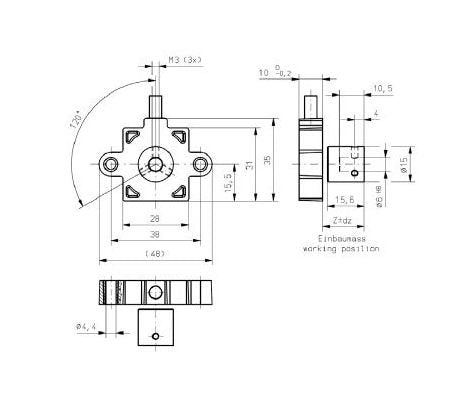

Specifications Mounting Hole Diameter
4.4 mm
Specifications Mttfdmtbf
240/240 y
Specifications Operating And Storage Temperature
-40 to 85 ºC
Specifications Power Supply Voltage Dc
8 to 35 V
Specifications Protection Class
IP68
Specifications Pulse Width Modulation Pwm Frequency
855 Hz
Specifications Pulse Width Modulation Pwm Frequency Tolerance
20 %
Specifications Reverse Polarity Protection Of Power Supply
Yes
