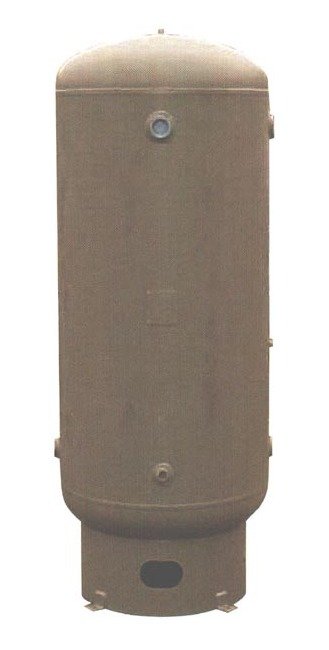

Vertical Air Receiver 120 Gallon 200-psi MWP

Vertical Air Receiver 120 Gallon 200-psi MWP

SKU:REC-f6ff80

High-quality Vertical Air Receiver with 120-gallon capacity and 200 psi MWP for industrial use.

Regular price $849.99
Regular price Sale price $849.99
Sale

Initiate Order

Vertical Air Receiver 120 Gallon 200-psi MWP

Vertical Air Receiver 120 Gallon 200-psi MWP

$849.99

Quantity: 1

Claim Your Seller Account

Vertical Air Receiver 120 Gallon 200-psi MWP

Vertical Air Receiver 120 Gallon 200-psi MWP

$849.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Vertical Air Receiver 120 Gallon with a maximum working pressure of 200 psi is a robust and efficient solution for storing compressed air in industrial settings. With a nominal capacity of 120 gallons and compact dimensions for easy installation, this receiver tank is designed to meet the demands of heavy-duty applications. It features multiple N.P.T. openings for versatile connections and is built to ensure optimal performance and longevity.

Product Specifications

Financing Approve Payments
Finance with Approve Payments
Specifications Cross Reference
A10049

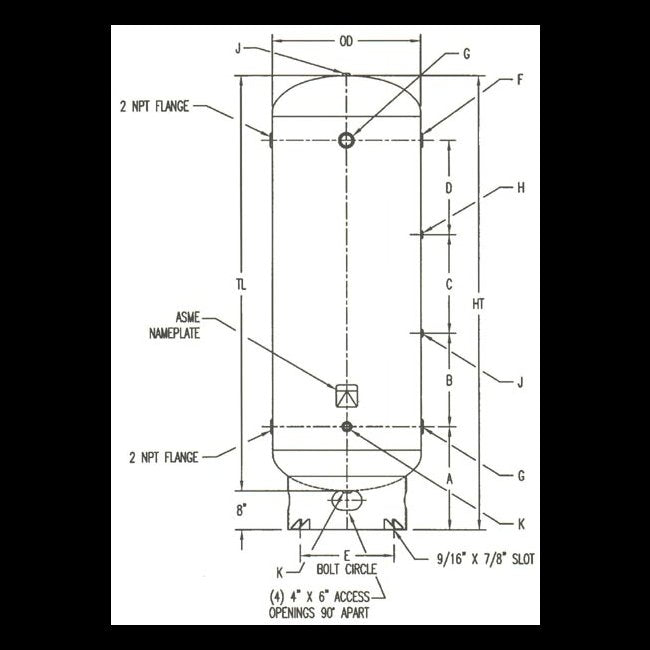

Specifications Dimension A
21.00 inches
Specifications Dimension B
13.00 inches
Specifications Dimension C
14.00 inches
Specifications Dimension D
13.00 inches
Specifications Dimension E
21.00 inches
Specifications Ht
75.00 inches
Specifications Mawp
200 psi
Specifications Nominal Capacity
120 gal | 16.04 ft³
Specifications Npt Opening F
1 1/2 inches
Specifications Npt Opening G
2 inches
Specifications Npt Opening H
1/4 inches
Specifications Npt Opening J
1/2 inches
Specifications Npt Opening K
1 inches
Specifications Od
24.00 inches
Specifications Tl
67.00 inches
Specifications Tw
329
