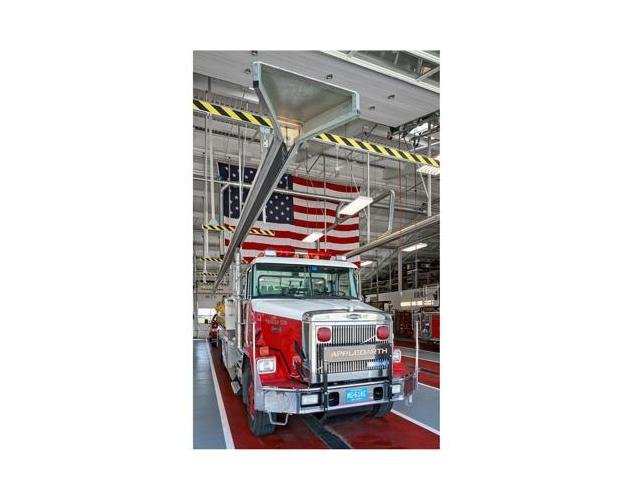

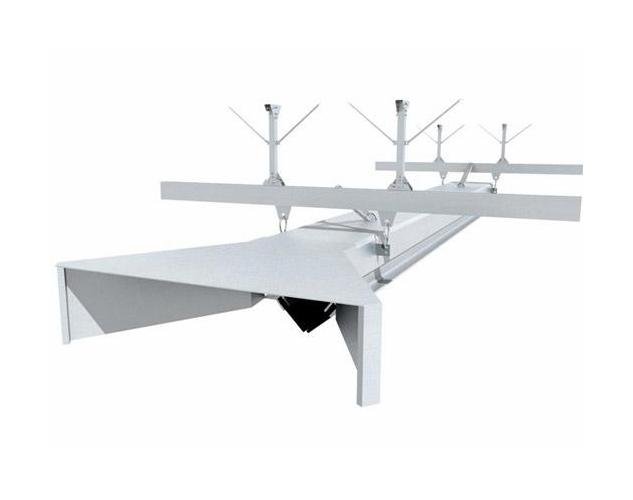

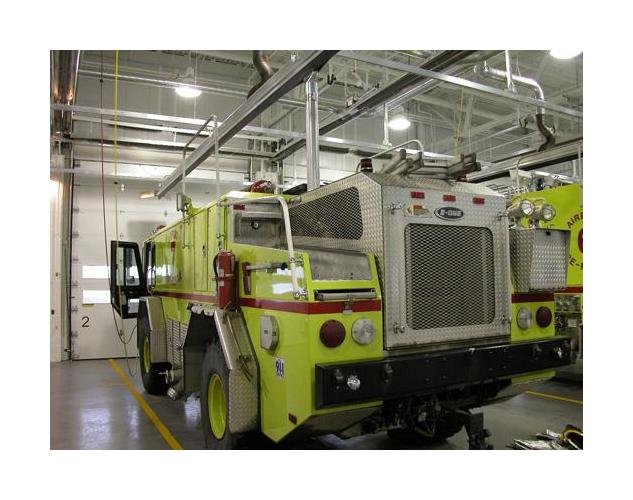

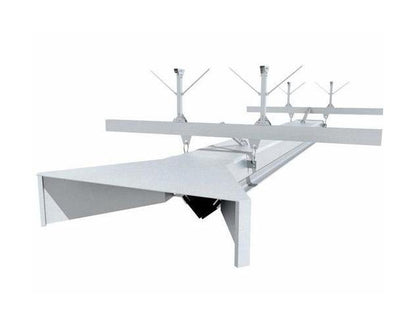

The VSR system is designed for vehicles that have vertical exhaust pipes, including commercial trucks and fire trucks. The system supports both drive in and back-in facilities, and up to two vehicles in tandem, up to 76 feet (23,5 m) in length. VSR features a floating suspension that adjusts side-to-side as the vehicle enters the facility, making it easier for the driver line up the exhaust pipe while also capturing hazardous exhaust fumes at the facility entry door. The solution for vehicles that have top exhaust and need to move through an apparatus bay or garage.
Product Specifications
Specifications Applications

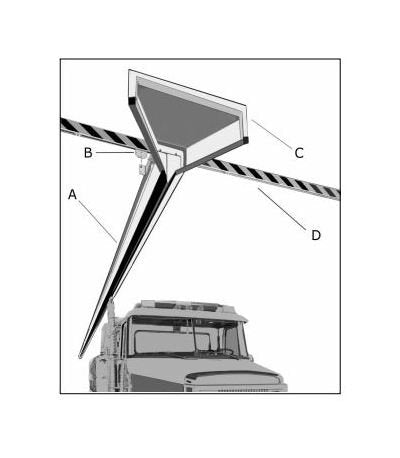

As the vehicle enters the facility, drivers remain inside the the vehicle; the VSR catcher and the profile align themselves to the exhaust pipe position; the catcher provides 14 in. (356 mm) of lateral movement on each side.
Specifications Length Of Service Area
Up to 23.5 m (76 ft); Square Rail is 6 m (19.6 ft) in Length, and Rail is cut for Each Specific Order as Needed
