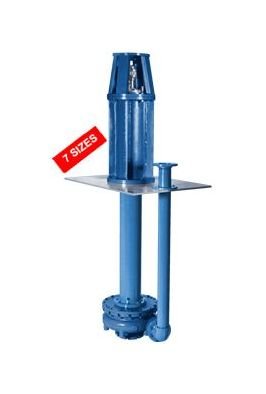

Vertiflo 1100 Cantilever Vortex Pump - Heavy Duty Vertical Slurry Pump

Name: Vertiflo 1100 Cantilever Vortex Pump - Heavy Duty Vertical Slurry Pump
Brand: AB Industrial
SKU: SLU-a375a1
Price: 3899.99 USD
Availability: OutOfStock

SKU:SLU-a375a1

Versatile and robust, the Vertiflo 1100 Cantilever Vortex Pump excels in handling fluids with large abrasive solids. Ideal for demanding industrial applications.

$3,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Vertiflo 1100 Cantilever Vortex Pump is a heavy-duty vertical pump designed for fluids containing large and abrasive solids. With options in Cast Iron, 316SS Stainless Steel, Alloy 20, and CD4MCu materials, it offers a flow capacity of up to 1600 gpm and heads reaching 170 feet TDH. Benefiting from a massive shaft with no lower bearings for reduced shaft deflection, this pump features grease-lubricated duplex thrust and radial ball bearings. Whether in simplex or duplex configuration, with fab steel or stainless steel mounting plates, it offers versatility to match existing plates and piping. It can be driven via flex coupling or V-belt drive with OSHA guard, featuring a TEFC, Severe Duty C-Face Motor. Starters and level controls comply with NEMA 1, 12, 4X, and 7 standards.

Product Specifications

Specifications Coupling Type

Flex

Specifications Discharge Size

4 in | 5 in | 6 in

Specifications Equivalent

Specifications Hp

10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 7.5

Specifications Length Below Mtg Plate

24-72 in

Specifications Manufacturer

Vertiflo

Specifications Material

316SS Stainless Steel | Alloy 20 | Cast Iron | CD4MCu | High Chrome

Specifications Max Hp

60 hp

Specifications Max Rpm

1800 rpm

Specifications Rpm

1000 | 1200 | 1500 | 1800 | 900
