Vertiflo 1100 Cantilever Vortex Pumps - Heavy Duty Slurry Pumps

Name: Vertiflo 1100 Cantilever Vortex Pumps - Heavy Duty Slurry Pumps
Brand: AB Industrial
SKU: SLU-c09a90
Price: 2875.99 USD
Availability: OutOfStock

SKU:SLU-c09a90

High-performance Vertiflo 1100 Cantilever Vortex Pumps designed for heavy-duty industrial slurry handling with advanced features and materials.

$2,875.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

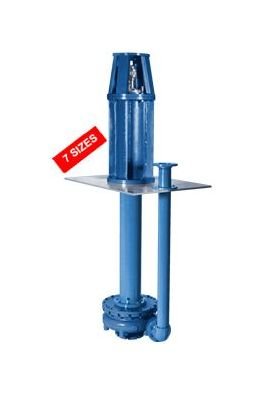

The Vertiflo 1100 Cantilever Vortex Pumps are expertly designed with heavy-duty performance in mind, capable of handling fluids with large and abrasive solids. Manufactured using top-quality materials such as 316SS Stainless Steel, Alloy 20, Cast Iron, and CD4MCu, these pumps ensure durability and longevity. With a flow capacity of up to 1600 gpm and heads reaching 170 feet TDH, they are ideal for demanding industrial applications. The advanced design features a massive shaft with no lower bearings or shaft deflection, coupled with grease-lubricated duplex thrust and radial ball bearings for reliable operation. Available with various mounting plate options, coupling types, and motor configurations, these pumps offer versatility and efficiency in vertical slurry pump applications.

Product Specifications

Specifications Coupling Type

Flex

Specifications Discharge Size

4 in | 5 in

Specifications Equivalent

Specifications Hp

10 | 15 | 2 | 20 | 25 | 3 | 30 | 5 | 7.5

Specifications Length Below Mtg Plate

24-72 in

Specifications Manufacturer

Vertiflo

Specifications Material

316SS Stainless Steel | Alloy 20 | Cast Iron | CD4MCu | High Chrome

Specifications Max Hp

30 hp

Specifications Max Rpm

1800 rpm

Specifications Rpm

1000 | 1200 | 1500 | 1800 | 900
