Vertiflo 1100 Cantilever Vortex Pumps - Heavy Duty Vertical Slurry Pump

Name: Vertiflo 1100 Cantilever Vortex Pumps - Heavy Duty Vertical Slurry Pump
Brand: AB Industrial
SKU: SLU-028372
Price: 3999.99 USD
Availability: OutOfStock

SKU:SLU-028372

Vertiflo 1100 Cantilever Vortex Pumps - Heavy Duty Vertical Slurry Pump for large solids. Durable materials, high performance.

$3,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

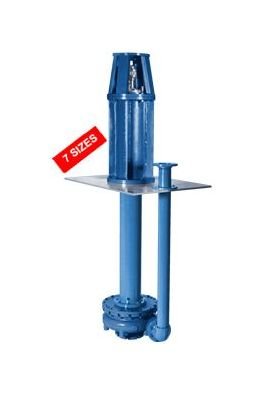

The Vertiflo 1100 Cantilever Vortex Pump is a heavy-duty vertical slurry pump designed to handle fluids with large and abrasive solids efficiently. With material options including 316SS Stainless Steel, Alloy 20, Cast Iron, and CD4MCu, this pump offers superior durability and corrosion resistance. Its massive shaft design eliminates lower bearings, reducing shaft deflection. Equipped with grease-lubricated duplex thrust and radial ball bearings, this pump ensures reliable operation. Choose from simplex or duplex mounting plates in fab steel or stainless steel, alongside flex coupling or V-belt drive options with OSHA guard for safety. The TEFC, Severe Duty C-Face Motor ensures high performance, making it an ideal choice for demanding industrial applications.

Product Specifications

Specifications Coupling Type

Flex

Specifications Discharge Size

2 in | 3 in

Specifications Equivalent

Specifications Hp

1 | 1.5 | 10 | 15 | 2 | 20 | 25 | 3 | 5 | 7.5

Specifications Length Below Mtg Plate

24-72 in

Specifications Manufacturer

Vertiflo

Specifications Material

316SS Stainless Steel | Alloy 20 | Cast Iron | CD4MCu | High Chrome

Specifications Max Hp

25 hp

Specifications Max Rpm

1800 rpm

Specifications Rpm

1000 | 1200 | 1500 | 1800 | 900
