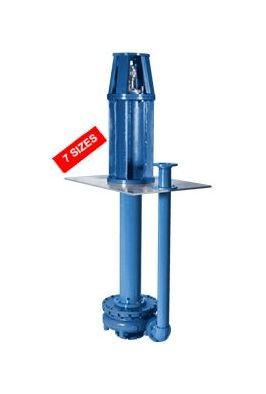

Vertiflo 1100 Cantilever Vortex Slurry Pump

Name: Vertiflo 1100 Cantilever Vortex Slurry Pump
Brand: AB Industrial
SKU: SLU-623859
Price: 7899.99 USD
Availability: OutOfStock

SKU:SLU-623859

High-performance Vertiflo 1100 Cantilever Vortex Slurry Pump for fluids with large solids. Durable construction, superior bearings, and customizable configurations for efficient pumping.

$7,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Vertiflo 1100 Cantilever Vortex Slurry Pump is a heavy-duty solution designed for handling fluids containing large and abrasive solids. Constructed with materials like 316SS Stainless Steel, Alloy 20, Cast Iron, and CD4MCu, it ensures durability and reliability in demanding environments. With a flow capacity of up to 1600 gpm and heads to 170 Feet TDH, this pump boasts a massive shaft with no lower bearings, minimizing shaft deflection. It features Grease Lube Duplex Thrust & Radial Ball Bearings, offering superior performance and longevity. Available in simplex or duplex configurations with steel or stainless steel mounting plates, it provides flexibility to match existing setups. Equipped with TEFC, Severe Duty C-Face Motor and a variety of NEMA starters and level controls, the Vertiflo 1100 is a versatile choice for various applications.

Product Specifications

Specifications Coupling Type

Flex

Specifications Discharge Size

6 in | 8 in

Specifications Equivalent

Specifications Hp

10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 7.5 | 75

Specifications Length Below Mtg Plate

24-72 in

Specifications Manufacturer

Vertiflo

Specifications Material

316SS Stainless Steel | Alloy 20 | Cast Iron | CD4MCu | High Chrome

Specifications Max Hp

75 hp

Specifications Max Rpm

1800 rpm

Specifications Rpm

1000 | 1200 | 1500 | 1800 | 900

Vertiflo 1100 Cantilever Vortex Slurry Pump
