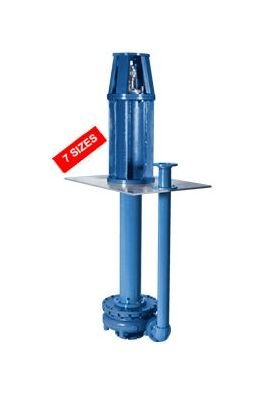

The Vertiflo 1100 Cantilever Vortex Pumps are heavy-duty vertical pumps designed for handling fluids containing large and abrasive solids. Built with materials such as 316SS Stainless Steel, Alloy 20, Cast Iron, and CD4MCu, these pumps deliver exceptional performance. With a flow capacity of up to 1600 gpm and heads reaching 170 feet TDH, these pumps feature a massive shaft with no lower bearings for reduced shaft deflection. They come with duplex thrust and radial ball bearings, with options for simplex or duplex fab steel or stainless steel mounting plates. The pumps are powered by TEFC severe-duty C-face motors and are available with various starters and level controls for versatile applications.
Product Specifications
Specifications Coupling Type
Flex
Specifications Discharge Size
3 in | 4 in
Specifications Equivalent
Flowserve | Galigher | Goulds | Hayward Gordon | Lawrence | Nagle | Warman | Weir
Specifications Hp
10 | 15 | 2 | 20 | 25 | 3 | 30 | 5 | 7.5
Specifications Length Below Mtg Plate
24-72 in
Specifications Manufacturer
Vertiflo
Specifications Material
316SS Stainless Steel | Alloy 20 | Cast Iron | CD4MCu | High Chrome
Specifications Max Hp
30 hp
Specifications Max Rpm
1800 rpm
Specifications Rpm
1000 | 1200 | 1500 | 1800 | 900
