VIApack Thermal Inkjet Printing System
VIApack Thermal Inkjet Printing System
SKU:VIA-7fa74f
Achieve efficient and precise industrial marking with the VIApack Thermal Inkjet Printing System.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
VIApack Thermal Inkjet Printing System
$6,999.99
Quantity: 1
Claim Your Seller Account
VIApack Thermal Inkjet Printing System
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The VIApack Thermal Inkjet Printing System is a comprehensive solution designed for industrial and packaging marking applications. With the powerful universal print controller MPERIA®, this system offers high-speed and high-resolution printing capabilities suitable for batch codes, date codes, fixed and variable texts, graphics, and barcodes. Its versatility includes support for various inks, including water and solvent-based options, making it ideal for porous and non-porous surfaces. Additionally, the system's easy installation, user-friendly interface, and upgrade options ensure optimal performance and adaptability to changing marking needs.
Product Specifications
Additional Information Additional Information
MPERIA® offers a wide selection of common barcode symbologies, TrueType fonts with print color density setting, pre-formatted counters and user-defined variable data, printed in real time. Both porous and non-porous inks are available, making MPERIA® a versatile solution for marking onto corrugated, chipboard, clay-coated cartons and some plastics. When your requirements change or require more capability, MPERIA® preserves the value of your investment by enabling a complete upgrade path. Printheads can be added. Controllers can be networked. Add an on-board message editor, import databases or enable Virtual Network Computing (VNC). MPERIA® allows you to tailor a system to meet your needs.
Communications And Networking Communications And Networking
RS232 Serial Port
Controller Controller

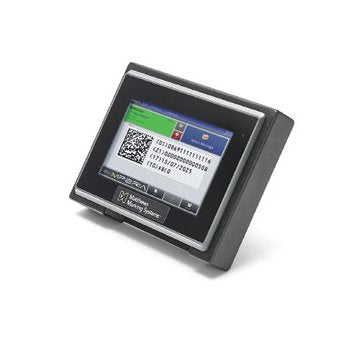

Basic PackageEasy to use 7" (177 mm) multilingual touchscreen interfaceOperator error reduction via simple message selection with real-time print preview MPERIA® Creator: Powerful Windows-based message editorSimple transfer of messages from desktop PC via USB or direct from optional Ethernet networkUpgrade OptionsMPERIA® Editor: Easy to use on-board message editorMPERIA® Select: Barcode scanner for printout selectionMPERIA® Connect: Activates built-in Ethernet port for external communication and message transfer.MPERIA® Portal: Remote control and monitor via VNCVIApack Expand: Add additional VIAjet⢠L-Series L12 printheads for double-sided printing
Features Features
Cartridge technology: fast changeovers, no maintenanceInk options for porous and non-porous, including water-based, alcohol, and MEK-based inksEasy to install bundled package with controller, printhead, mounting and photocell all in one-ready to print on any substrate
Hardware Options Hardware Options
1 additional VIAjet⢠L-Series L12 for double-sided printingEncoderHand scannerWarning lightBulk ink delivery system (Requires VIApack expand license)
Inks Inks
Water and solvent-based (including fast drying MEK) for porous and non-porous surfacesVarious colors available
Package Contents Package Contents

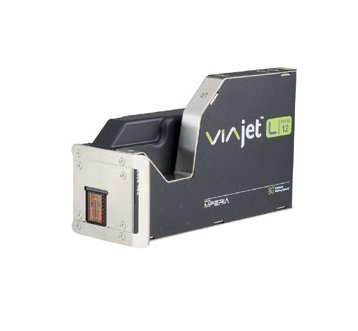

7" (177 mm) VIApack controllerVIAjet⢠L-Series L12: 1/2" (12.7 mm) printheadPhotocellMounting bracketsMPERIA® Creator: Windows based message creatorPower supplyManuals & software
Print Features Print Features
High-speed, high-resolution 0.5" (12.7 mm) print height from a single printheadTrueType fonts with unique ink savings print density and object color settingsOnline cost per mark and ink usage calculatorStatic and dynamic text fieldsUser-editable variable fieldsCustomizable data and time codesCustomizable sequential and batch countersBarcodes (GS1-128, GS1 Databar, EANâ8/13, UPCâA, ITF/ITFâ14, Code39/128) 2D codes (GS1-Datamatrix, Data matrix, QR, Micro QR)
Technical Specs Alternating Current Ac Voltage
96 to 264 V
Technical Specs Alternating Current Ac Voltage Mperia
96 to 264 V
Technical Specs Approximately Temperature
50 to 104 ºF | 10 to 40 ºC
Technical Specs Current
0.8 A
Technical Specs Current Mperia
1 A
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Frequency Mperia
50 Hz | 60 Hz
Technical Specs High Resolution Print At Over 196 Feet Per Minut
600 x 600 dpi
Technical Specs High Speed Print At 1660 Feet Per Minute Ftmm 48
600 x 75 dpi
Technical Specs Ingress Protection Ip Rating
Ingress Protection (IP30)
Technical Specs Ingress Protection Ip Rating Mperia
Ingress Protection (IP42)
Technical Specs Maximum Print Distance
0.25 in | 6.4 mm
Technical Specs Maximum Print Speed
1,600 ft/min | 488 m/min
Technical Specs Minimum Print Height
0.5 in | 12.7 mm
Technical Specs Mounting Orientation
Horizontal or down
Technical Specs Non Condensing Relative Humidity Rh For Water Ba
10 to 95 %
Technical Specs Number Of Ink Cartridges
1
Technical Specs Printhead
1/2 in | 12.7 mm
Technical Specs Printhead Height
8.3 in | 210 mm
Technical Specs Printhead Length
3.4 in | 87 mm
Technical Specs Printhead Width
5.1 in | 129 mm
Technical Specs Screen Size Mperia
7 in
Technical Specs Supports Mperia
1 VIAjet⢠device
Technical Specs Universal Serial Bus Usb Ports Mperia
2
