Vibra Shake™ 1500 CFM Dust Collector with Pleatloc™ Corrugation
Vibra Shake™ 1500 CFM Dust Collector with Pleatloc™ Corrugation
SKU:VIB-a4a363
Optimize efficiency with the Vibra Shake™ 1500 CFM Dust Collector - self-cleaning, high collection efficiency, and compact design.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Vibra Shake™ 1500 CFM Dust Collector with Pleatloc™ Corrugation
$2,499.99
Quantity: 1
Claim Your Seller Account
Vibra Shake™ 1500 CFM Dust Collector with Pleatloc™ Corrugation
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

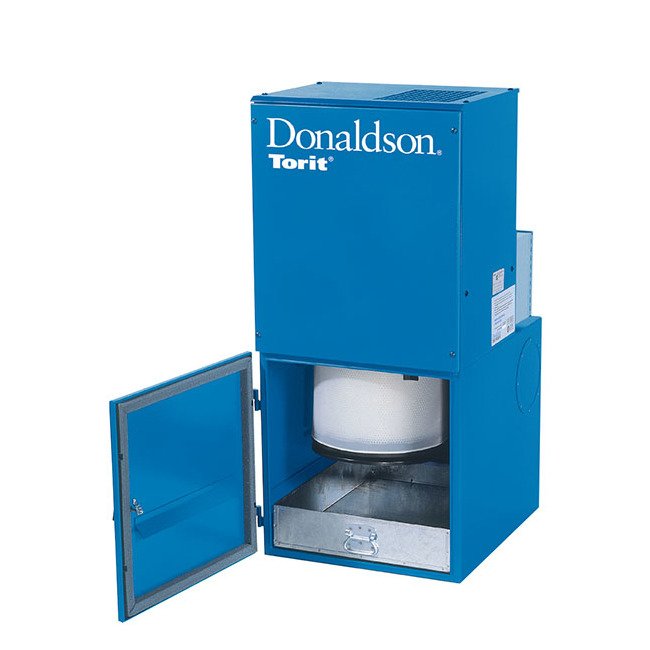

The Vibra Shake™ Series 1500 Cubic Feet Per Minute (CFM) Dust Collector delivers exceptional self-cleaning performance with its proprietary Pleatloc™ corrugation, ensuring uniform pleat spacing and extended filter life. Designed for high collection efficiency in reclaiming precious metals, this collector features a two-stage cartridge for filtering coarse and fine dusts, coupled with a galvanized outer liner for added filter media protection. With easy filter changeout and compact self-contained design, it offers flexibility in installation and significant floor space savings. Recirculating filtered air for cost efficiency and maintaining a cleaner work environment, this collector maximizes productivity while reducing maintenance costs.
Product Specifications
Applications
A self-cleaning collector for intermittent applications where high collection efficiency is essential, such as reclaiming precious metals.Two-stage cartridge for high-efficiency filtration on both coarse and fine dustsCompact, self-contained collector design allows placement flexibility and saves floor spacePreassembled for easy, low-cost installation - no need for compressed airSelection of inlet size and location for installation flexibilityRecirculates filtered air saving heating and cooling costsProvides a cleaner work environment for maximum productivityReduces plant maintenance costs

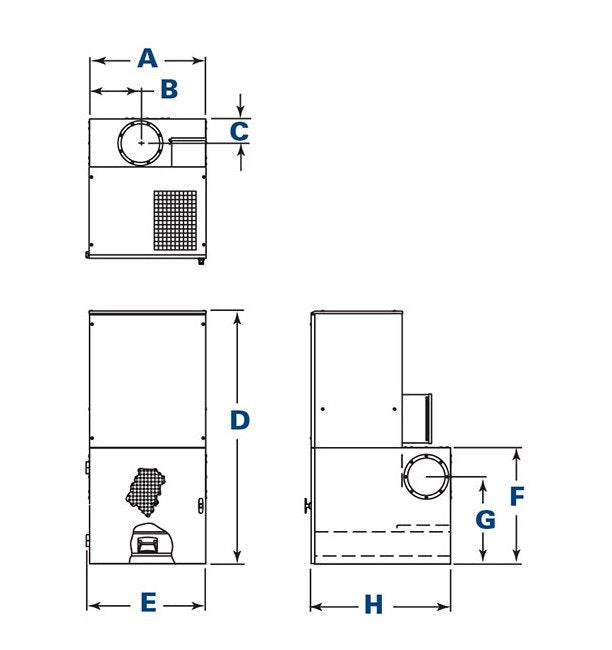

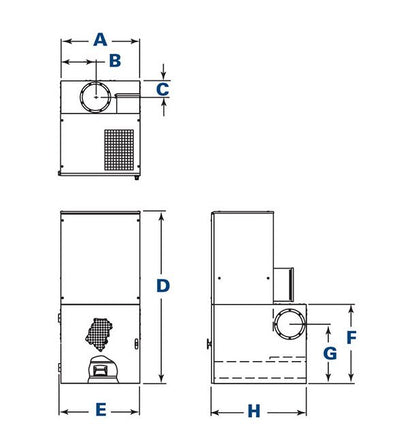

Dimensions Dimension A
24.0 in | 609.6 mm
Dimensions Dimension B
12.0 in | 304.8 mm
Dimensions Dimension C
5.0 in | 127.0 mm
Dimensions Dimension D
68.2 in | 1732.3 mm
Dimensions Dimension E
24.7 in | 627.4 mm
Dimensions Dimension F
40.1 in | 1018.5 mm
Dimensions Dimension G
34.1 in | 866.1 mm
Dimensions Dimension H
30.8 in | 782.3 mm

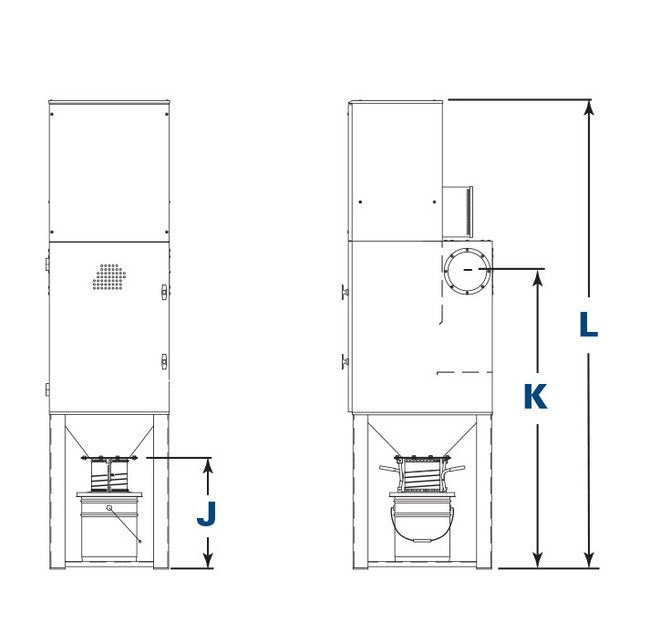

Dimensions Dimension J
22.3 in | 566.4 mm
Dimensions Dimension K
65.5 in | 1663.7 mm
Dimensions Dimension L
99.7 in | 2532.0 mm

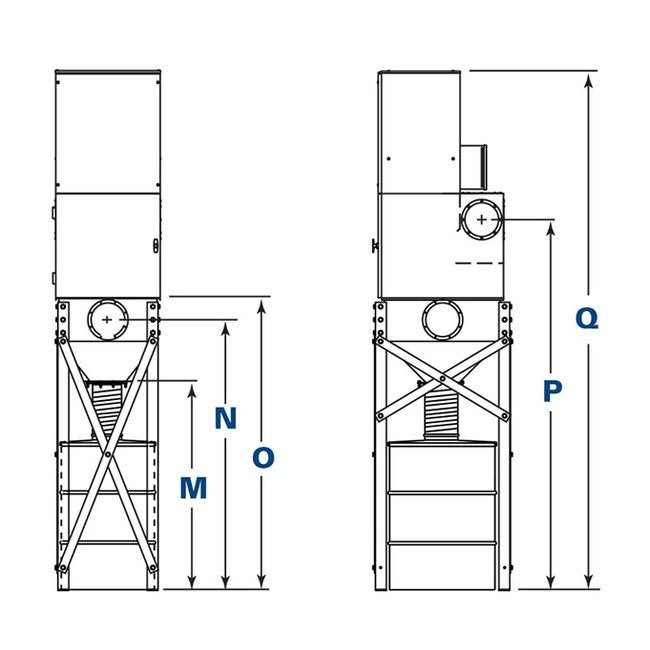

Dimensions Dimension M
48.0 in | 1219.2 mm
Dimensions Dimension N
62.3 in | 1582.4 mm
Dimensions Dimension O
67.3 in | 1709.4 mm
Dimensions Dimension P
107.4 in | 2728.0 mm
Dimensions Dimension Q
135.4 in | 3439.2 mm
Features

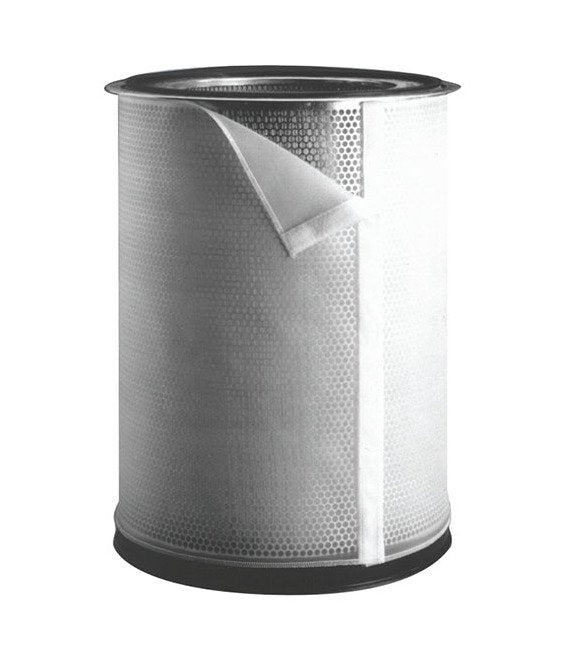

Vibra Shake™ cartridge filter features proprietary Pleatloc™ corrugation that assures uniform pleat spacing for better self-cleaning and longer filter lifeFilter screen captures coarse and fibrous particlesSubmicron particulates pass through the filter screen and are trapped by the inner layer of mediaGalvanized outer liner protects filter mediaEasy filter changeout for quicker maintenance
Specifications Dust Drawer Shipping Weight
385 lb | 174.6 kg
Specifications Dust Drawer Volume
1.8 ft³ | 0.05 m³
Specifications Filter Area
177 ft² | 16.4 m²
Specifications Frequency
60 Hz
Specifications Hopper Shipping Weight
525 lb | 238.1 kg
Specifications Nominal Airflow
1500 ft³/min | 2548 m³/h
Specifications Sound Level
79 dBA
