Vibra Shake™ Series 2400 CFM Dust Collector with Pleatloc™ Filter
Vibra Shake™ Series 2400 CFM Dust Collector with Pleatloc™ Filter
SKU:VIB-e59040
Enhance air quality with Vibra Shake™ 2400 CFM Dust Collector for optimal productivity.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Vibra Shake™ Series 2400 CFM Dust Collector with Pleatloc™ Filter
$6,999.99
Quantity: 1
Claim Your Seller Account
Vibra Shake™ Series 2400 CFM Dust Collector with Pleatloc™ Filter
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

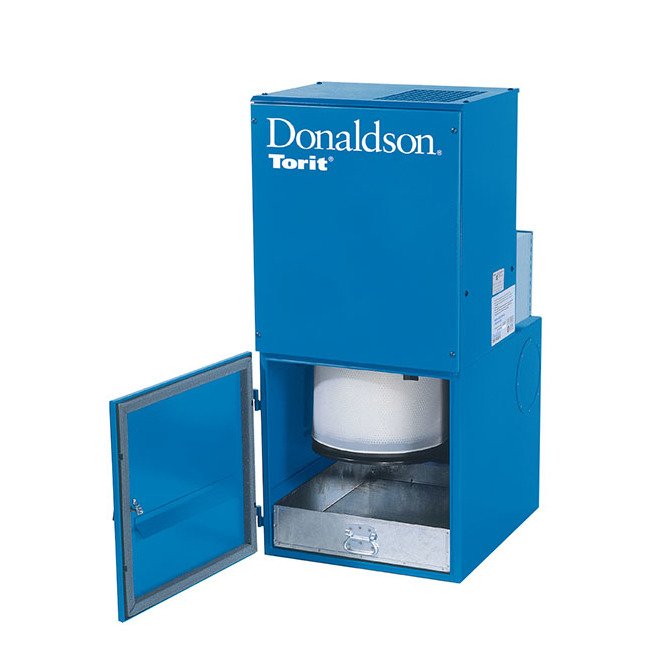

The Vibra Shake™ Series 2400 Cubic Feet Per Minute (CFM) Dust Collector is a top-tier solution for institutions requiring high-efficiency dust collection. Featuring a proprietary Pleatloc™ corrugation for excellent self-cleaning and extended filter life, this collector captures both coarse and submicron particles. With a compact, self-contained design and easy filter maintenance, it ensures a cleaner work environment and maximizes productivity. Ideal for reclaiming precious metals and reducing maintenance costs, this collector meets stringent industrial standards.
Product Specifications
Applications
A self-cleaning collector for intermittent applications where high collection efficiency is essential, such as reclaiming precious metals.Two-stage cartridge for high-efficiency filtration on both coarse and fine dustsCompact, self-contained collector design allows placement flexibility and saves floor spacePreassembled for easy, low-cost installation - no need for compressed airSelection of inlet size and location for installation flexibilityRecirculates filtered air saving heating and cooling costsProvides a cleaner work environment for maximum productivityReduces plant maintenance costs

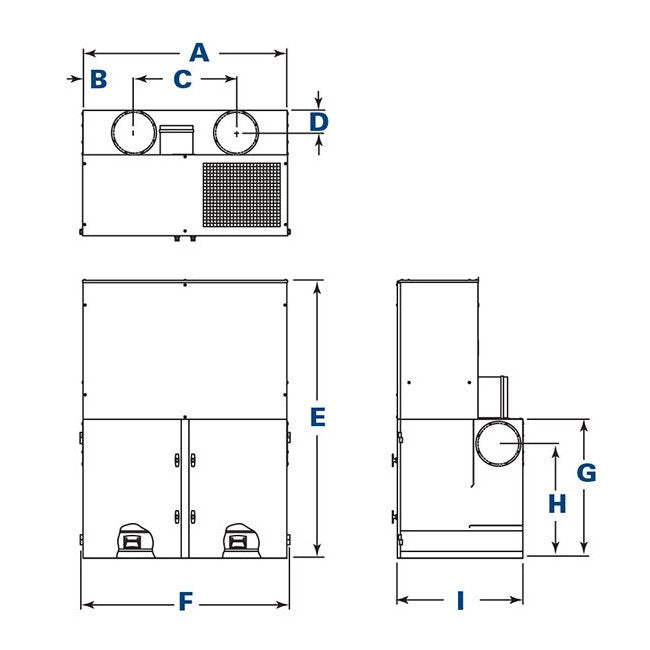

Dimensions Dimension A
50.0 in | 1270 mm
Dimensions Dimension B
12.5 in | 317.5 mm
Dimensions Dimension C
25.0 in | 635.0 mm
Dimensions Dimension D
5.5 in | 139.7 mm
Dimensions Dimension E
69.2 in | 1757.7 mm
Dimensions Dimension F
51.3 in | 1303.0 mm
Dimensions Dimension G
34.2 in | 868.7 mm
Dimensions Dimension H
28.1 in | 713.7 mm
Dimensions Dimension I
33.0 in | 838.2 mm
Dimensions Dimension M
48.0 in | 1219.2 mm

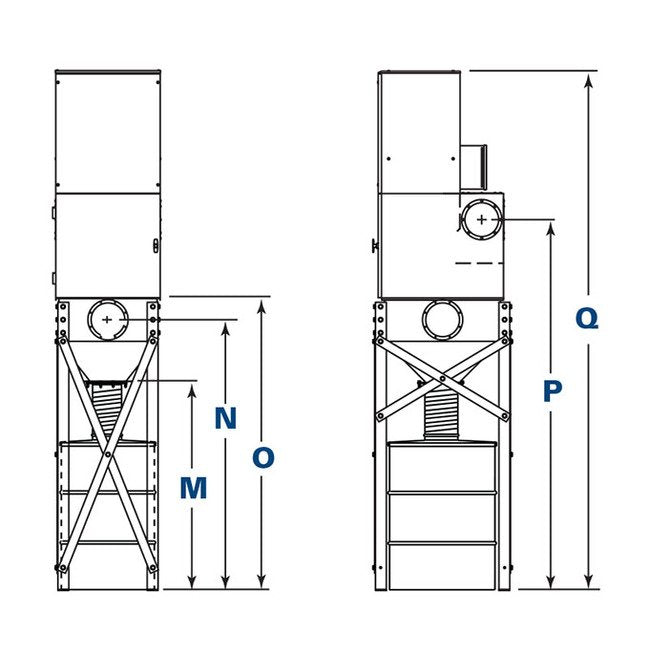

Dimensions Dimension P
103.6 in | 2631.4 mm
Dimensions Dimension Q
144.7 in | 3675.4 mm
Features

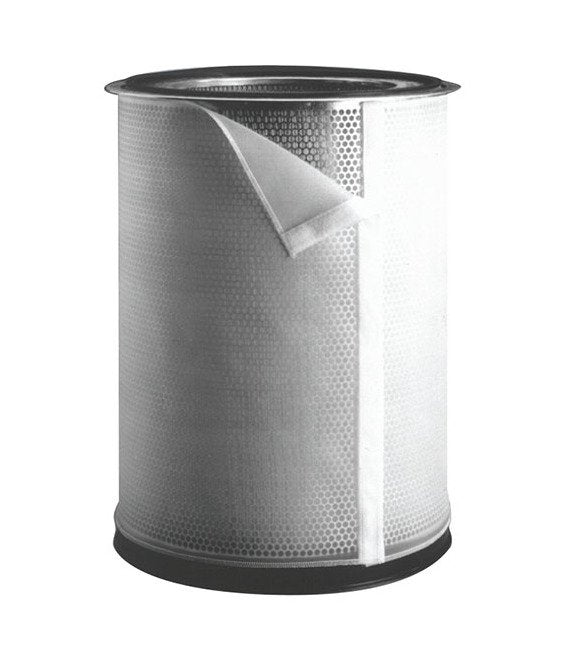

Vibra Shake™ cartridge filter features proprietary Pleatloc™ corrugation that assures uniform pleat spacing for better self-cleaning and longer filter lifeFilter screen captures coarse and fibrous particlesSubmicron particulates pass through the filter screen and are trapped by the inner layer of mediaGalvanized outer liner protects filter mediaEasy filter changeout for quicker maintenance
Specifications Dust Drawer Shipping Weight
685 lb | 310.7 kg
Specifications Dust Drawer Volume
3.6 ft³ | 0.10 m³
Specifications Filter Area
270 ft² | 25.1 m²
Specifications Frequency
60 Hz
Specifications Hopper Shipping Weight
960 lb | 435.4 kg
Specifications Nominal Airflow
2400 ft³/min | 4077 m³/h
Specifications Sound Level
81 dBA
