Vibra Shake™ Series 550 CFM Dust Collector
Vibra Shake™ Series 550 CFM Dust Collector
SKU:VIB-b13b26
Efficient Vibra Shake™ Series 550 CFM Dust Collector for high-performance filtration in precious metal reclamation applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Vibra Shake™ Series 550 CFM Dust Collector
$2,599.99
Quantity: 1
Claim Your Seller Account
Vibra Shake™ Series 550 CFM Dust Collector
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

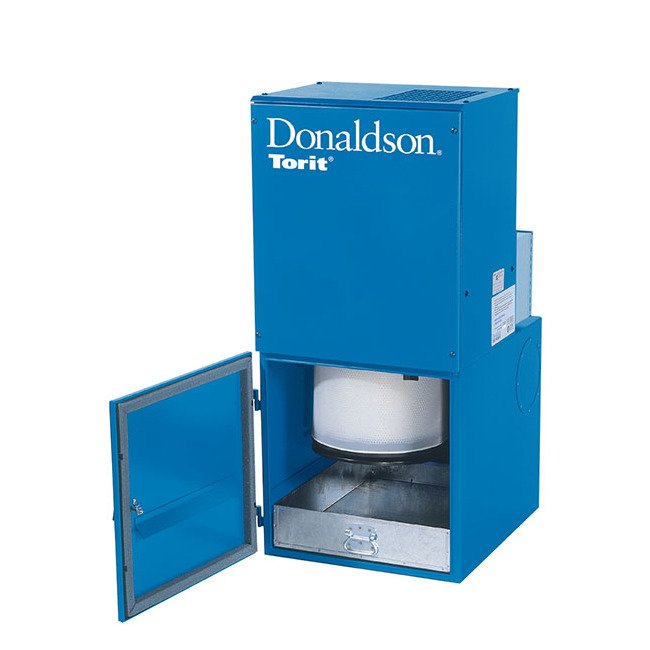

The Vibra Shake™ Series 550 Cubic Feet Per Minute (ft³/min) Nominal Airflow Dust Collector is designed for high-efficiency filtration in intermittent applications, ideal for reclaiming precious metals. Featuring a Vibra Shake™ cartridge filter with proprietary Pleatloc™ corrugation for self-cleaning and longer filter life, this collector captures coarse/fibrous particles and submicron particulates. With a galvanized outer liner protecting the media and easy filter changeout, it ensures minimal maintenance and maximum productivity. Compact, flexible, and preassembled for easy installation, this unit saves space and costs while offering a cleaner work environment.
Product Specifications
Applications
A self-cleaning collector for intermittent applications where high collection efficiency is essential, such as reclaiming precious metals.Two-stage cartridge for high-efficiency filtration on both coarse and fine dustsCompact, self-contained collector design allows placement flexibility and saves floor spacePreassembled for easy, low-cost installation - no need for compressed airSelection of inlet size and location for installation flexibilityRecirculates filtered air saving heating and cooling costsProvides a cleaner work environment for maximum productivityReduces plant maintenance costs

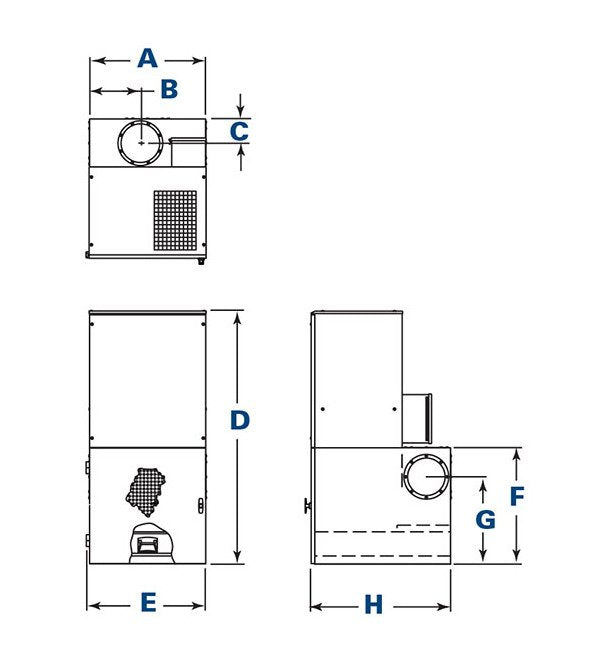

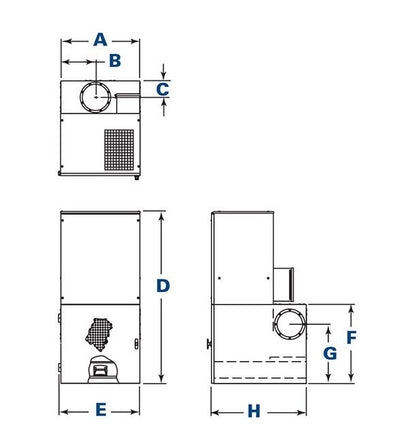

Dimensions Dimension A
24.0 in | 609.6 mm
Dimensions Dimension B
12.0 in | 304.8 mm
Dimensions Dimension C
5.0 in | 127.0 mm
Dimensions Dimension D
52.2 in | 1325.9 mm
Dimensions Dimension E
24.7 in | 627.4 mm
Dimensions Dimension F
24.1 in | 612.1 mm
Dimensions Dimension G
18.1 in | 459.7 mm
Dimensions Dimension H
30.8 in | 782.3 mm

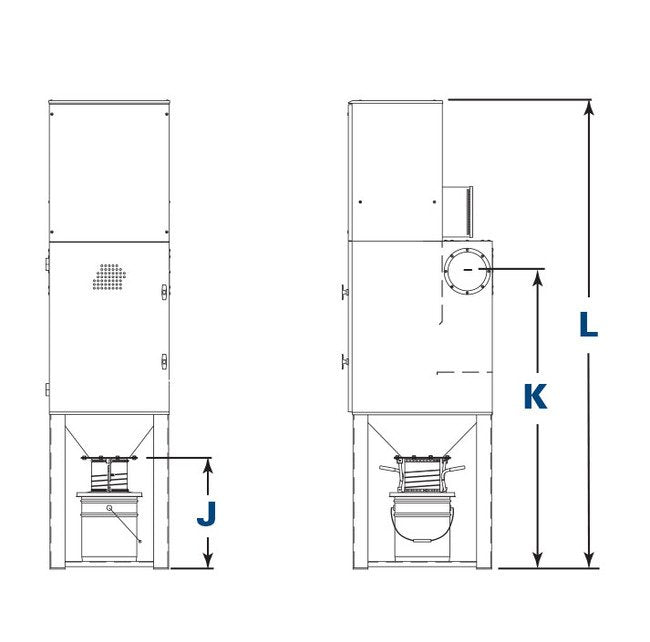

Dimensions Dimension J
22.3 in | 566.4 mm
Dimensions Dimension K
49.5 in | 1257.3 mm
Dimensions Dimension L
83.7 in | 2126.0 mm

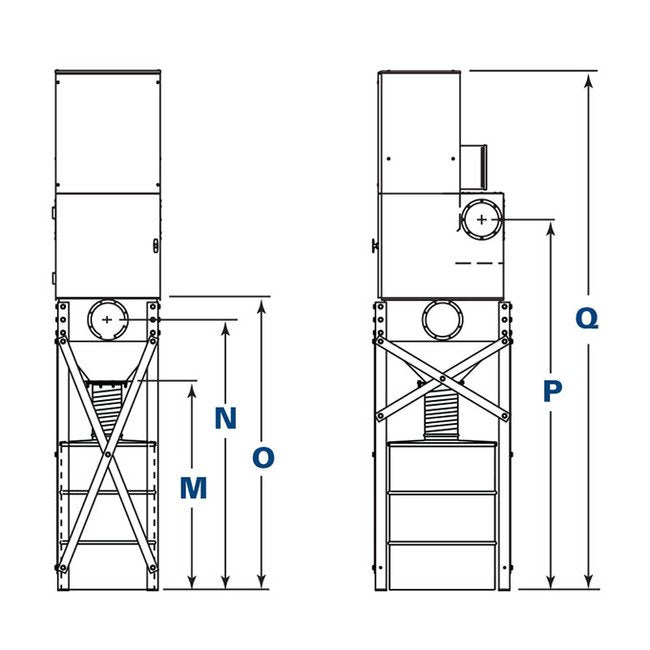

Dimensions Dimension M
48.0 in | 1219.2 mm
Dimensions Dimension N
62.3 in | 1582.4 mm
Dimensions Dimension O
67.3 in | 1709.4 mm
Dimensions Dimension P
85.3 in | 2166.6 mm
Dimensions Dimension Q
119.4 in | 3032.8 mm
Features

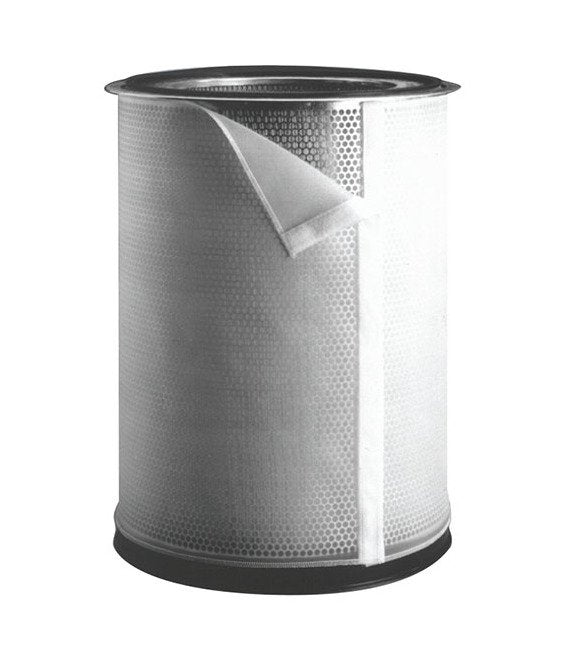

Vibra Shake™ cartridge filter features proprietary Pleatloc™ corrugation that assures uniform pleat spacing for better self-cleaning and longer filter lifeFilter screen captures coarse and fibrous particlesSubmicron particulates pass through the filter screen and are trapped by the inner layer of mediaGalvanized outer liner protects filter mediaEasy filter changeout for quicker maintenance
Specifications Dust Drawer Shipping Weight
350 lb | 158.8 kg
Specifications Dust Drawer Volume
1.8 ft³ | 0.05 m³
Specifications Filter Area
65 ft² | 6.0 m²
Specifications Frequency
60 Hz
Specifications Hopper Shipping Weight
490 lb | 222.3 kg
Specifications Nominal Airflow
550 ft³/min | 934 m³/h
Specifications Sound Level
69 dBA
