Vibro-Leveler Machine Mount
Vibro-Leveler Machine Mount
SKU:BUS-ae091f
Enhance machinery stability with our Vibro-Leveler Machine Mount. Easy installation, high load capacity, and superior vibration protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Vibro-Leveler Machine Mount
$29.99
Quantity: 1
Claim Your Seller Account
Vibro-Leveler Machine Mount
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

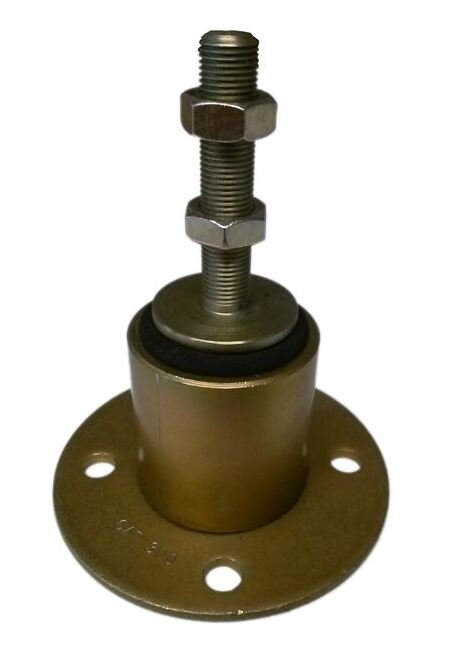

Enhance machinery stability with our Vibro-Leveler Machine Mount. Designed with a sturdy inner cylinder and bonded rubber insulation, it installs quickly, offering excellent vibration and shock protection. Each mount can handle up to 400 lbs, with minimal deflection under load. With a height of 6 inches and various diameter specifications, this mount meets high-quality standards for durability and performance. Made in the US. *Prop 65 Warning: Contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Product Specifications
Specifications A Height Floor To Top Of Nut Min Ht Above Floor
3.50 in
Specifications B Height Oa Mount Including Stud
6.00 in
Specifications Country Of Origin
US
Specifications C Height Of Stud Above Lower Nut
2.50 in
Specifications D Diamter Of Stud
1/2 in
Specifications E Diameter Of Housing
2.13 in
Specifications F Bolt Hole Center
3.50 in
Specifications G Diamtere Of Base
4.44 in
Specifications H Flange Height
0.19 in
Specifications I Diameter Of Bolt Holes In Base
0.38 in
Specifications J Height Of Body Above Flange
2.75 in
Specifications Load Capacity Of Each Mounting
400 lbs
Specifications Max Avg Deflection Under Rated Load
0.0625
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
