Vibro-Leveler Machine Mount for Precision Machinery Stability
Vibro-Leveler Machine Mount for Precision Machinery Stability
SKU:BUS-057af3
Enhance machinery stability with Vibro-Leveler Machine Mount. Quick installation, robust design for vibration and shock protection. Made in the USA.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Vibro-Leveler Machine Mount for Precision Machinery Stability
$29.99
Quantity: 1
Claim Your Seller Account
Vibro-Leveler Machine Mount for Precision Machinery Stability
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

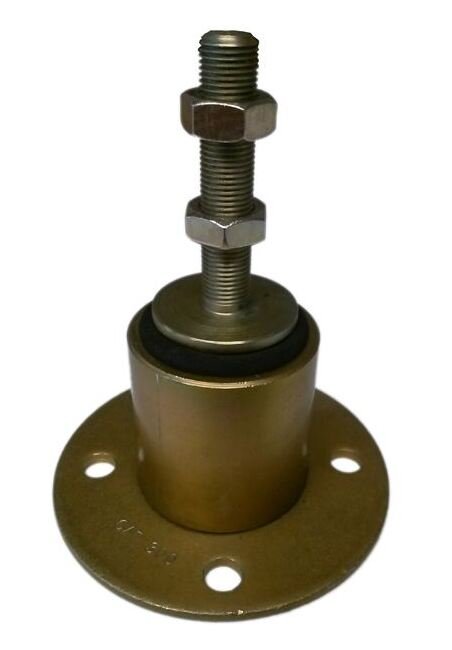

The Vibro-Leveler Machine Mount is expertly engineered to provide exceptional stability for precision machinery. Each mount features an inner cylinder with an attached stud, isolated from the outer shell by a mechanically bonded rubber wall. This design allows for quick and easy installation without the need for special parts or maintenance. Protect your machinery from the damaging effects of vibration and shock with these mounts, which offer a load capacity of 10 lbs and maximum deflection under rated load of 0.0625. Made in the USA, the Vibro-Leveler Machine Mount also comes with a Prop 65 Warning for compliance.
Product Specifications
Specifications A Height Floor To Top Of Nut Min Ht Above Floor
1.13 in
Specifications B Height Oa Mount Including Stud
2.13 in
Specifications Country Of Origin
US
Specifications C Height Of Stud Above Lower Nut
1.00 in
Specifications D Diamter Of Stud
5/16 in
Specifications E Diameter Of Housing
1.25 in
Specifications F Bolt Hole Center
1.88 in
Specifications G Diamtere Of Base
2.50 in
Specifications H Flange Height
0.17 in
Specifications I Diameter Of Bolt Holes In Base
0.25 in
Specifications J Height Of Body Above Flange
0.56 in
Specifications Load Capacity Of Each Mounting
10 lbs
Specifications Max Avg Deflection Under Rated Load
0.0625
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
