Vibro-Leveler Machine Mount - Heavy Duty Bushing for Vibration Isolation
Vibro-Leveler Machine Mount - Heavy Duty Bushing for Vibration Isolation
SKU:BUS-c5551a
Protect machinery with ease using the Vibro-Leveler Machine Mount, ensuring stability and longevity in high-vibration environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Vibro-Leveler Machine Mount - Heavy Duty Bushing for Vibration Isolation
$29.99
Quantity: 1
Claim Your Seller Account
Vibro-Leveler Machine Mount - Heavy Duty Bushing for Vibration Isolation
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

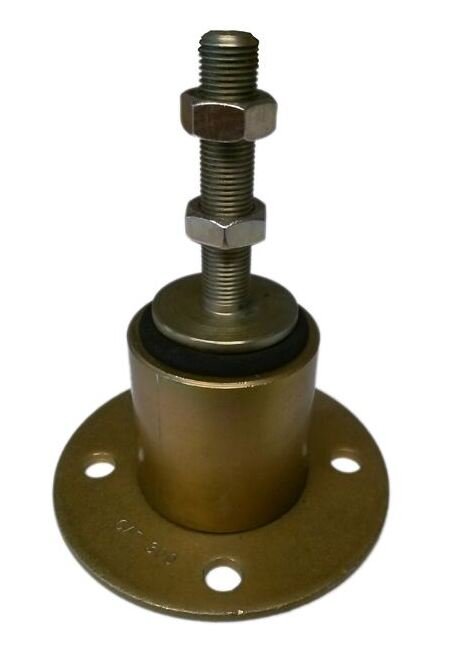

The Vibro-Leveler Machine Mount is a robust solution designed to effectively isolate machinery from damaging vibration and shock effects. Each mount features a load capacity of 200 lbs and ensures minimal deflection under load, measuring at 0.0625. Its simple yet durable construction includes an inner cylinder with a mechanically bonded rubber wall, offering quick and easy installation without special parts or maintenance requirements. With precise dimensions and sturdy materials, this mount provides reliable protection for equipment while maintaining stability and performance.
Product Specifications
Specifications A Height Floor To Top Of Nut Min Ht Above Floor
2.25 in
Specifications B Height Oa Mount Including Stud
3.75 in
Specifications Country Of Origin
US
Specifications C Height Of Stud Above Lower Nut
1.38 in
Specifications D Diamter Of Stud
1/2 in
Specifications E Diameter Of Housing
1.75 in
Specifications F Bolt Hole Center
2.75 in
Specifications G Diamtere Of Base
3.50 in
Specifications H Flange Height
0.17 in
Specifications I Diameter Of Bolt Holes In Base
0.38 in
Specifications J Height Of Body Above Flange
1.50 in
Specifications Load Capacity Of Each Mounting
200 lbs
Specifications Max Avg Deflection Under Rated Load
0.0625
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
