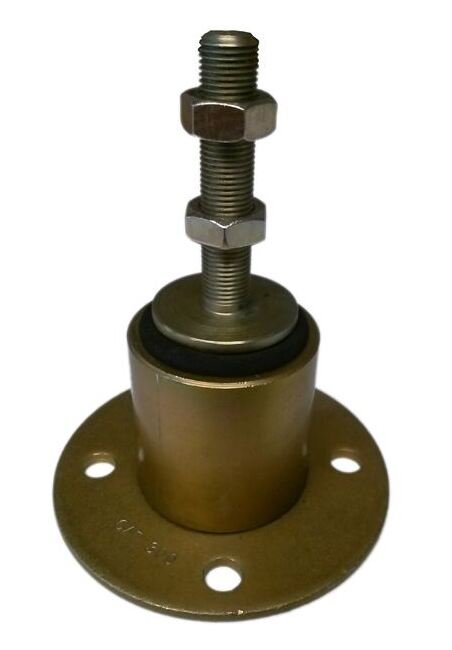

Vibro-Leveler Machine Mount - Industrial Grade Bushing Solution
Vibro-Leveler Machine Mount - Industrial Grade Bushing Solution
SKU:BUS-54f751
Dampen vibrations and safeguard machinery with this sturdy Vibro-Leveler Machine Mount. Easy to install, no maintenance needed.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Vibro-Leveler Machine Mount - Industrial Grade Bushing Solution
$29.99
Quantity: 1
Claim Your Seller Account
Vibro-Leveler Machine Mount - Industrial Grade Bushing Solution
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vibro-Leveler Machine Mount is a robust solution designed to dampen and isolate vibrations, protecting machinery from potential damage. Crafted with a mechanically bonded rubber wall, each mount can support up to 500 lbs effortlessly. Its easy installation process requires no specialized parts or maintenance, offering quick setup and peace of mind. With dimensions meeting industry standards and a construction that nullifies up to 0.0625 inches of deflection under load, this mount ensures stability and longevity, making it an ideal choice for industrial applications.
Product Specifications
Specifications A Height Floor To Top Of Nut Min Ht Above Floor
3.50 in
Specifications B Height Oa Mount Including Stud
6.00 in
Specifications Country Of Origin
US
Specifications C Height Of Stud Above Lower Nut
2.50 in
Specifications D Diamter Of Stud
1/2 in
Specifications E Diameter Of Housing
2.13 in
Specifications F Bolt Hole Center
3.50 in
Specifications G Diamtere Of Base
4.44 in
Specifications H Flange Height
0.19 in
Specifications I Diameter Of Bolt Holes In Base
0.38 in
Specifications J Height Of Body Above Flange
2.75 in
Specifications Load Capacity Of Each Mounting
500 lbs
Specifications Max Avg Deflection Under Rated Load
0.0625
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
