Vibro-Leveler Machine Mount - Vibration and Shock Absorption Solution
Vibro-Leveler Machine Mount - Vibration and Shock Absorption Solution
SKU:BUS-f2a5d1
Protect your machinery with Vibro-Leveler Machine Mount - efficient vibration and shock protection.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Vibro-Leveler Machine Mount - Vibration and Shock Absorption Solution
$59.99
Quantity: 1
Claim Your Seller Account
Vibro-Leveler Machine Mount - Vibration and Shock Absorption Solution
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

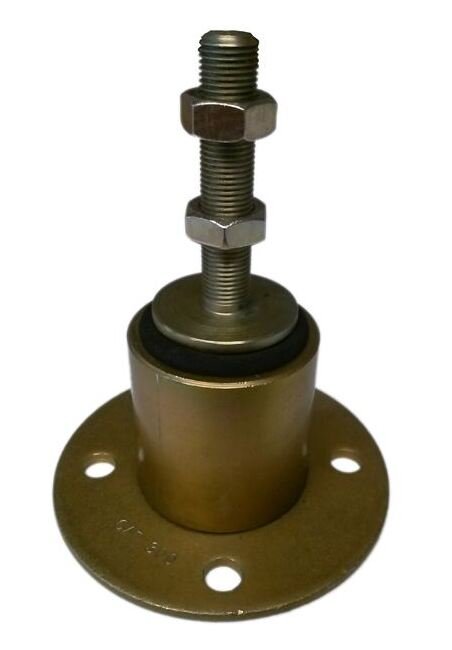

The Vibro-Leveler Machine Mount is a robust solution designed to effectively dampen vibration and shock, safeguarding machinery from potential damage. Each mount features an inner cylinder with an attached stud, isolated from the outer shell by a mechanically bonded rubber wall. With a load capacity of 1000 lbs and minimal deflection under load, these mounts offer quick installation with no need for special parts or maintenance. The design protects equipment, ensuring optimal performance and longevity in industrial settings.
Product Specifications
Specifications A Height Floor To Top Of Nut Min Ht Above Floor
4.75 in
Specifications B Height Oa Mount Including Stud
8.38 in
Specifications Country Of Origin
US
Specifications C Height Of Stud Above Lower Nut
4.00 in
Specifications D Diamter Of Stud
1 in
Specifications E Diameter Of Housing
4.50 in
Specifications F Bolt Hole Center
6.50 in
Specifications G Diamtere Of Base
7.75 in
Specifications H Flange Height
0.38 in
Specifications I Diameter Of Bolt Holes In Base
0.63 in
Specifications J Height Of Body Above Flange
3.00 in
Specifications Load Capacity Of Each Mounting
1000 lbs
Specifications Max Avg Deflection Under Rated Load
0.0625
