Vibro-Leveler Machine Mounting Solution
Vibro-Leveler Machine Mounting Solution
SKU:BUS-9d3e6c
Protect your machinery with ease using Vibro-Leveler Machine Mounts, designed to absorb vibrations and shocks efficiently.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Vibro-Leveler Machine Mounting Solution
$29.99
Quantity: 1
Claim Your Seller Account
Vibro-Leveler Machine Mounting Solution
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

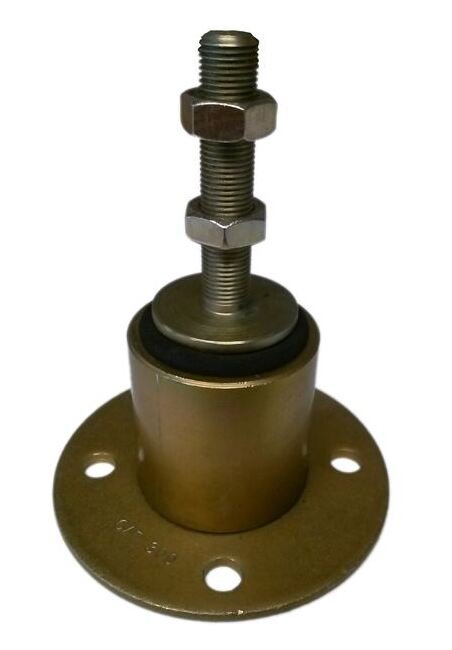

The Vibro-Leveler Machine Mount is an advanced solution designed to protect machinery from harmful vibrations and shocks. Featuring a sturdy construction with mechanically bonded rubber insulation, these mounts offer a superior load capacity of 750 lbs and minimal deflection under rated load. With quick and easy installation, no special maintenance requirements, and complete assembly, these mounts ensure optimal performance and durability. Made in the US, this product also comes with a Prop 65 warning.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Height Floor To Top Of Nut Min Ht Above Floor
4.75 in
Specifications B Height Oa Mount Including Stud
8.38 in
Specifications Country Of Origin
US
Specifications C Height Of Stud Above Lower Nut
4.00 in
Specifications D Diamter Of Stud
1 in
Specifications E Diameter Of Housing
4.50 in
Specifications F Bolt Hole Center
6.50 in
Specifications G Diamtere Of Base
7.75 in
Specifications H Flange Height
0.38 in
Specifications I Diameter Of Bolt Holes In Base
0.63 in
Specifications J Height Of Body Above Flange
3.00 in
Specifications Load Capacity Of Each Mounting
750 lbs
Specifications Max Avg Deflection Under Rated Load
0.0625
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
