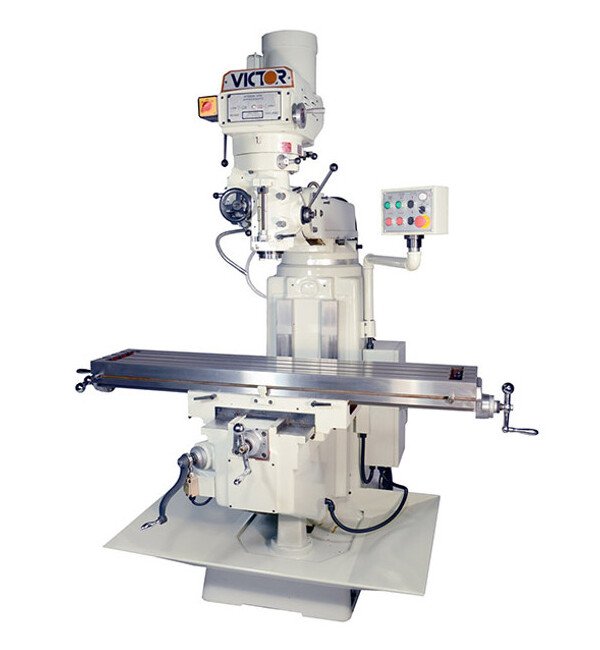

Victor Inch Variable Speed Vertical Knee Mill Machine
Victor Inch Variable Speed Vertical Knee Mill Machine
SKU:MIL-913d89
Enhance machining precision with the Victor Variable Speed Knee Mill Machine's robust construction and powerful 5 hp motor.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Victor Inch Variable Speed Vertical Knee Mill Machine
$24,999.00
Quantity: 1
Claim Your Seller Account
Victor Inch Variable Speed Vertical Knee Mill Machine
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Victor Inch Variable Speed Vertical Knee Mill Machine is meticulously engineered to meet the highest quality standards, featuring a rigid one-piece bed and a double wall designed box structure column casting for unmatched reliability and precision. With a powerful 5 hp spindle motor and a range of accessories for enhanced functionality, this machine delivers exceptional performance and durability for industrial machining applications.
Product Specifications
Features Features
Table elevating motorCoolant systemAuto lubrication systemMeehanite castingHardened and ground table and slidewaysRigid one-piece bed and a special double wall designed box structure column castingSquare slidewaysTurcite-B on X & Y-axis slidewaysDouble saddle locksPrecision hand scrapedHigh precision chromed quillNMTB #40; spindle taper6" spindle quill travel
Standard Accessories Standard Accessories
Table elevating motorCoolant systemAuto lubrication systemControl panelDraw barFront rubber way coverRear rubber way coverTool box with tools
Technical Specs Brands
Victor Machinery Solutions, Inc.
Technical Specs Cross Travel Y Axis
16.2 in
Technical Specs Distance From Spindle Nose To Table
15.5 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Longitudinal Travel With Power Feed
36 in
Technical Specs Longitudinal Travel X Axis With No Powerfeed
40 in
Technical Specs Net Weight
3900 lb
Technical Specs Optional Machine Accessories
Coolant Chip TrayHalogen Work LightHorizontal Milling AttachmentPowerfeed on X, Y, Knee AxisMilling ViseCoolant SystemRiser blockRotary TableAir Power DrawbarDigital ReadoutClamping KitR8 collet set
Technical Specs Overall Depth
77.18 in
Technical Specs Overall Height
105 in
Technical Specs Overall Width
108 in
Technical Specs Packing Height
81 in
Technical Specs Packing Length
90 in
Technical Specs Packing Width
63 in
Technical Specs Quill Diameter
4.13 in
Technical Specs Quill Feeds
0.0017 in | 0.0032 in | 0.0053 in | 0.04 mm | 0.08 mm | 0.13 mm
Technical Specs Quill Travel
6 in
Technical Specs Slide Ways
Square
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
5 hp
Technical Specs Spindle Speeds
60 to 3600 rpm
Technical Specs Spindle Taper
NMTB #40;
Technical Specs Vertical Knee Travel
18.1 in
