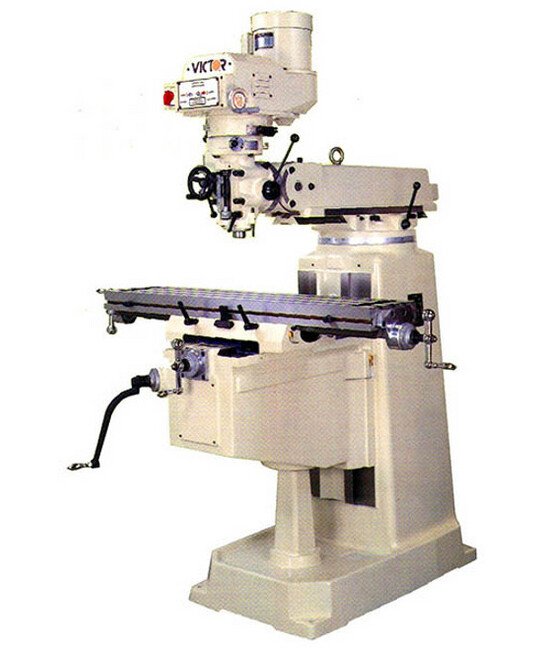

Victor Inch Variable Speed Vertical Knee Mill with 10x50 Table
Victor Inch Variable Speed Vertical Knee Mill with 10x50 Table
SKU:MIL-a189b4
Precision meets power with Victor's Inch Variable Speed Vertical Knee Mill. Ideal for high-precision machining tasks.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Victor Inch Variable Speed Vertical Knee Mill with 10x50 Table
$24,999.00
Quantity: 1
Claim Your Seller Account
Victor Inch Variable Speed Vertical Knee Mill with 10x50 Table
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Victor Inch Variable Speed Vertical Knee Mill is a precision-engineered machine designed for exceptional performance and longevity. With a rigid one-piece bed and box structure column casting, this mill guarantees optimal stability. It features Meehanite casting, hardened and ground table and slideways, and Turcite-B on X & Y-axis slideways for impeccable precision. Equipped with a high precision chromed quill and a built-in one shot lube system, the mill ensures efficient operations and minimal maintenance requirements. The 3 HP frequency inverter drive motor offers versatile speed control, making it ideal for a wide range of machining tasks.
Product Specifications
Features Features
Meehanite castingHardened and ground table and slidewaysRigid one-piece bed and box structure column castingTurcite-B on X & Y-axis slidewaysDouble saddle locksPrecision hand scrapedHigh precision chromed quillBuilt-in one shot lube systemJF-3EVS 3 HP frequency inverter drive motor
Standard Accessories Standard Accessories
Draw barFront rubber way coverRear rubber way coverOne-shot lube systemTool box with tools
Technical Specs Brands
Victor Machinery Solutions, Inc.
Technical Specs Cross Travel Y Axis
16 in
Technical Specs Distance From Spindle Nose To Table
18.5 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Longitudinal Travel With Power Feed
33 in
Technical Specs Longitudinal Travel X Axis With No Powerfeed
36 in
Technical Specs Net Weight
2640 lb
Technical Specs Optional Machine Accessories
Coolant Chip TrayHalogen Work LightHorizontal Milling AttachmentPowerfeed on X, Y, Knee AxisMilling ViseCoolant SystemRiser blockRotary TableAir Power DrawbarDigital ReadoutClamping KitR8 collet set
Technical Specs Overall Depth
76.15 in
Technical Specs Overall Height
83 in
Technical Specs Overall Width
89 in
Technical Specs Packing Height
76 in
Technical Specs Packing Length
70 in
Technical Specs Packing Width
62 in
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Feeds
0.0017 in | 0.0032 in | 0.0053 in | 0.04 mm | 0.08 mm | 0.13 mm
Technical Specs Quill Travel
5 in
Technical Specs Slide Ways
Dovetail
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4200 rpm
Technical Specs Spindle Taper
R8
Technical Specs Vertical Knee Travel
16 in
