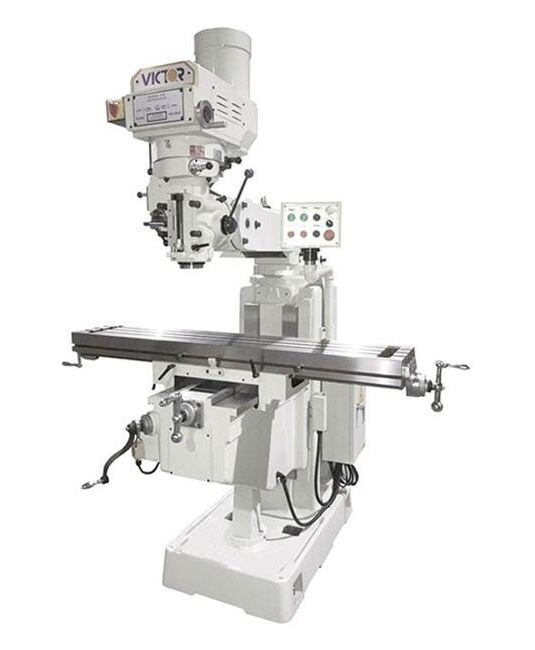

Victor Variable Speed Vertical Knee Mill Machine with 10 x 54 Inch Tables
Victor Variable Speed Vertical Knee Mill Machine with 10 x 54 Inch Tables
SKU:MIL-1110a3
Enhance milling precision with Victor's Variable Speed Vertical Knee Mill Machine, designed for durability and accuracy in industrial operations.
Regular price
$25,999.00
Regular price
Sale price
$25,999.00
Unit price
per
Initiate Order
Victor Variable Speed Vertical Knee Mill Machine with 10 x 54 Inch Tables
$25,999.00
Quantity: 1
Claim Your Seller Account
Victor Variable Speed Vertical Knee Mill Machine with 10 x 54 Inch Tables
$25,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Victor Variable Speed Vertical Knee Mill Machine offers precision and reliability for industrial milling operations. Featuring a rigid one-piece bed, double wall box structure column casting, and hardened/groud table and slideways, this machine ensures durability and accuracy. With a 5 HP motor, auto lubrication system, and high precision chromed quill, it delivers exceptional performance and smooth operation. Ideal for institutional buyers seeking top-quality milling solutions.
Product Specifications
Features Features
Table elevating motorAuto lubrication systemMeehanite castingHardened and ground table and slidewaysRigid one-piece bed and a special double wall designed box structure column castingSquare slidewaysTurcite-B on X & Y-axis slidewaysDouble saddle locksPrecision hand scrapedHigh precision chromed quillNMTB #40; spindle taper6" spindle quill travelJF-5EVS 5 HP frequency inverter drive motor
Standard Accessories Standard Accessories
Table elevating motorAuto lubrication systemControl panelDraw barFront rubber way coverRear rubber way coverOne-shot lube systemTool box with tools
Technical Specs Brands
Victor Machinery Solutions, Inc.
Technical Specs Cross Travel Y Axis
16 in
Technical Specs Distance From Spindle Nose To Table
20.75 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Longitudinal Travel With Power Feed
36 in
Technical Specs Longitudinal Travel X Axis With No Powerfeed
40 in
Technical Specs Net Weight
3590 lb
Technical Specs Optional Machine Accessories
Coolant Chip TrayHalogen Work LightHorizontal Milling AttachmentPowerfeed on X, Y, Knee AxisMilling ViseCoolant SystemRiser blockRotary TableAir Power DrawbarDigital ReadoutClamping KitR8 collet set
Technical Specs Overall Depth
77.18 in
Technical Specs Overall Height
105 in
Technical Specs Overall Width
105 in
Technical Specs Packing Height
76 in
Technical Specs Packing Length
70 in
Technical Specs Packing Width
62 in
Technical Specs Quill Diameter
4.13 in
Technical Specs Quill Feeds
0.0017 in | 0.0032 in | 0.0053 in | 0.04 mm | 0.08 mm | 0.13 mm
Technical Specs Quill Travel
6 in
Technical Specs Slide Ways
Square
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
5 hp
Technical Specs Spindle Speeds
60 to 3600 rpm
Technical Specs Spindle Taper
NMTB #40;
Technical Specs Vertical Knee Travel
16 in
