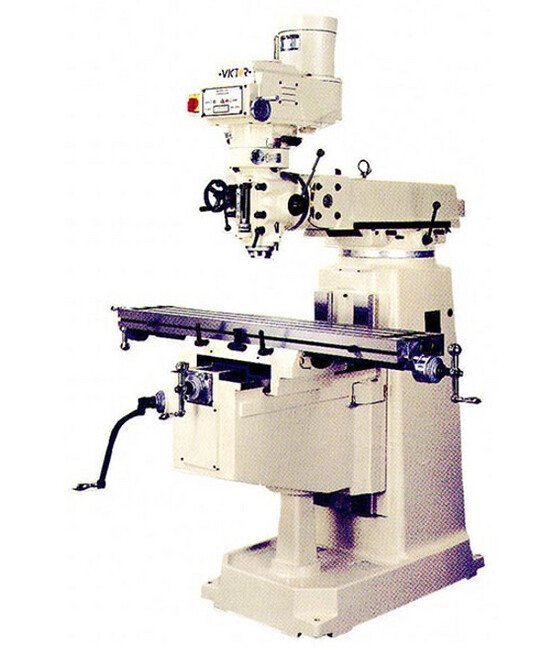

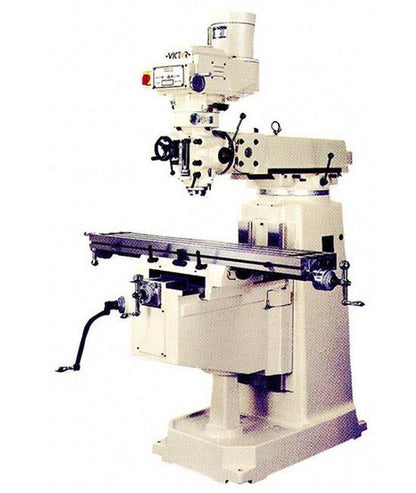

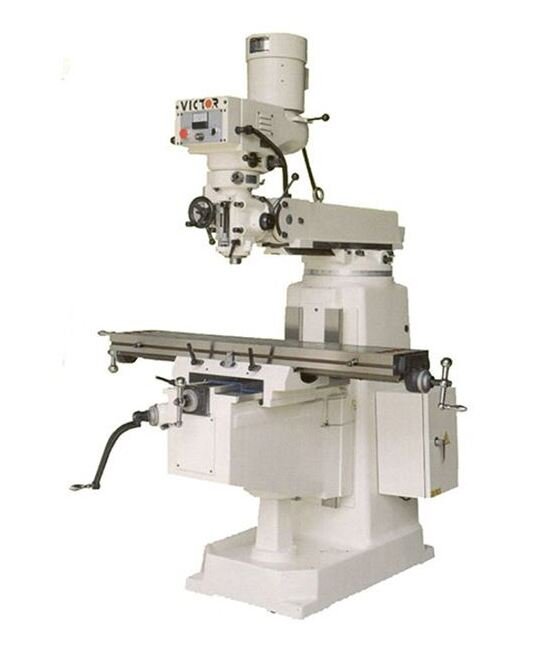

The Victor Variable Speed Vertical Knee Mill Machine with a 10x54 inch table is an industrial-grade milling machine designed with precision and durability in mind. Featuring a rigid one-piece bed and box structure column casting, this mill ensures stability and consistent performance. Meehanite casting, hardened and ground table and slideways, and a high precision chromed quill provide unparalleled accuracy. With a 3 HP frequency inverter drive motor, this machine offers versatility and power for a wide range of milling applications.
Product Specifications
Features Features
Meehanite castingHardened and ground table and slidewaysRigid one-piece bed and box structure column castingTurcite-B on X & Y-axis slidewaysDouble saddle locksPrecision hand scrapedHigh precision chromed quillBuilt-in one shot lube systemJF-4EVS 3 HP frequency inverter drive motor
Standard Accessories Standard Accessories
Draw barFront rubber way coverRear rubber way coverOne-shot lube systemTool box with tools
Technical Specs Brands
Victor Machinery Solutions, Inc.
Technical Specs Cross Travel Y Axis
16 in
Technical Specs Distance From Spindle Nose To Table
16.88 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Longitudinal Travel With Power Feed
36 in
Technical Specs Longitudinal Travel X Axis With No Powerfeed
40 in
Technical Specs Net Weight
3450 lb
Technical Specs Optional Machine Accessories
Coolant Chip TrayHalogen Work LightHorizontal Milling AttachmentPowerfeed on X, Y, Knee AxisMilling ViseCoolant SystemRiser blockRotary TableAir Power DrawbarDigital ReadoutClamping KitR8 collet set
Technical Specs Overall Depth
77.18 in
Technical Specs Overall Height
84 in
Technical Specs Overall Width
105 in
Technical Specs Packing Height
76 in
Technical Specs Packing Length
70 in
Technical Specs Packing Width
62 in
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Feeds
0.0017 in | 0.0032 in | 0.0053 in | 0.04 mm | 0.08 mm | 0.13 mm
Technical Specs Quill Travel
5 in
Technical Specs Slide Ways
Square
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4200 rpm
Technical Specs Spindle Taper
R8
Technical Specs Vertical Knee Travel
16 in
