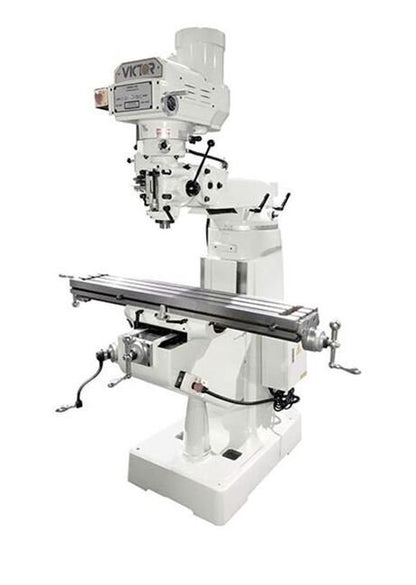

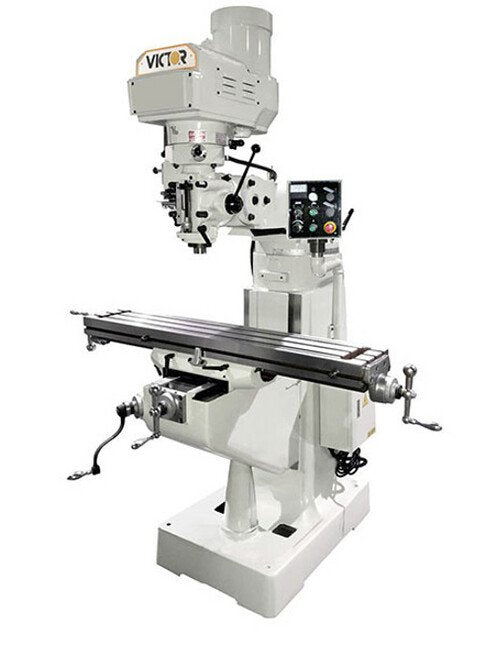

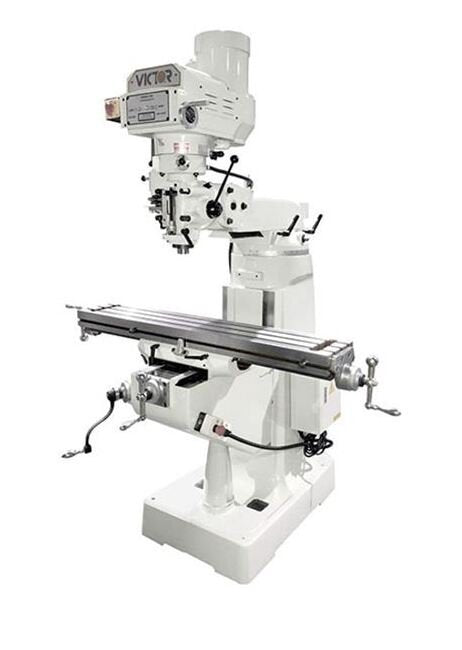

Victor Variable Speed Vertical Knee Mill with 9x49 Table
Victor Variable Speed Vertical Knee Mill with 9x49 Table
SKU:MIL-d92d6b
Experience precision and reliability with Victor's Vertical Knee Mill. Ideal for industrial use with optional accessories for added functionality.
Regular price
$18,799.99
Regular price
Sale price
$18,799.99
Unit price
per
Initiate Order
Victor Variable Speed Vertical Knee Mill with 9x49 Table
$18,799.99
Quantity: 1
Claim Your Seller Account
Victor Variable Speed Vertical Knee Mill with 9x49 Table
$18,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Victor Inch Variable Speed Vertical Knee Mill Machine features precision engineering with Meehanite casting for durability. With a 3 HP frequency inverter drive motor, hardened and ground table, and rigid structure, it ensures reliability and consistent performance. Equipped with a variety of optional accessories like coolant systems, digital readout, and power feeds, this machine offers versatility and precision for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Meehanite castingHardened and ground table and slidewaysRigid one-piece bed and box structure column castingTurcite-B on X & Y-axis slidewaysDouble saddle locksPrecision hand scrapedHigh precision chromed quillBuilt-in one shot lube systemJF-3EVS 3 HP frequency inverter drive motor
Standard Accessories Standard Accessories
Draw barFront rubber way coverRear rubber way coverOne-shot lube systemTool box with tools
Technical Specs Brands
Victor Machinery Solutions, Inc.
Technical Specs Cross Travel Y Axis
12 in
Technical Specs Distance From Spindle Nose To Table
18.5 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Longitudinal Travel With Power Feed
32 in
Technical Specs Net Weight
2050 lb
Technical Specs Optional Machine Accessories
Coolant Chip TrayHalogen Work LightHorizontal Milling AttachmentPowerfeed on X, Y, Knee AxisMilling ViseCoolant SystemRiser blockRotary TableAir Power DrawbarDigital ReadoutClamping KitR8 collet set
Technical Specs Overall Depth
76.15 in
Technical Specs Overall Height
83 in
Technical Specs Overall Width
89 in
Technical Specs Packing Height
74 in
Technical Specs Packing Length
55 in
Technical Specs Packing Width
54 in
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Feeds
0.0017 in | 0.0032 in | 0.0053 in | 0.04 mm | 0.08 mm | 0.13 mm
Technical Specs Quill Travel
5 in
Technical Specs Slide Ways
Dovetail
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4200 rpm
Technical Specs Spindle Taper
R8
Technical Specs Vertical Knee Travel
16 in
