Vinyl Pull Tab Cap
Vinyl Pull Tab Cap
SKU:PUL-e18f60
MOCAP Vinyl Pull Tab Caps: Easy to use, moisture-resistant, and customizable in size and color. RoHS compliant for masking applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Vinyl Pull Tab Cap
$29.99
Quantity: 1
Claim Your Seller Account
Vinyl Pull Tab Cap
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

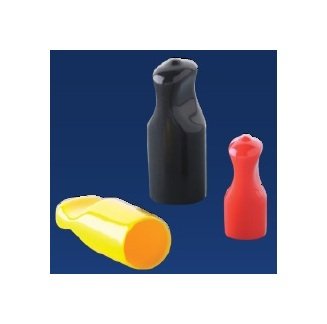

Enhance your parts with MOCAP's Vinyl Pull Tab Caps, designed for easy removal and offering superior protection from moisture and contaminants. These durable vinyl caps come in various sizes and colors, ensuring a secure fit with no additional tooling charges. Ideal for masking applications under 300°F, these pull tab caps are RoHS compliant and manufactured with precision using the dip molding process.
Product Specifications
Features 0
MOCAP stocks pull tab caps in many sizes for immediate shipment or we can manufacture the pull tab caps made to order with the fastest lead-times in the industry.Flexible vinyl plastic for snug fitErgonomic tab for easy removalSizes to fit 3/16 in to 1 1/8 in diameters
Manufacturing Notes 0
'D' dimension varies by size.Wall thickness is measured approximate 1/4 in (6.35 mm) from open end. Wall thickness increases slightly towards the closed end of the part.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic pull tab caps are often used as inexpensive and disposable single use masking caps for painting and coating processes under 300 °F.
Specifications Box Quantity
2100

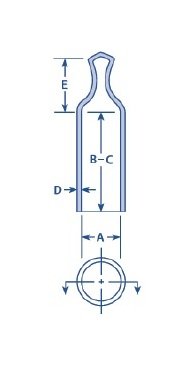

Specifications Inside Diameter Dimension A
0.750 in | 19.1 mm
Specifications Manufacturing Process
Dip Molded
Specifications Material
Vinyl
Specifications Maximum Inside Length Dimension C
1.500 in | 38.1 mm
Specifications Micro Pack Quantity
42
Specifications Minimum Inside Length Dimension B
0.250 in | 6.4 mm
Specifications Mini Pack Quantity
420
Specifications Standards
RoHS Compliant
Specifications Stocked Length
1 in
Specifications Tab Height Dimension E
0.826 in | 21.0 mm
Specifications Wall Thickness Dimension D
0.060 in | 1.5 mm
