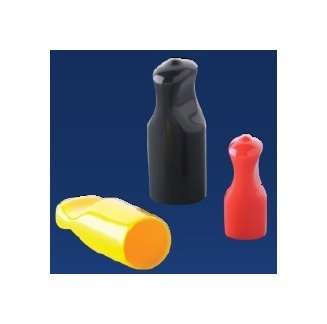

Vinyl Pull Tab Caps

Vinyl Pull Tab Caps

PUL-e05a32

MOCAP Vinyl Pull Tab Caps: Easy removal, secure fit, RoHS compliant, fast lead times. Ideal for masking applications under 300°F.

$29.99
$29.99
Sale

Initiate Order

Vinyl Pull Tab Caps

Vinyl Pull Tab Caps

$29.99

Quantity: 1

Claim Your Seller Account

Vinyl Pull Tab Caps

Vinyl Pull Tab Caps

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your protection needs with MOCAP Vinyl Pull Tab Caps. Designed for easy removal and excellent moisture resistance, these ergonomic caps provide a secure fit. Available in various colors, dimensions, and hardness options without extra tooling charges. Ideal for masking applications under 300°F, these flexible caps meet RoHS compliance and offer fast lead times. Equip your projects with MOCAP quality and efficiency.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0
MOCAP stocks pull tab caps in many sizes for immediate shipment or we can manufacture the pull tab caps made to order with the fastest lead-times in the industry.Flexible vinyl plastic for snug fitErgonomic tab for easy removalSizes to fit 3/16 in to 1 1/8 in diameters
Manufacturing Notes 0
'D' dimension varies by size.Wall thickness is measured approximate 1/4 in (6.35 mm) from open end. Wall thickness increases slightly towards the closed end of the part.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic pull tab caps are often used as inexpensive and disposable single use masking caps for painting and coating processes under 300 °F.

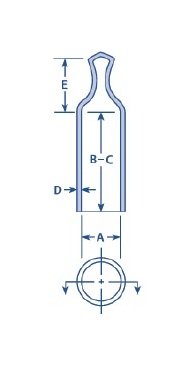

Specifications Box Quantity
5040
Specifications Inside Diameter Dimension A
0.500 in | 12.7 mm
Specifications Manufacturing Process
Dip Molded
Specifications Material
Vinyl
Specifications Maximum Inside Length Dimension C
1.500 in | 38.1 mm
Specifications Micro Pack Quantity
101
Specifications Minimum Inside Length Dimension B
0.250 in | 6.4 mm
Specifications Mini Pack Quantity
1008
Specifications Standards
RoHS Compliant
Specifications Stocked Length
1 in
Specifications Tab Height Dimension E
0.752 in | 19.1 mm
Specifications Wall Thickness Dimension D
0.060 in | 1.5 mm
