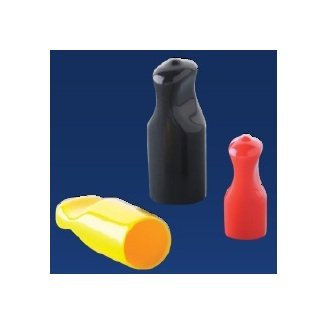

Vinyl Pull Tab Caps
Vinyl Pull Tab Caps
SKU:PUL-1304ce
Protect your components with MOCAP Vinyl Pull Tab Caps - Secure fit, easy removal, perfect for masking applications. RoHS compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Vinyl Pull Tab Caps
$39.99
Quantity: 1
Claim Your Seller Account
Vinyl Pull Tab Caps
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial processes with MOCAP Vinyl Pull Tab Caps. These ergonomic caps ensure easy removal, offering superior protection against moisture and contaminants. Made of flexible vinyl, these caps provide a snug fit without falling off during transportation. With various customization options available, including color choices and different dimensions, these RoHS compliant caps are ideal for masking applications under 300°F. Benefit from quick lead times for stock sizes or request made-to-order caps with no additional tooling charges.
Product Specifications
Features 0
MOCAP stocks pull tab caps in many sizes for immediate shipment or we can manufacture the pull tab caps made to order with the fastest lead-times in the industry.Flexible vinyl plastic for snug fitErgonomic tab for easy removalSizes to fit 3/16 in to 1 1/8 in diameters
Manufacturing Notes 0

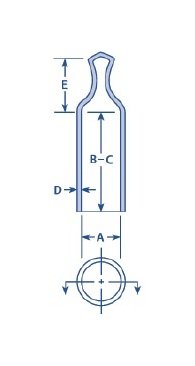

'D' dimension varies by size.Wall thickness is measured approximate 1/4 in (6.35 mm) from open end. Wall thickness increases slightly towards the closed end of the part.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic pull tab caps are often used as inexpensive and disposable single use masking caps for painting and coating processes under 300 °F.
Specifications Box Quantity
2652
Specifications Inside Diameter Dimension A
0.655 in | 16.6 mm
Specifications Manufacturing Process
Dip Molded
Specifications Material
Vinyl
Specifications Maximum Inside Length Dimension C
1.500 in | 38.1 mm
Specifications Micro Pack Quantity
54
Specifications Minimum Inside Length Dimension B
0.250 in | 6.4 mm
Specifications Mini Pack Quantity
531
Specifications Standards
RoHS Compliant
Specifications Stocked Length
1 in
Specifications Tab Height Dimension E
0.812 in | 20.6 mm
Specifications Wall Thickness Dimension D
0.060 in | 1.5 mm
