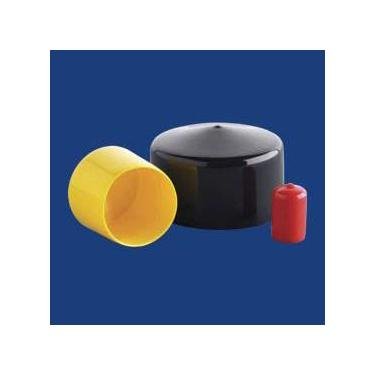

Vinyl Round Cap Protector
Vinyl Round Cap Protector
SKU:ROU-76bc40
Protect and enhance your product line with our versatile Vinyl Round Cap Protector, ideal for a range of consumer and industrial applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Vinyl Round Cap Protector
$12.99
Quantity: 1
Claim Your Seller Account
Vinyl Round Cap Protector
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your product line's durability and aesthetics with the Vinyl Round Cap Protector. Designed to fit 7/16 to 20 in standard thread size and 1/8 in NPT thread size, this cap offers reliable protection with its 0.055 in wall thickness. Perfect for masking applications under 300°F during painting and coating processes, it is a cost-effective solution for industrial and consumer products alike. Available in various colors to suit your brand image, this cap is manufactured with precision using the dip molding process. Stocked in multiple sizes for immediate dispatch or customizable orders, ensure your products are safeguarded during assembly and transportation. Consider complementary finishing and appearance products from MOCAP for a comprehensive solution.
Product Specifications
Features 0
MOCAP round vinyl plastic caps are available in sizes from 0.062 in to 6.00 in diameter.
Finishing And Appearance 0
MOCAP can dip mold round vinyl plastic caps in virtually any color to compliment your product as a finishing cap visible to end users. Consider MOCAP's other finishing and appearance Products.
Manufacturing Notes 0
Round Plastic Caps are stocked in many sizes, ready for immediate shipment or MOCAP can manufacture vinyl plastic caps to-order with the fastest lead-times in the industry.PMS or special color matching available if our standard color options do not meet your needs.Stocked Parts are in General Purpose 9500-002 Black Material, with some available in our General Purpose 9500-011 Red Material. See the size chart above for stock offerings.Box Quantities may vary on items which are available in multiple lengths. Use MOCAP vinyl plastic caps as durable and inexpensive caps to protect your product threads or surfaces during assembly or shipping. Review all of MOCAP's products.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic caps are often used as inexpensive and disposable single-use masking caps for painting and coating processes under 300 °F. For high temperature masking greater than 300 °F, consider MOCAP's High Temperature Vinyl or EPDM Masking Products good to 475 °F, or MOCAP Silicone Masking Products good to over 600 °F.
Specifications Box Quantity
5280

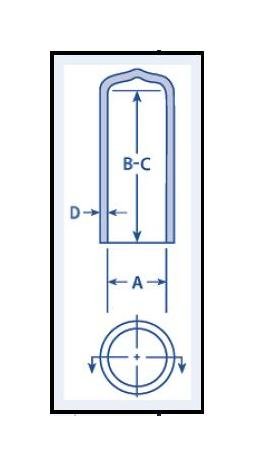

Specifications Inside Diameter Dimension A
0.406 in | 10.3 mm
Specifications Manufacturing Process
Dip Molded
Specifications Maximum Inside Length Dimension C
1.500 in | 38.1 mm
Specifications Micro Pack Quantity
106
Specifications Minimum Inside Length Dimension B
0.188 in | 4.8 mm
Specifications Mini Pack Quantity
1056
Specifications Stocked Length
0.5 in
Specifications To Fit Npt Thread Size
1/8 in
Specifications To Fit Standard Thread Size
7/16 to 20 in
Specifications Wall Thickness Dimension D
0.055 in | 1.4 mm
