Vinyl Round Cap - Thread Size 7/16 to 20 in, M12 Metric
Vinyl Round Cap - Thread Size 7/16 to 20 in, M12 Metric
SKU:ROU-29a152
Enhance your product appearance and protection with customizable Vinyl Round Caps from MOCAP.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Vinyl Round Cap - Thread Size 7/16 to 20 in, M12 Metric
$14.99
Quantity: 1
Claim Your Seller Account
Vinyl Round Cap - Thread Size 7/16 to 20 in, M12 Metric
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

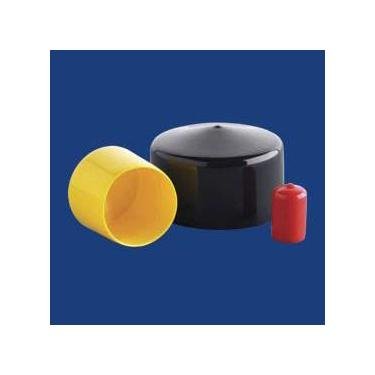

Enhance the appearance and protection of your products with MOCAP Vinyl Round Caps. Available in various lengths, colors, and durometers, these round caps are perfect for end caps, pipe caps, and tube caps. Made through a precise vinyl dip molding process, they offer flexibility and durability, ideal for painting and coating masking applications. With no additional tooling charge, MOCAP can customize these caps to fit your unique requirements, making them a cost-effective solution for your assembly or shipping needs.
Product Specifications
Features 0
MOCAP round vinyl plastic caps are available in sizes from 0.062 in to 6.00 in diameter.
Finishing And Appearance 0
MOCAP can dip mold round vinyl plastic caps in virtually any color to compliment your product as a finishing cap visible to end users. Consider MOCAP's other finishing and appearance Products.
Manufacturing Notes 0
Round Plastic Caps are stocked in many sizes, ready for immediate shipment or MOCAP can manufacture vinyl plastic caps to-order with the fastest lead-times in the industry.PMS or special color matching available if our standard color options do not meet your needs.Stocked Parts are in General Purpose 9500-002 Black Material, with some available in our General Purpose 9500-011 Red Material. See the size chart above for stock offerings.Box Quantities may vary on items which are available in multiple lengths. Use MOCAP vinyl plastic caps as durable and inexpensive caps to protect your product threads or surfaces during assembly or shipping. Review all of MOCAP's products.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic caps are often used as inexpensive and disposable single-use masking caps for painting and coating processes under 300 °F. For high temperature masking greater than 300 °F, consider MOCAP's High Temperature Vinyl or EPDM Masking Products good to 475 °F, or MOCAP Silicone Masking Products good to over 600 °F.
Specifications Box Quantity
2520 to 2520

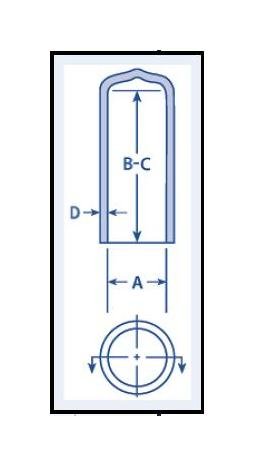

Specifications Inside Diameter Dimension A
0.437 in | 11.1 mm
Specifications Manufacturing Process
Dip Molded
Specifications Maximum Inside Length Dimension C
1.500 in | 38.1 mm
Specifications Micro Pack Quantity
51 to 101
Specifications Minimum Inside Length Dimension B
0.188 in | 4.8 mm
Specifications Mini Pack Quantity
504 to 1008
Specifications Stocked Length
0.5 in | 1 in | 1.5 in
Specifications To Fit Metric Thread Size
M12
Specifications To Fit Standard Thread Size
7/16 to 20 in
Specifications Wall Thickness Dimension D
0.055 in | 1.4 mm
