Vinyl Round Pipe End Cap
Vinyl Round Pipe End Cap
SKU:ROU-cb08cf
MOCAP Vinyl Round Pipe End Cap provides durable protection and a quality finish for consumer and industrial products.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Vinyl Round Pipe End Cap
$12.99
Quantity: 1
Claim Your Seller Account
Vinyl Round Pipe End Cap
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

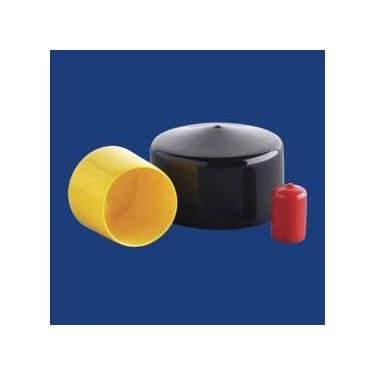

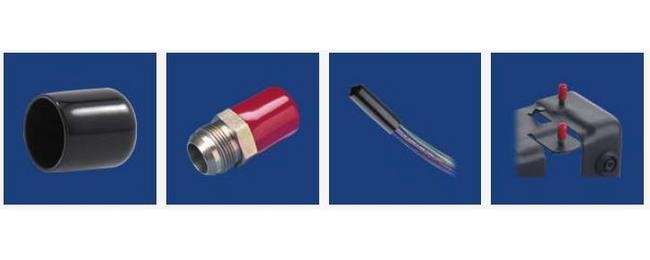

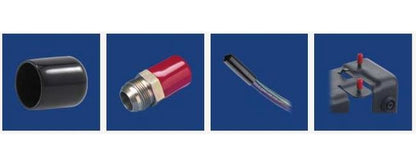

The Vinyl Round Pipe End Cap by MOCAP is a versatile solution for adding a quality finish and durable protection to consumer and industrial products. These vinyl caps are flexible and pliable, offering tough protection for your valuable product line. Available in various lengths, wall thicknesses, hardness options, and colors, these caps are ideal for applications such as end caps, pipe caps, and tube caps. MOCAP's vinyl dip molding process ensures customization without additional tooling charges, making these caps an affordable and reliable choice for your product finishing needs.
Product Specifications
Features 0
MOCAP round vinyl plastic caps are available in sizes from 0.062 in to 6.00 in diameter.
Finishing And Appearance 0
MOCAP can dip mold round vinyl plastic caps in virtually any color to compliment your product as a finishing cap visible to end users. Consider MOCAP's other finishing and appearance Products.
Manufacturing Notes 0
Round Plastic Caps are stocked in many sizes, ready for immediate shipment or MOCAP can manufacture vinyl plastic caps to-order with the fastest lead-times in the industry.PMS or special color matching available if our standard color options do not meet your needs.Stocked Parts are in General Purpose 9500-002 Black Material, with some available in our General Purpose 9500-011 Red Material. See the size chart above for stock offerings.Box Quantities may vary on items which are available in multiple lengths. Use MOCAP vinyl plastic caps as durable and inexpensive caps to protect your product threads or surfaces during assembly or shipping. Review all of MOCAP's products.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic caps are often used as inexpensive and disposable single-use masking caps for painting and coating processes under 300 °F. For high temperature masking greater than 300 °F, consider MOCAP's High Temperature Vinyl or EPDM Masking Products good to 475 °F, or MOCAP Silicone Masking Products good to over 600 °F.
Specifications Box Quantity
528

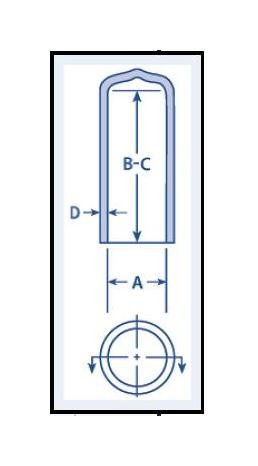

Specifications Inside Diameter Dimension A
1.625 in | 41.3 mm
Specifications Manufacturing Process
Dip Molded
Specifications Maximum Inside Length Dimension C
1.500 in | 38.1 mm
Specifications Micro Pack Quantity
10
Specifications Minimum Inside Length Dimension B
0.250 in | 6.4 mm
Specifications Mini Pack Quantity
100
Specifications Stocked Length
1.5 in
Specifications To Fit Metric Thread Size
M42
Specifications To Fit Npt Thread Size
1 1/4 in
Specifications To Fit Standard Thread Size
1 11/16 to 12 in
Specifications Wall Thickness Dimension D
0.060 in | 1.5 mm
