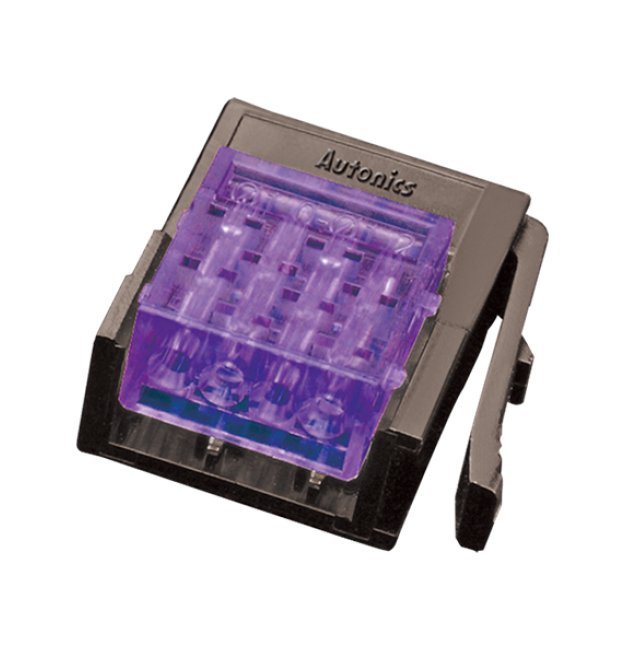

Violet 4-Pin Wire Mount Plug Connector
Violet 4-Pin Wire Mount Plug Connector
SKU:PRO-56cf8e
Reliable Violet 4-pin wire mount plug connector for secure connectivity in diverse applications.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Violet 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Violet 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Violet 4-pin wire mount plug connector is a top-of-the-line solution for your connectivity needs. With a maximum AC/DC voltage of ~250V and a maximum rated current of 3.0A, this sensor connector ensures reliable performance in various applications. Made with high-quality C5210 gold terminals and Polycarbonate/ABS body material, it guarantees durability and safety. This connector meets stringent industry standards and is perfect for both consumer and institutional buyers requiring precision and efficiency.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Violet
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Violet
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.05 to 0.08 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.05 to 0.08 mm²
Specifications Wire Size
30-28 AWG
